Product catalog summary
Overview: This document provides detailed information on Sichelschmidt's range of electric pedestrian stackers designed for use in explosion hazardous environments, specifically Zone 2/22. The stackers are engineered for efficient material handling in narrow warehouse and production aisles.
Specifications:
  • d 400 EEx Z2/22: Compact design for loads up to 2000kg, suitable for Euro pallets and containers in 3G/3D explosion hazardous environments.
  • d 100 EEx Z2/22: Ideal for horizontal transportation, capable of lifting 2500kg, with a low tare weight.
  • d 1200 EEx: Versatile reach stacker with high load capacities and lifting heights, suitable for various applications.
  • d 500 EEx Z2/22: Designed for non-standard loads and GMA pallets, with wide base-legs for handling low under-clearance loads.
Technology and Benefits: All trucks are powered by electric three-phase ASM-AC motor technology, offering benefits such as reduced maintenance costs, improved uptime, increased productivity, reduced energy consumption, and programmable driving characteristics.
Safety and Certification: Sichelschmidt's equipment is tested and certified by TUV Nord CERT GmbH & Co. KG for use in explosion hazardous areas. For North America, NRTL approved EE rated equipment is available for specific hazardous areas.
Options: The d 100 and d 400 models can be equipped with a fold-down or fixed rider platform, allowing travel speeds up to 10 km/h as a rider truck and 6 km/h in pedestrian mode. The d 400 EEx B option includes a base lift for handling bumps, ramps, and slopes.
Contact Information: Sichelschmidt GmbH, Im Hilingschen 32, D-58300 Wetter, Germany. Phone: +49 (0) 23 35 - 63 09 - 0, Fax: +49 (0) 23 35 - 63 09 - 88, Website: www.sichelschmidt.de, Email: [email protected]
See more

Catalog excerpts

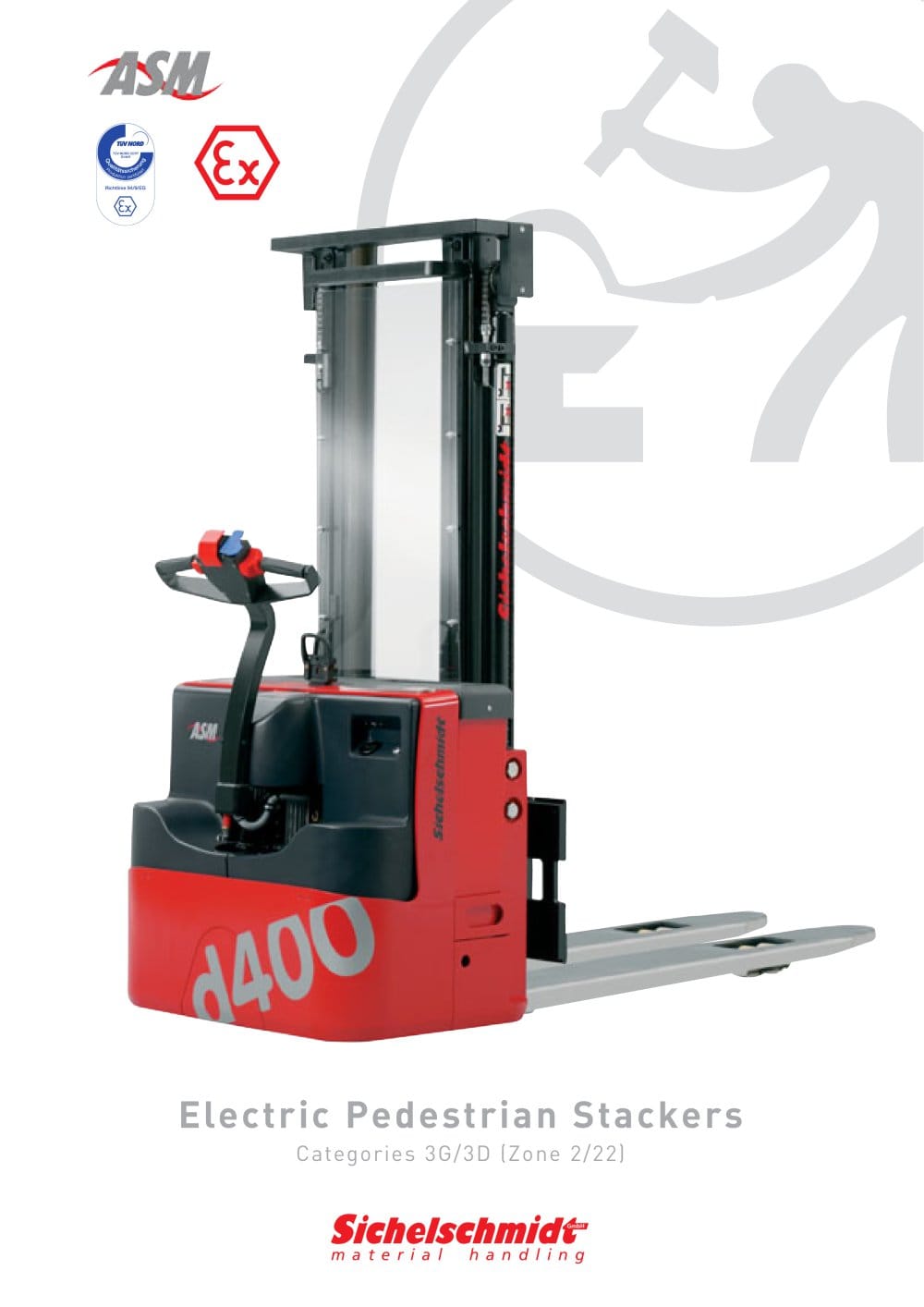

Explosion proof electric pedestrian stackers- Zone 1-1

Electric Pedestrian Stackers Categories 3G/3D (Zone 2/22)

 Open the catalog to page 1
Explosion proof electric pedestrian stackers- Zone 1-2

It's better to be safe than sorry! Explosion proof industrial forklift trucks from Sichelschmidt are up to every task. Our trucks are specifically designed and built for these demanding and volatile areas of application. All Sichelschmidt Zone 2/22 equipment is tested and certified according to strict guidelines for the use of electrical equipment in category 3G/3D explosion hazardous areas by TUV Nord CERT GmbH & Co. KG. For the North American market, Sichelschmidt offers NRTL approved EE rated equipment for Class 1, Division 2, Group D and Class 2, Division 2, Group G explosion hazardous areas. All...

 Open the catalog to page 2
Explosion proof electric pedestrian stackers- Zone 1-3

Option d 400 EEx B Bumps, loading ramps, slopes - A Sichelschmidt d 400 EEx Z2/22 with optional base lift handles them all with ease. Electric Pedestrian With its wide base-legs, the d 500 EEx Z2/22 is designed for handling non-standard loads and GMA (US) pallets. The base legs straddle the load while standard hook type forks enter the load. By using hook type forks you can easily handle loads with a low under-clearance. The d 500 EEx Z2/22 is the ideal base unit for applications that require the use of forklift attachments Electric Pedestrian Reach Stacker d1200 EEx The pedestrian reach truck...

 Open the catalog to page 3
