4-wheel explosion proof electric forklift truck M 700-4 EEx Zone 2

Product catalog summary

Overview: The document provides detailed information about the Electric Counterbalance Trucks, specifically the M 700 EEx and M 700-4 EEx models, designed for use in explosion hazardous areas. These trucks are manufactured by Sichelschmidt and are certified for safety and performance in such environments.

Specifications:

M 700 EEx: A 3-wheel design offering high maneuverability with a short wheelbase and rear-wheel drive. It supports up to 2000 kg capacity and a lifting height of up to 5150 mm. It is suitable for production and warehouse facilities.
M 700-4 EEx: A 4-wheel design providing stability and safety. It offers capacities ranging from 1,250 to 3,500 kg and a maximum fork height of 5,900 mm. It features 80V ASM motors for enhanced performance and battery life.

Safety and Certification: Both models are explosion-proof and certified by the German Institute for Physics and Technology and TUV Nord CERT GmbH & Co. KG for use in hazardous areas. They include features like anti-corrosive protection for offshore applications.

Technology and Performance: The trucks are powered by electric three-phase ASM-AC motor technology, which provides benefits such as reduced maintenance costs, improved uptime, increased productivity, and reduced energy consumption. The driving characteristics are fully programmable.

Operator Comfort: The operator compartments are ergonomically designed for comfort and safety, minimizing fatigue. The clear view mast design enhances visibility.

Additional Features: Optional features include an offshore protection package with anti-corrosive elements, an all-weather cabin, and a cold storage package for extreme environments.

Catalog excerpts

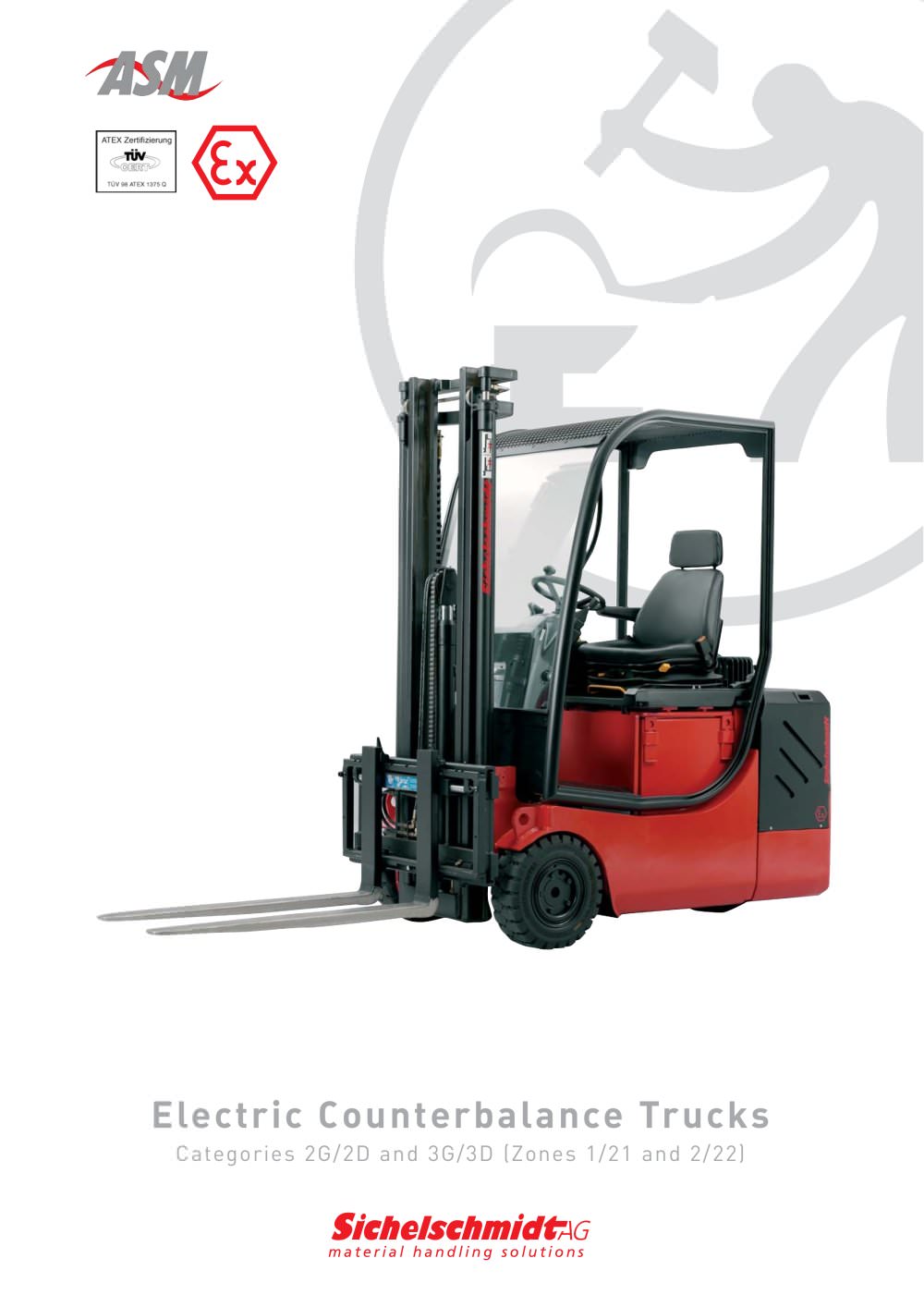

4-wheel explosion proof electric forklift truck M 700-4 EEx Zone 2 -2

Explosion proof industrial forklift trucks from Sichelschmidt are up to every task. Our trucks are spe- cifically designed and built for these demanding and volatile areas of application. All Sichelschmidtequipment is tested and certified according to strict guidelines for the use of electrical equipment incategories 2G/2D explosion hazardous areas by the German Institute for Physics and Technology (PTB),Braunschweig and by TUV Nord CERT GmbH & Co. KG, Hanover for 3G/3D explosion hazardous areas.Our Electric Counterbalance Trucks are extremely compact and they are designed for high usageapplications....

Open the catalog to page 2

4-wheel explosion proof electric forklift truck M 700-4 EEx Zone 2 -3

Electric 4-Wheel Counterbalance TruckM 700-4 EEx The M 700-4EEx is a true work-horse. With its 4-wheel design itis very stable and safe to drive.The M 700-4EEx comes in six dif-ferent capacities ranging from1,250 to 3,500 kg. In addition tothese capacities the customer can choose from a range of duplex andtriplex mast sizes with a maxi-mum fork elevated height of up to5,900 mm. The 80V ASM motorsoffer exceptional performance, extended battery life betweencharging cycles and reduceddowntime. Offshore: Forklifts used in the offs-hore sector have to meet extreme-ly stringent requirements. For these...

Open the catalog to page 3
