Ultra-rapid fuses, DC (URDC)

Product catalog summary
Overview
SIBA provides a comprehensive range of DC application traction fuses tailored for heavy-duty applications such as traction, battery, and railway power circuits. These fuses are available in classes aR, gR, and gRL, with voltage ratings from DC 440 V to DC 4200 V and current ratings from 6 A to 1000 A. They adhere to standards including UIC 550, IEC 60269-4, IEC 60077-5, and VDE 0636-40.
Specifications
  • Voltage Ratings: DC 440 V to DC 4200 V
  • Current Ratings: 6 A to 1000 A
  • Standards: UIC 550, IEC 60269-4, IEC 60077-5, VDE 0636-40
  • Design: Suitable for heavy-duty applications, shock and vibration tested to 30 g, available with microswitches, customizable to customer specifications, tested with various time constants
Features and Benefits
  • Long lifespan under severe service conditions
  • Available in clip-mounted and bolt-design
Selection Guide
The document includes a detailed selection guide for fuse-links, fuse-holders, micro switches, and fuse-clips, with part numbers, rated voltages, and technical data pages.
Technical Data
Detailed technical data is provided for various fuse sizes, including rated voltage, breaking test voltage, class, standard, rated breaking capacity, power loss, pre-arcing, and total l2t-value.
Dimensions
Dimensions for different fuse sizes are specified, including configurations with and without strikers.
Time-Current Characteristics
Time-current characteristics are detailed for various fuse sizes, providing information on virtual pre-arcing time and RMS prospective current.
Applications
These fuses are designed for use in traction, battery, and railway power circuits, capable of withstanding heavy-duty conditions and ensuring reliable performance.
Fuse Models
  • SQB-DC90: Rated currents from 50 A to 160 A
  • SQB-DC91: Rated currents from 160 A to 250 A
  • SQB-DC92: Rated currents from 250 A to 400 A
  • SQB-DC93: Rated currents from 450 A to 700 A
  • SQB-DC93-2: Rated currents from 900 A to 1400 A
Electrical Characteristics
  • Includes power loss, pre-arcing, and total l2t-values at DC 1000 V with L/R = 10 ms
  • Time-current characteristics for heavy-duty applications
Additional Features
  • Some fuses are suitable for B-switch fitting and available with or without MS-Adapters
  • Fuses available with indicators or strikers for specific models
Additional Specifications
  • Size: 22 x 58 mm
  • Part Numbers: Various configurations including micro switch options
  • Power Acceptance: 12 W
  • Rated Voltage: ZS-Modul AC 690 V
Fuse Specifications
  • Fuse-Holder: For fuse-links with cylindrical contact caps
  • Rated Current: 63 A
  • Part Number: 91 080 01
  • Rated Power Acceptance: 15 W
  • Maximum Connecting Cable: 50 mm²
  • Tightening Torque: 10 Nm
  • Weight: 1 kg
Standards and Dimensions
  • Size: 20 x 127 mm
  • Rated Voltage: 1500 V
  • Standards: IEC 60947: AC20B, DC20B; IEC 60269; IP 20
Additional Information
Website: www.siba.de
See more

Catalog excerpts

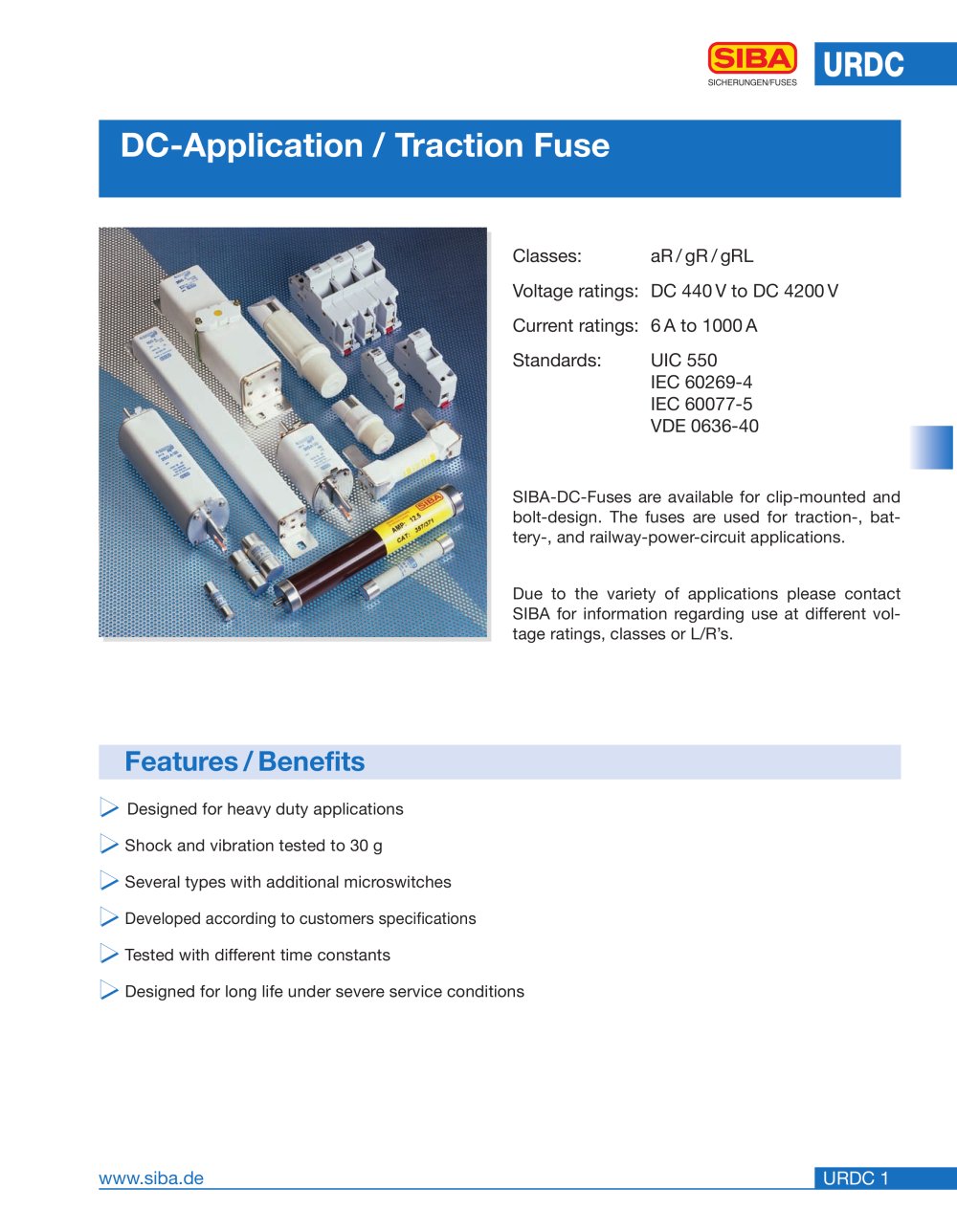

Ultra-rapid fuses, DC (URDC)-1
