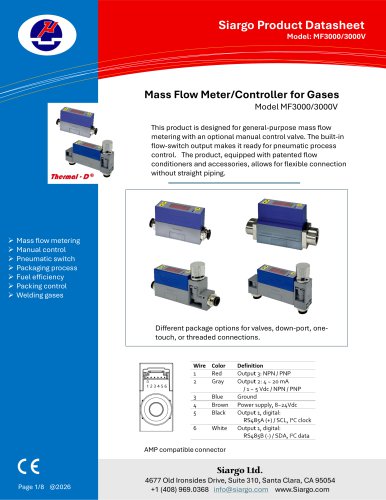

Mass Flow Meter/Controller for GasesModel MF3000/3000V This product is designed for general-purpose mass flow metering with an optional manual control valve. The built-in flow-switch output makes it ready for pneumatic process control. The product, equipped with patented flow conditioners and accessories, allows for flexible connection without straight piping. > Mass flow metering Different package options for valves, down-port, one-touch, or threaded connections. Wire Color Definition 4 Brown Power supply, 8~24Vdc 5 Black Output i, digital: 6 White Output 1, digital: Siargo Ltd. 4677 Old Ironsides Drive, Suite 310, Santa Clara, CA 95054 +1 (408) 969.0368 [email protected] www.Siargo.com

Siargo Product Datasheet Model: MF3000/3000V Full-scale flow range MF3000M, MF3000S (air, N2, O2 and Ar) > Mass flow metering Working pressure Response time Filter depth Power supply Output 1 (Digital output) Output 2_ Electrical connector Mechanical connection 2 to 50 SIPM: BSPT 1/4”-M, 4mm / 6mm / 8mm one-touch, or L connectors 100. 200 SIPM: BSPT 1/4”-male, 8 mm One touch or L connectors 500, 1000, 1500SLPM: BSPT 1/2”-female Fluid compatibility *All specifications listed in the following table, unless otherwise noted, apply for calibration conditions at 0 °C and 101.325 kPa absolute pressure...

Siargo Product Datasheet Model: MF3000/3000V > Mass flow metering MF3000M (with display) dimensions: MF3000M (with display) dimensions: 4mm/6mm/8mm One-touch connectors, full scale of 2, 5, 10, 20, and 50 SLPM; 8mm One-touch connectors, full scale of 100-200 SLPM. 4677 Old Ironsides Drive, Suite 310, Santa Clara, CA 95054 +1 (408) 969.0368 [email protected] www.Siargo.com

Siargo Product Datasheet Mechanical dimensions Mass flow metering Manual control Pneumatic switch Packaging process Fuel efficiency Packing control Welding gases MF3000M (with display) dimensions: L connectors, full-scale of 2, 5, 10, 20, 50, 100, and 200 SLPM. MF3000M (with display) dimensions, full-scale of 500, 1000, and 1500 SLPM. 4677 Old Ironsides Drive, Suite 310, Santa Clara, CA 95054 +1 (408) 969.0368 [email protected] www

Siargo Product Datasheet Mechanical dimensions Mass flow metering Manual control Pneumatic switch Packaging process Fuel efficiency Packing control Welding gases MF3000V (manual valve) with O8 connectors dimensions, fullscale of 50, 100, and 200 SLPM. MF3000V (manual valve) with OL8 connectors dimensions, full-scale of 50, 100, and 200 SLPM. 4677 Old Ironsides Drive, Suite 310, Santa Clara, CA 95054 +1 (408) 969.0368 [email protected] www

The product part number consists of the product model number and suffixes indicating the full-scale flow rate, as well as other parameters. Referto the following for details. for other gases, please contact the manufacturer.) > Mass flow metering Output 3 (N-NPN, P - PNP; Z - null.) Output 2 (A-analog 4.~2omA; V-analog 1- 5 Vdc; N-NPN; P-PNP.) Output 1 (Digital output: B - RS485; E - PC) O4/O6/O8 - 4mm/6mm/8 mm One-touch connector; L - L connectors; 08-8 mm One-touch connector; L - L connectors, goo, 1000, icoo SLPM models: OL8-8 mm One-touch L-Sharp connector. Maximum full-scale flow rate (MF3000M...

Siargo Product Datasheet Product selection and order Mass flow metering Manual control Pneumatic switch Packaging process Fuel efficiency Packing control Welding gases 4677 Old Ironsides Drive, Suite 310, Santa Clara, CA 95054 +1 (408) 969.0368 [email protected] www

> Mass flow metering For example, "MF3000M-200-O8-BVN-A" stands forthe product has a display, 0-200 SLPM, 8 mm One-touch connectors, RS485 Modbus digital output, analog 1-5 Vdc, and an NPN. It is applicable for air, nitrogen, oxygen, and argon. "MF3000S-500-R-EPP-C" is a model without a display, 0-500 SLPM, with BSPT1/2"- female connectors, PC digital output, and dual PNP. It applies to CO2. "MF3000V-100-OL8-ENN-A" is a model with a display and manual valve, o~ioo SLPM, with 8 mm One-touch L-Sharp connectors, PC digital output, and dual NPN. It applies to air, nitrogen, oxygen, and argon. 4677...
