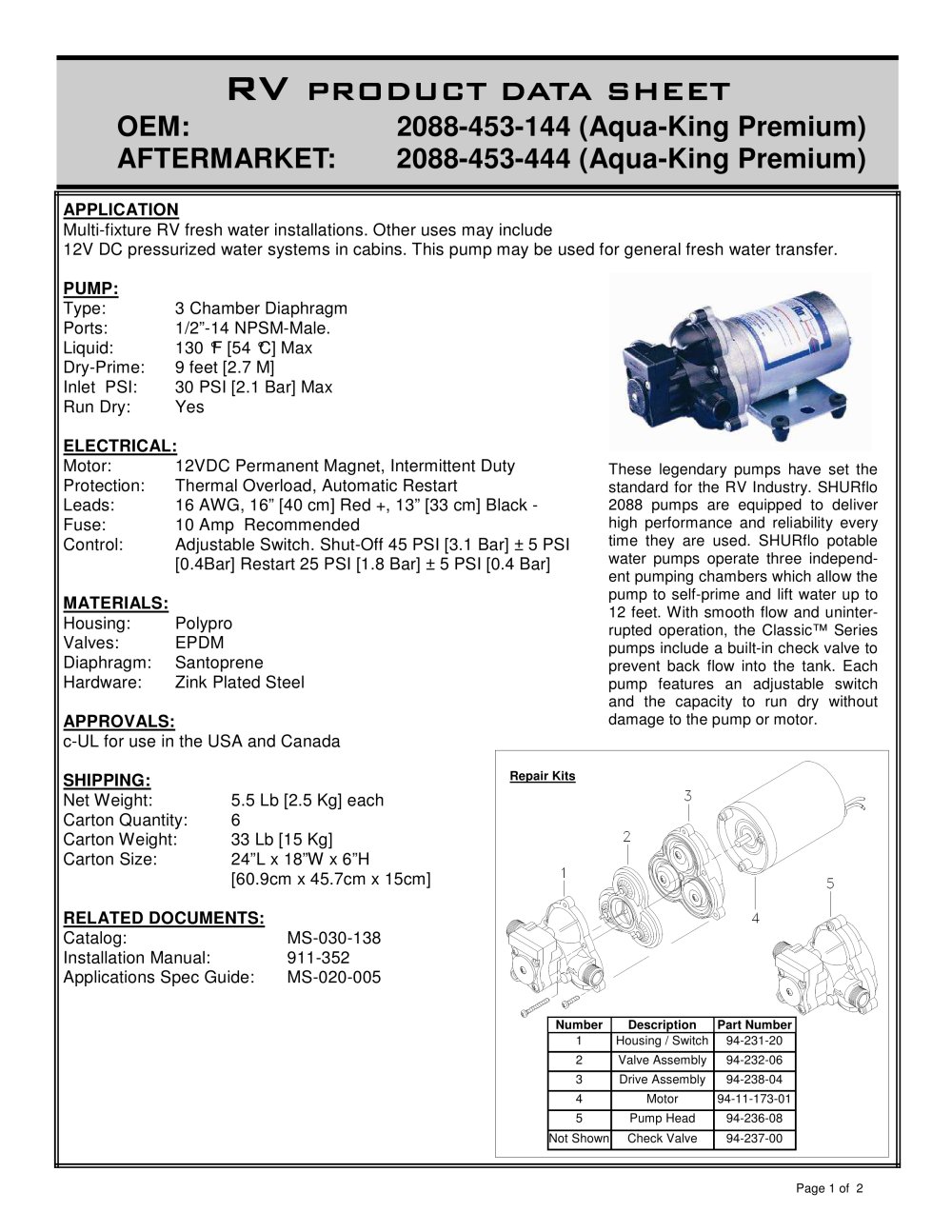

Premium Plus Pump: 3.5 GPM [12.5 LPM]
2Pages

Multi-fixture RV potable water installations. Other uses may include 12 VDC pressurized water systems in cabins. This pump may be used for general water transfer. For other applications, contact SHURflo. > Type 3 Chamber Diaphragm Ports 1/2-14 NPSM-Male Liquid 130 ԰F [54 C] Max Prime 9 feet [2.7 M] Inlet PSI 30 PSI [2.1 Bar] Max Run Dry Yes > Motor 12VDC Permanent Magnet, Intermittent Duty Protection Thermal Overload, Automatic Restart Leads 16 AWG, 16Д [40 cm] Red +, 13 [33 cm] Black ---- Fuse 10 Amp Time Delay Recommended Control Adjustable Switch with Check Valve Shut-Off 45 PSI [3.1 Bar] 5 PSI [0.4 Bar] Restart 25 PSI [1.8 Bar] 5 PSI [0.4 Bar] > Housing Polypropylene Valves EPDM Diaphragm Santoprene Hardware Zinc Plated Steel > 2 Year Limited Warranty See SB-1041 For Full Warranty Details > Net Weight (Boxed) 5 Lb [2.3Kg] each Carton Weight 12 each, 52 Lb [24 Kg] Carton Size 24ԔL x 18W x 11ԔH [61cm x 46cm x 28cm] > Number Component Parts Kit 1 Housing/Switch 94-231-20 2 Valve Assembly 94-232-06 3 Drive Assembly 94-238-04 4 Motor 11-173-01 Catalog MS-030-083 Installation Manual 911-352 Maintenance 911-352 Applications Spec Guide MS-020-005 Warranty SB-1041 > 5 Pump Head 94-236-08 Not Shown Check Valve 94-237-00 size="-1">

PRODUCT SHEET OEM: 2088-453-144 Aftermarket: 2088-453-444 Typical Performance @ 12 VDC PRESSURE FLOW CURRENT BAR PSI GPM LPM AMPS > 0.0 0 3.5 13.2 3.8 0.7 10 2.6 9.8 4.6 1.4 20 2.2 8.3 4.9 2.1 30 1.7 6.4 5.0 2.8 40 1.0 3.7 4.8 FLOW AMPS AMPS FLOW, GPM 0.00.51.01.52.02.53.03.54.0 010203040 0.01.0 2.03.04.05.06.0 PRESSURE, PSI Typical Dimensions > * ISO Registered Facility SHURflo reserves the right to update specifications, prices, or make substitutions. SHURflo SHURflo East SHURflo Ltd. 12650 Westminster Ave. Santa Ana, CA 92706-2100 (800) 854-3218 (714) 554-7709 FAX (714) 554-4721 52748...
