General Purpose Pumps Oil Change System

General Purpose Pumps Oil Change System
2Pages

Catalog excerpts

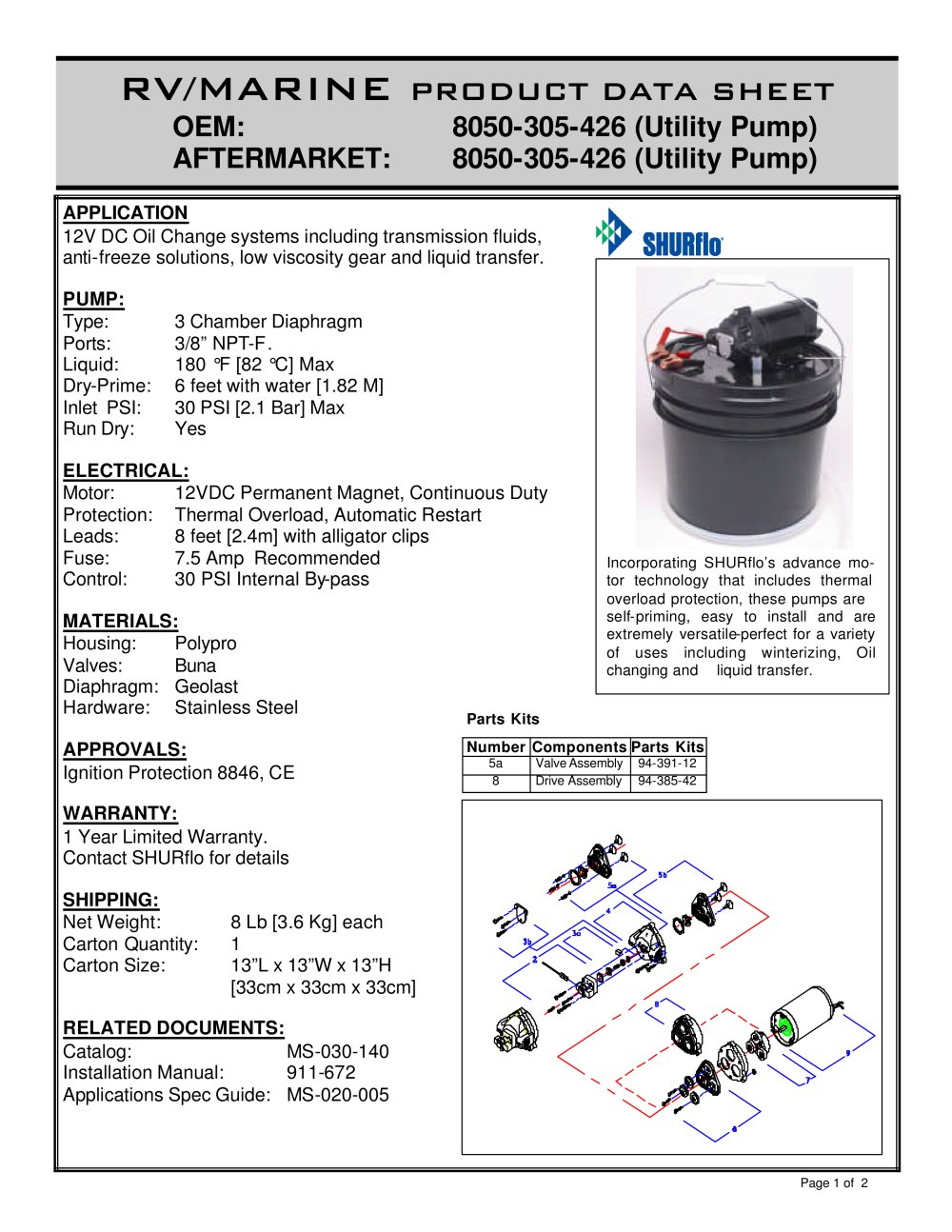

General Purpose Pumps Oil Change System - 1

PUMP OEM 8050-305-426 AFTERMARKET 8050-305-426 Oil Changer TYPICAL APPLICATIONS Oil change system. Other uses may include 12 VDC pressurized water systems, winterizing and liquid transfer. For other applications, contact SHURflo. ELECTRICAL Type: 3 Chamber Diaphragm Ports: 3/8 NPT-Female Liquid: 130 ԰F [54 C] Max Prime: 6 feet [1.82 M] Inlet PSI: 30 PSI [2.1 Bar] Max Run Dry: Yes Motor: 12VDC Permanent Magnet, Continuous Duty Protection: Thermal Overload Leads: 8 feet with alligator clips Fuse: 7.5 Amp Recommended Control: 30 PSI Internal By-Pass (No External Control) MATERIALS Housing: Polypropylene Valves: Buna Diaphragm: Geolast 87 Shore Hardware: Stainless Steel APPROVALS Parts Kits c-UL Marine, Ignition Protected, ISO 8846 WARRANTY 1 Year Limited Warranty See SB-1041 & SB-1050 For Full Warranty Details SHIPPING Net Weight (Boxed): 8 Lb [3.6 Kg] each Carton Weight: 1 each, 8 Lb [3.6 Kg] Carton Size: 13ДL x 13W x 13ԔH [33 cm x 33 cm x 33 cm] RELATED DOCUMENTS Number Components Parts Kits Catalog: MS-030-084 Installation Manual: 911-672 Maintenance: 911-672 Applications Spec Guide: MS-020-005 Warranty: SB-1041 / SB-1050 > 9 Motor Call SHURflo 5a Valve Assembly 94-390-27 8 Drive Assembly 94-385-42 PDS 8050-305-426 Rev. 6/05 April 2004 >

Open the catalog to page 1
