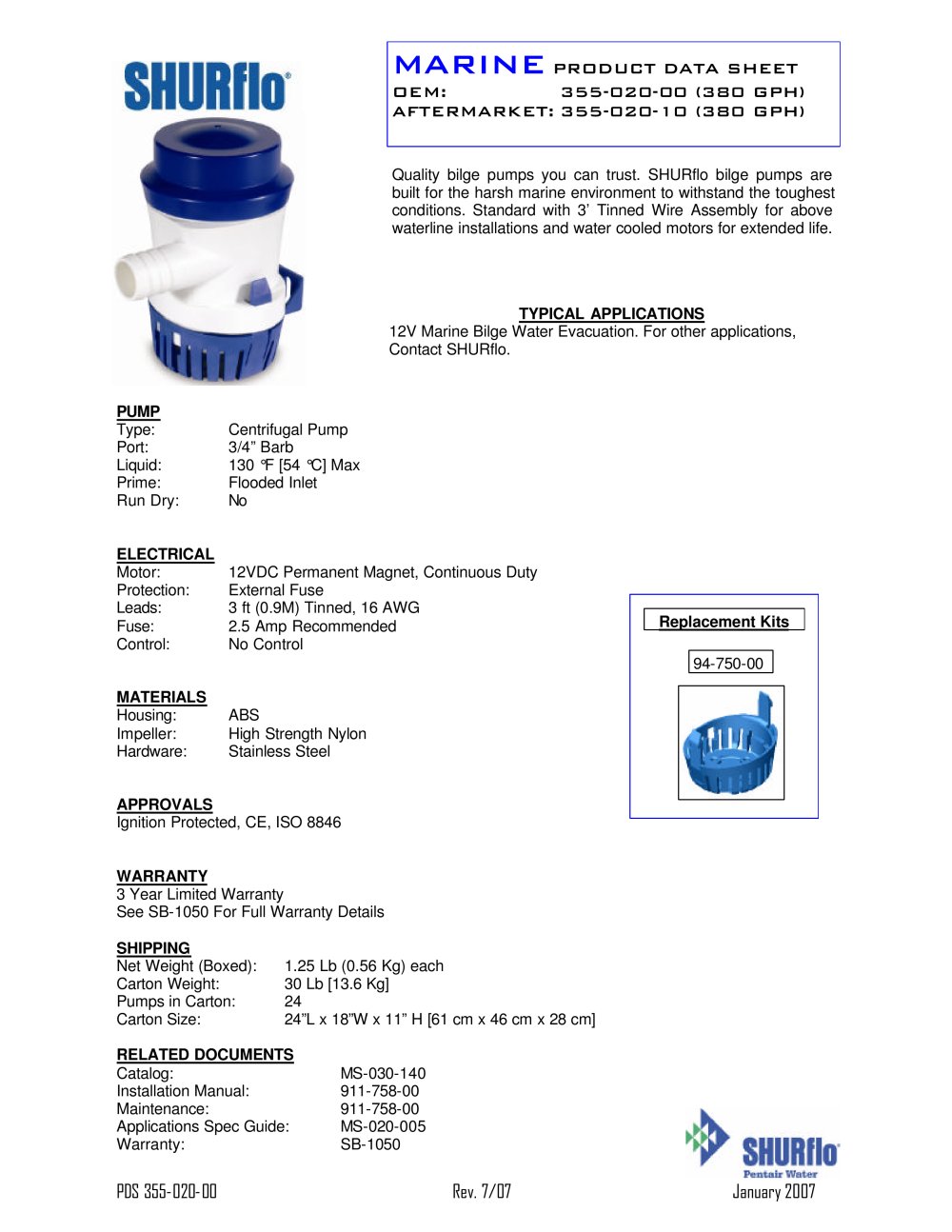

Commercial Bilge Pumps 380 Bilge Pump (12 VDC) 380 GPH

Product catalog summary

Pump Specifications:
Type: Centrifugal Pump
Port: 3/4” Barb
Maximum Liquid Temperature: 130 °F (54 °C)
Prime: Flooded Inlet
Run Dry Capability: No

Electrical Specifications:
Motor: 12VDC Permanent Magnet, Continuous Duty
Protection: External Fuse
Leads: 3 ft (0.9M) Tinned, 16 AWG
Recommended Fuse: 2.5 Amp
Control: No Control

Materials:
Housing: ABS
Impeller: High Strength Nylon
Hardware: Stainless Steel

Approvals:
Ignition Protected, CE, ISO 8846

Warranty:
3 Year Limited Warranty (See SB-1050 for details)

Shipping Information:
Net Weight (Boxed): 1.25 Lb (0.56 Kg) each
Carton Weight: 30 Lb (13.6 Kg)
Pumps per Carton: 24
Carton Size: 24”L x 18”W x 11”H (61 cm x 46 cm x 28 cm)

Related Documents:
Catalog: MS-030-140
Installation Manual: 911-758-00
Maintenance: 911-758-00
Applications Spec Guide: MS-020-005
Warranty: SB-1050

Performance at 13.6V DC:

Pressure (Meters)	Feet of Head	GPH	LPH	Amps
0.0	0	424	1604	1.96
1.20	4	303	1146	1.82
2.40	8	147	556	1.60

Company Information:
SHURflo, LLC
5900A Katella Ave., Cypress, Ca. 90630
Phone: 800 854 3218
Fax: 562 795 7554
Website: www.shurflo.com

Typical Applications:
12V Marine Bilge Water Evacuation. For other applications, contact SHURflo.

Catalog excerpts

Commercial Bilge Pumps 380 Bilge Pump (12 VDC) 380 GPH-2

PERFORMANCE @ 13.6V DC PRESSURE FLOW CURRENT METERS FT OF HEAD GPH LPH AMPS 0.0 424 1604 1.96 1.20 4 303 1146 1.82 2.40 8 147 556 1.60 > FLOW AMPS HEAD/LIFT (FT) CURRENT (AMPS) 0.02.0 4.0 6.08.0 150200250300350400450FLOW (GPH) 0.00.5 1.0 1.52.0 DIMENSIONS [mm] * ISO Registered Facility SHURflo reserves the right to update specifications, prices, or make substitutions. SHURflo, LLC*5900A Katella Ave.Cypress, Ca. 90630Phone: 800 854 3218Fax: 562 795 7554Shipping: 5900C Katella Ave.Cypress, Ca. 90630 SHURflo East52748 Park Six CourtElkhart, IN 46514-5427Phone: 800 854 3218 Fax: 574 264 2169Http://www.shurflo.com...
