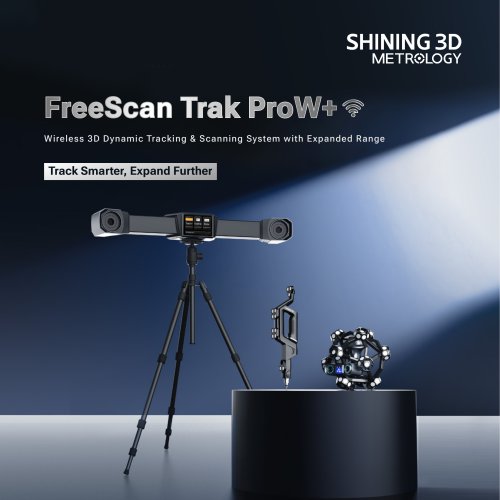

FreeScan Trak ProW+ Wireless 3D Dynamic Tracking & Scanning System with Expanded Range Track Smarter, Expand Further

FreeScan Trak ProW+ FreeScan Trak ProW+ is a wireless large-scale 3D dynamic tracking system designed for efficient single-station measurement of large workpieces. Featuring an innovative embedded edge computing module, it enables fully wireless operation for greater freedom and efficiency. It retains the core advantages of the FreeScan Trak Pro series, including marker-free scanning, high accuracy, stable repeatability, and fast data acquisition. With an single-station tracking range of up to 156 m³, it reduces leapfrog time while ensuring efficient and reliable measurement for large-scale inspection....

Ultra-Wide Measuring Range FreeScan Trak ProW+ features a groundbreaking design with an ultra-long 8.6 m tracking distance and widely expands the single-station tracking volume to 156 m³, significantly reducing the need for leapfrog* during large-scale object scanning. 3.5m *(1) Leapfrog: Refers to the technique of relocating the measuring device to extend its working volume. This involves measuring reference geometries (artifacts) in one position, then repositioning the device and measuring the same reference geometries again. These reference points establish a link between the new device position...

No Markers Needed Fast Paced Scanning The tracker enables real-time scanner recognition and positioning, eliminating the need for reference markers, which enhances scanning efficiency and streamlines the workflow, while ensuring rapid data acquisition with a scanning speed of up to 7,600,000 points per second. 93 Crossed Laser Lines High-speed scan 25 Parallel Laser Lines Detailed scan

Wireless Scanning Wherever You Go Featuring integrated computing and wireless modules, FreeScan Trak ProW+ delivers a truly cable-free scanning experience with real-time data processing and stable wireless transmission. An intuitive built-in display provides instant access to key device information, ensuring efficient, reliable, and seamless scanning wherever the job takes you.

Customized Measurement Solutions FreeScan Trak ProW+ features SHINING 3D's patented video-based photogrammetry, which eliminates the need for coded markers. By integrating photogrammetry technology with a calibration rod, it enables real-time marker verification through video capture. This ensures consistent volumetric accuracy and streamlines the setup process for efficient large-object scanning. SHINING 3D offers flexible, customized solutions to accommodate diverse scanning needs. For instance, it supports a collaborative solution with multiple systems, significantly expanding the scanning...

SHINING3D Inspect delivers a streamlined, modular, and customizable approach to 3D inspection, simplifying workflows from data acquisition to reporting. The software is suitable for dimensional inspection and quality control of components across industries. PTB-certified capability Streamlined inspection workflow Industry-specific modules Customizable, clear reports Get Your Free Trial

FreeProbe Series (Optional) FreeProbe line-up, combined with the FreeScan Trak ProW+, forming a powerful portable probing solution designed for precise, shop-floor measurements. With dynamic tracking and wireless operation design, the system enables free movement of the part, probe, and tracker during measurement and enhances the measurement capabilities for hard-to-reach or non-scannable features. Wireless & Portable Various Probe Tips Deeper Probing Capability Quick Start with Fast Pairing Ergonomic Design Seamless Inspection Software Integration Multi-Function Buttons Easy Grip

Trak Pro Series Case Studies This expansive, CNAS-accredited facility is staffed by expert metrologists and certified to perform a comprehensive range of advanced calibration and testing projects. By rigorously adhering to the strictest international standards (like VDI/VDE and ISO), we ensure every 3D scanner, from R&D to production, is verified for world-class, metrology-grade accuracy. SHINING 3D Enables Long-Range Voyages Inspection and Quality Control of for New-Energy Sailboats with Carbon Fiber Monocoque for Hypercars with FreeScan Trak Pro2 Learn More SHINING 3D’s Diverse Scanning Solutions...

Trak Pro Series Case Studies Volumetric accuracy (based on measuring range) Volumetric accuracy with VPG Passion Meets 3D Scanning Technology, Classic Porsche Reborn Learn More Included (no coded markers required) Included (93 laser lines) Detailed scan Learn More High-speed scan How Pine-Pacific Cut 3D Inspection Time FreeProbe Series (Optional) Scan speed Juliá Automobile x SHINING 3D: When FreeScan Trak ProW+ Included (25 parallel laser lines) Included (1 laser line) Working distance Deep pockets scan Wireless & Wired mode (fiber optic) Output formats Working temperature Working humidity Certifications...

SPECIFICATIONS Accuracy Volumetric accuracy (based on measuring range) Volumetric accuracy with VPG FreeScan Trak ProW FreeProbe Series (Optional) Scan speed Included (no coded markers required) Included (50 laser lines) Included (7 parallel laser lines) Included (1 laser line) Working distance Detailed scan Deep pockets scan Wireless & Wired mode (fiber optic) Output formats Working temperature Working humidity Certifications Acceptance test Recommended computer configuration 10% ~ 90% RH CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX VDI/VDE 2634 Part 3 & ISO 10360 certified (Tested in...
