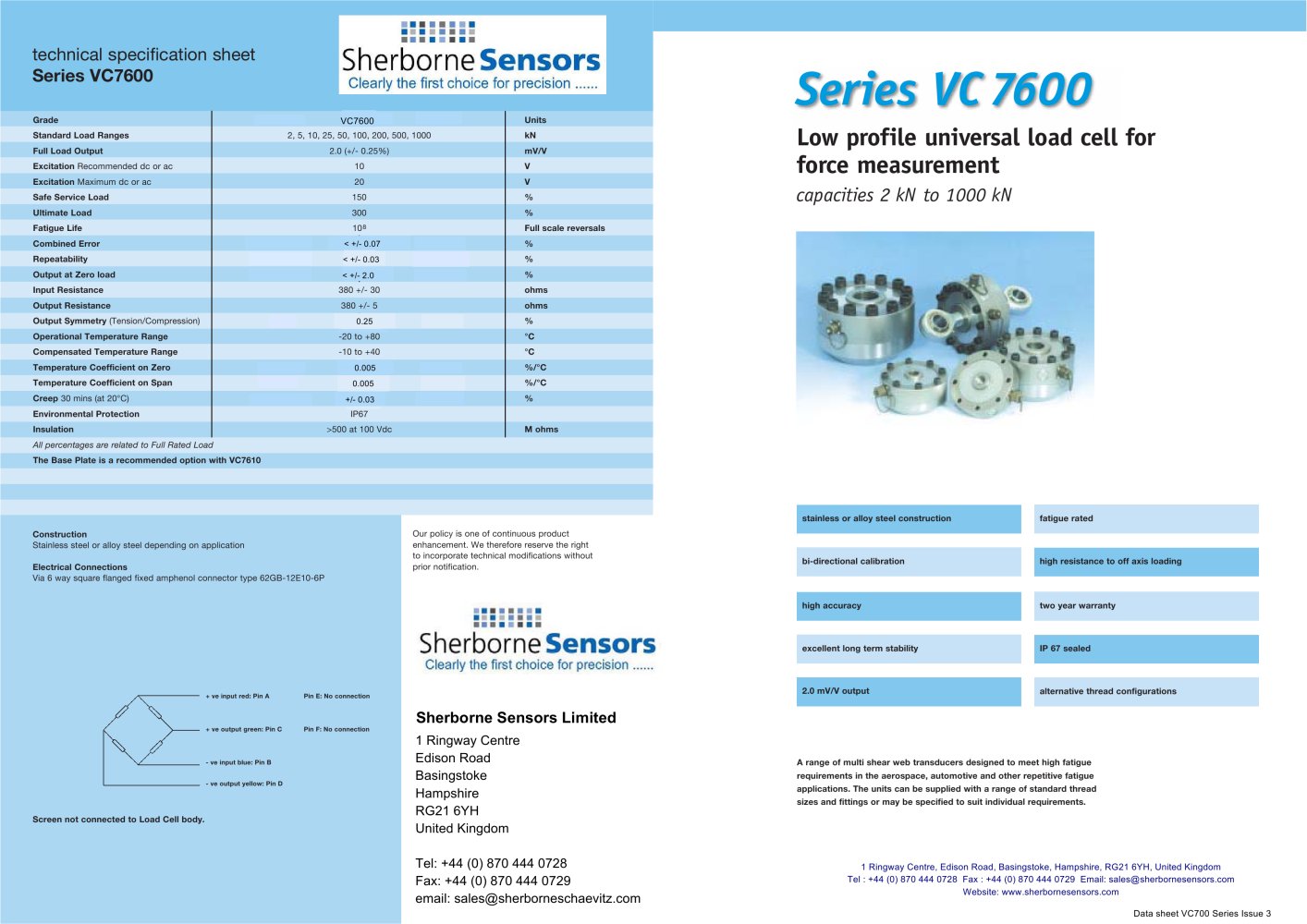

Series VC 7600 Distributed by Our policy is one of continuous product enhancement. We therefore reserve the right to incorporate technical modifications without prior notification. + ve input red: Pin A Pin E: No connection + ve output green: Pin C Pin F: No connection - ve input blue: Pin B - ve output yellow: Pin D Construction Stainless steel or alloy steel depending on application Electrical Connections Via 6 way square flanged fixed amphenol connector type 62GB-12E10-6P Screen not connected to Load Cell body. Thames Side-Maywood Limited 17 Stadium Way, Reading Berkshire RG30 6BX UK Tel: +44(0)118 9458200 Fax: +44(0)118 9458225 E-mail: sales@thames-side.co.uk Web: www.thames-side.co.uk A range of multi shear web transducers designed to meet high fatigue requirements in the aerospace, automotive and other repetitive fatigue applications. The units can be supplied with a range of standard thread sizes and fittings or may be specified to suit individual requirements. technical specification sheet Series VC7600 Grade VC7610 VC7620 Units Standard Load Ranges 2, 5, 10, 25, 50, 100, 200, 500, 1000 kN Full Load Output 2.0 (+/- 0.25%) mV/V Excitation Recommended dc or ac 10 V Excitation Maximum dc or ac 20 V Safe Service Load 150 % Ultimate Load 300 % Fatigue Life 108 Full scale reversals Combined Error < +/- 0.05 < +/- 0.07 % Repeatability < +/- 0.01 < +/- 0.03 % Output at Zero load < +/- 1.0 < +/- 2.0 % Input Resistance 380 +/- 30 ohms Output Resistance 380 +/- 5 ohms Output Symmetry (Tension/Compression) 0.1 0.25 % Operational Temperature Range -20 to +80 °C Compensated Temperature Range -10 to +40 °C Temperature Coefficient on Zero 0.003 0.005 %/°C Temperature Coefficient on Span 0.003 0.005 %/°C Creep 30 mins (at 20°C) +/- 0.02 +/- 0.03 % Environmental Protection IP67 Insulation >500 at 100 Vdc M ohms All percentages are related to Full Rated Load The Base Plate is a recommended option with VC7610 high resistance to off axis loading fatigue rated bi-directional calibration stainless or alloy steel construction IP 67 sealed alternative thread configurations two year warranty excellent long term stability 2.0 mV/V output high accuracy Low profile universal load cell for force measurement capacities 2 kN to 1000 kN The VC7600 range of load cells were previously manufactured by Thames Side-Maywood Sherborne Sensors Limited 1 Ringway Centre Edison Road Basingstoke Hampshire RG21 6YH United Kingdom Tel: +44 (0) 870 444 0728 Fax: +44 (0) 870 444 0729 email: sales@sherborneschaevitz.com 1 Ringway Centre, Edison Road, Basingstoke, Hampshire, RG21 6YH, United Kingdom Tel : +44 (0) 870 444 0728 Fax : +44 (0) 870 444 0729 Email: sales@sherbornesensors.com Website: www.sherbornesensors.com VC7600 Data sheet VC700 Series Issue 3 < <+ /+- 0- .+00./70- 70.07 < +/- 2.0 < +/- 0.03 0.25 0.005 +/- 0.03 0.005

Open the catalog to page 1

Sherborne Sensors VC7600 Series Universal Force Transducer - 2

Series VC 7600 To guarantee optimum performance from VC7600 it is strongly recommended that the factory fitted base plate be specified at the time of order placement. The base unit is specifically designed to maximise the load cell’s performance and the cell is calibrated with the base installed. If the VC7600 is to be used without a fitted base, it is essential that the cell is mounted on a flat ground surface. This surface should be flat to within 0.005mm T.I.R. Specifying the appropriate Veccer base plate as a factory fitted option eliminates this requirement and ensures the unit...
