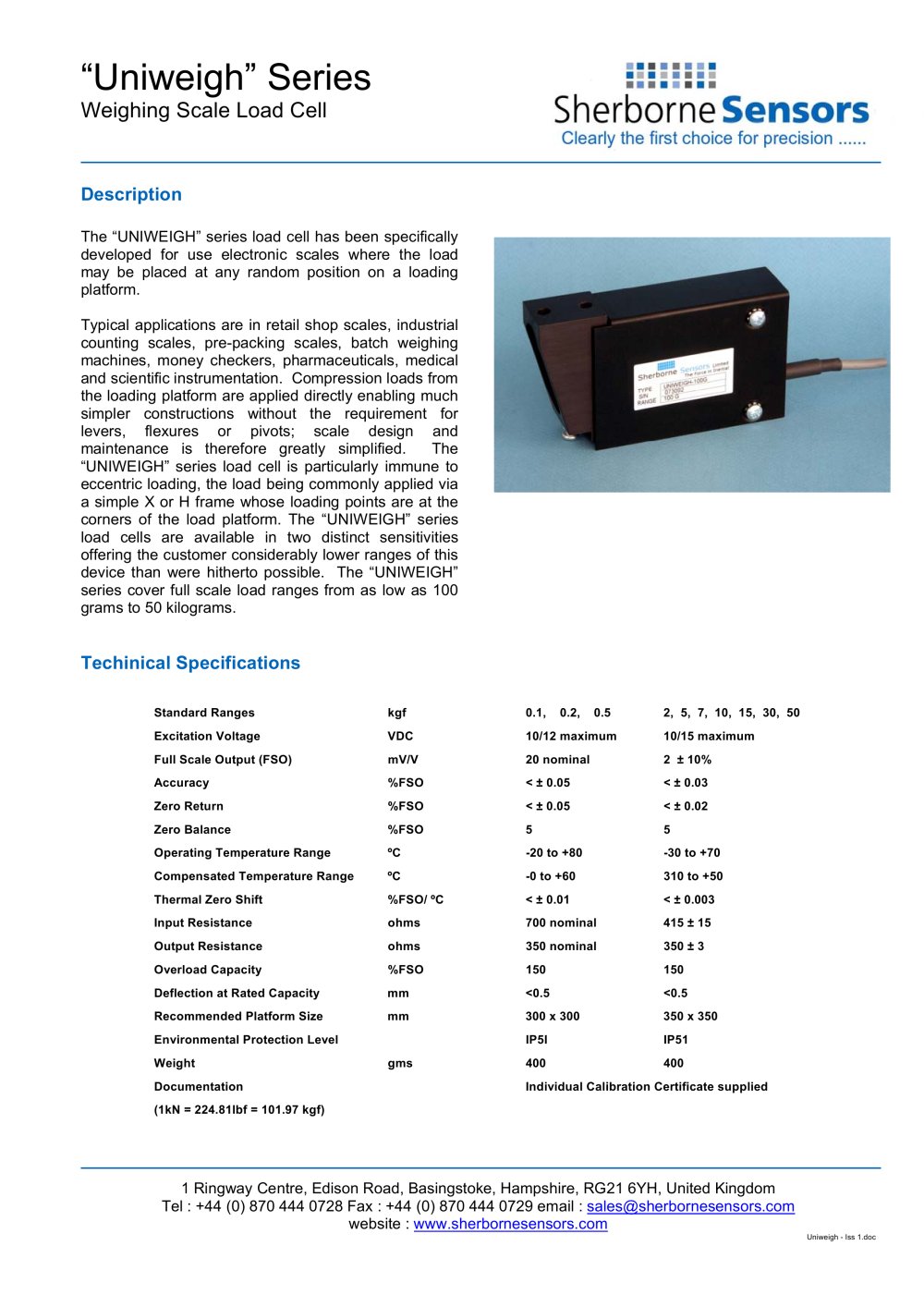

“Uniweigh” Series Weighing Scale Load Cell 1 Ringway Centre, Edison Road, Basingstoke, Hampshire, RG21 6YH, United Kingdom Tel : +44 (0) 870 444 0728 Fax : +44 (0) 870 444 0729 email : [email protected] website : www.sherbornesensors.com Uniweigh - Iss 1.doc Description The “UNIWEIGH” series load cell has been specifically developed for use electronic scales where the load may be placed at any random position on a loading platform. Typical applications are in retail shop scales, industrial counting scales, pre-packing scales, batch weighing machines, money checkers, pharmaceuticals, medical and scientific instrumentation. Compression loads from the loading platform are applied directly enabling much simpler constructions without the requirement for levers, flexures or pivots; scale design and maintenance is therefore greatly simplified. The “UNIWEIGH” series load cell is particularly immune to eccentric loading, the load being commonly applied via a simple X or H frame whose loading points are at the corners of the load platform. The “UNIWEIGH” series load cells are available in two distinct sensitivities offering the customer considerably lower ranges of this device than were hitherto possible. The “UNIWEIGH” series cover full scale load ranges from as low as 100 grams to 50 kilograms. Techinical Specifications Standard Ranges kgf 0.1, 0.2, 0.5 2, 5, 7, 10, 15, 30, 50 Excitation Voltage VDC 10/12 maximum 10/15 maximum Full Scale Output (FSO) mV/V 20 nominal 2 ± 10% Accuracy %FSO < ± 0.05 < ± 0.03 Zero Return %FSO < ± 0.05 < ± 0.02 Zero Balance %FSO 5 5 Operating Temperature Range ºC -20 to +80 -30 to +70 Compensated Temperature Range ºC -0 to +60 310 to +50 Thermal Zero Shift %FSO/ ºC < ± 0.01 < ± 0.003 Input Resistance ohms 700 nominal 415 ± 15 Output Resistance ohms 350 nominal 350 ± 3 Overload Capacity %FSO 150 150 Deflection at Rated Capacity mm <0.5 <0.5 Recommended Platform Size mm 300 x 300 350 x 350 Environmental Protection Level IP5I IP51 Weight gms 400 400 Documentation Individual Calibration Certificate supplied (1kN = 224.81lbf = 101.97 kgf)

“Uniweigh” Series Weighing Scale Load Cell 1 Ringway Centre, Edison Road, Basingstoke, Hampshire, RG21 6YH, United Kingdom Tel : +44 (0) 870 444 0728 Fax : +44 (0) 870 444 0729 email : [email protected] website : www.sherbornesensors.com Uniweigh - Iss 1.doc Outline Dimensions Notes 1. Cable screen not connected to load cell body. 2. The sense wires are provided for precision measurements (not fitted on ranges below 2g) Ordering Information Order by specifying type number and load range in Kgf e.g. “Uniweigh – 5kgf” Wiring Diagram
