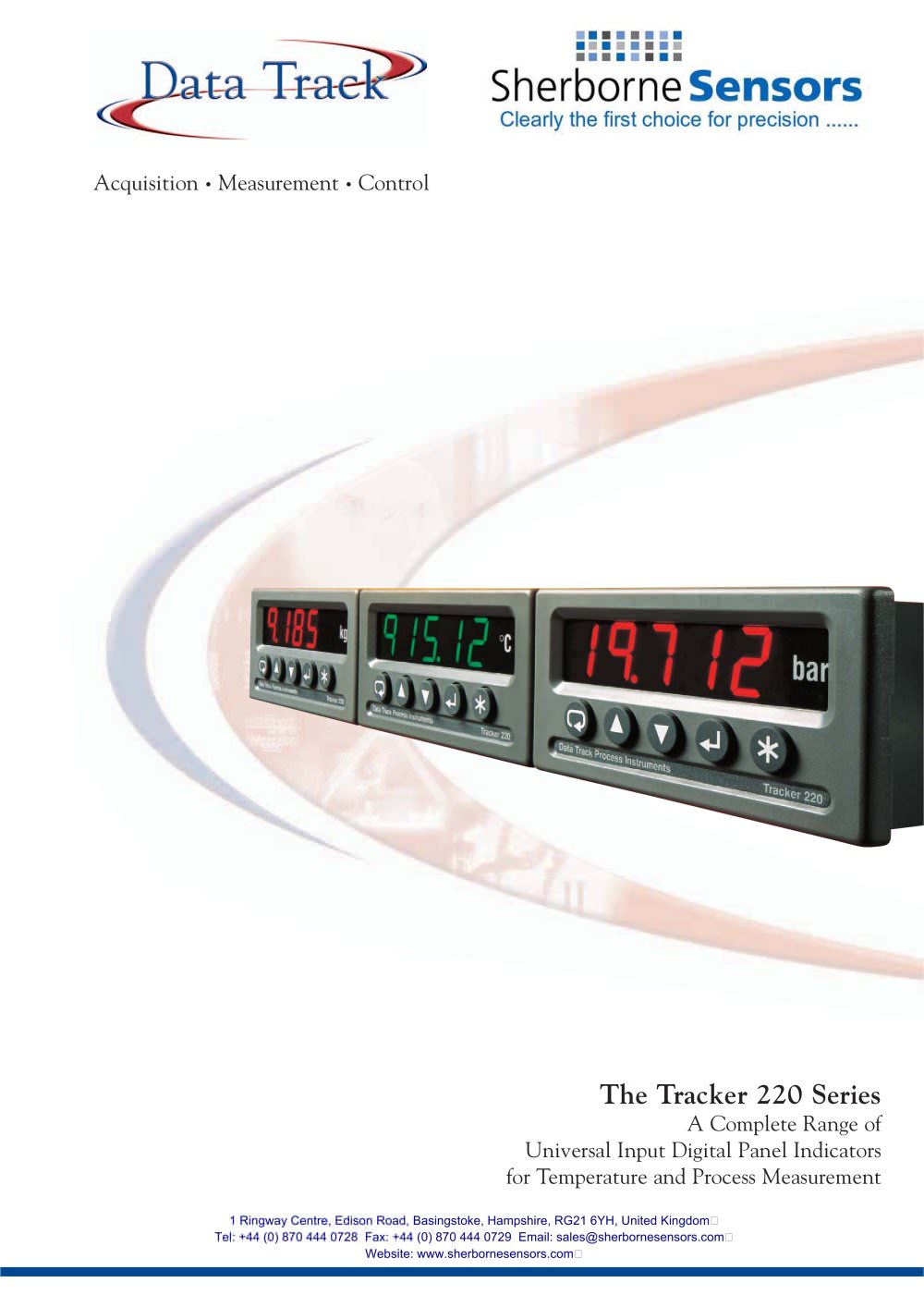

Acquisition • Measurement • Control The Tracker 220 Series A Complete Range of Universal Input Digital Panel Indicators for Temperature and Process Measurement 1 Ringway Centre, Edison Road, Basingstoke, Hampshire, RG21 6YH, United Kingdom

Universal Input Analogue Output Digital Status Inputs Transmitter & Transducer Supplies Four Alarm Set points Wide Ranging Power Input IP65 Front Panel Standard 1/8 DIN Size Red or Green LED Display Programmable Function Buttons Maths Functions Serial Communications Universal Power Input Wide-ranging 90 to 265v ac input allows world-wide installation. Low voltage ac/dc input option available. Tough but Attractive Designed to enhance the looks of any instrument panel, the enclosure uses flame retardant (VO) materials and the front panel conforms to IP65 (NEMA 4). The plug in sleeve-type construction...

Temperature The Tracker 220 series can be used in a wide variety of temperature measurement applications with results displayed in °C, °F or Kelvin (Absolute). In applications where non-linearising temperature transmitters are used the Tracker 220 series can linearise the 4-20 mA signal received to the thermocouple curve. Where accuracy is vital to an application, a 220 series indicator can be calibration-matched to the output of the actual sensor to be used, thus removing most system measurement errors. Pressure and Weighing A variety of pressure transducers, pressure transmitters or strain...

12345 12345 LOAD LOAD Universal Input All of the Tracker 220 series can be directly connected to most process sensors including thermocouples, RTDs, 20mA loops, transmitters, or dc type signals. All thermosensor ranges have built-in linearisation curves and internal or external CJC is available. The display can show °C, °F or Kelvin (Absolute), with the decimal point position being user-adjustable to give the required measurement resolution or switched to automatic (auto ranging mode). The sensor break detection can be selected to produce upscale or downscale readings. Process inputs can be scaled...

Input Type Linearisation Type Internal or External CJC Sensor Break Detection Display Resolution Display Filter Time Constant Scaling and Calibration Maths Functions Alarm Set-up x 4 Averaging Time Period User Linearisation Password Set-up Function Button Set-up x 2 Relay Set-up (222/224 only) Models 223 and 224 only Status Input Set-up x 2 Transducer Supply Set-up Analogue Output Set-up Analogue Output Scaling Analogue Output Damping Serial Comms Set-up Advanced Maths All models have the following maths functions available to the user: Maximum and Minimum (Peak/Valley) Memory Signal Averaging...

Specifications subject to change without notice. All trademarks acknowledged. DATA TRACK PROCESS INSTRUMENTS 153 Somerford Road, Christchurch, Dorset BH23 3TY, United Kingdom Tel: +44 (0) 1425 271900 Fax: +44 (0) 1425 271978 Email: [email protected] Website: www.datatrackpi.com Distributed by: Serial Communications Type: RS422/485 2 or 4 wire multidrop Speed: 1200, 2400, 4800 or 9600 baud Parity: Odd, even or none Stop Bits: 1 or 2 Protocol: MODBUS™ (RTU or ASCII), J-BUS and DTPI Isolation: 500 Vdc/peak ac Physical/Mechanical Front Panel: Protection to IP65 (NEMA4) Dimensions: 48mm (H) x...
