Sherborne Sensors T700 Series Inclinometers

Product catalog summary

Introduction
The Sherborne Sensors’ T700 series are solid-state inclinometers designed to measure inclination proportional to the sine of the angle in single or dual axes. Utilizing MEM technology, these devices offer excellent shock resistance due to positive mechanical stops. The -0101 version includes a temperature sensor for individual characterization over its operational temperature range, allowing for high accuracy by minimizing errors related to zero offset, sensitivity, linearity, and thermal shifts.

Design and Specifications
The T700 series operates from an unregulated DC power source and is housed in a robust aluminum alloy casing with an integral shielded cable. The cable can optionally be fitted with an electrical connector. Key specifications include:

Full Scale Acceleration: ±30° or ±90°
Signal Output: Analog
Full Scale Output: ±1.000 ± 0.020 Volts (±30°), ±2.000 ± 0.040 Volts (±90°)
Zero Offset Voltage: 2.5 ± 0.1 Volts
Non-linearity: < ± 0.5 %FSO
Band Width: 800 Hz (-3dB)
Power Supply: +6.5 to 18 Volts DC
Power Dissipation: < 30 mW
Weight: < 50 Grams
Compensated Temperature Range: -18 to +70°C
Operating Temperature Range: -25 to +85°C
Mechanical Shock: > 3500 g (0.5mS, ½ sine)
Humidity/Immersion: IP55
Insulation Resistance: > 100 MΩ @ 25 volts DC

Additional Specifications for -0101 Version
After error correction, the -0101 version offers:

Accuracy X-Axis: < ± 1 Milliradian
Accuracy Y-Axis: < ± 1 Milliradian
Temperature Output: 1 µA / kelvin

The characteristic error correction equation is provided for each unit, allowing precise angle calculations.

Self-Test Feature
The T700 series includes a self-test feature. By applying 5 volts to the self-test connection, the output changes by approximately 4 volts, verifying sensor functionality.

Catalog excerpts

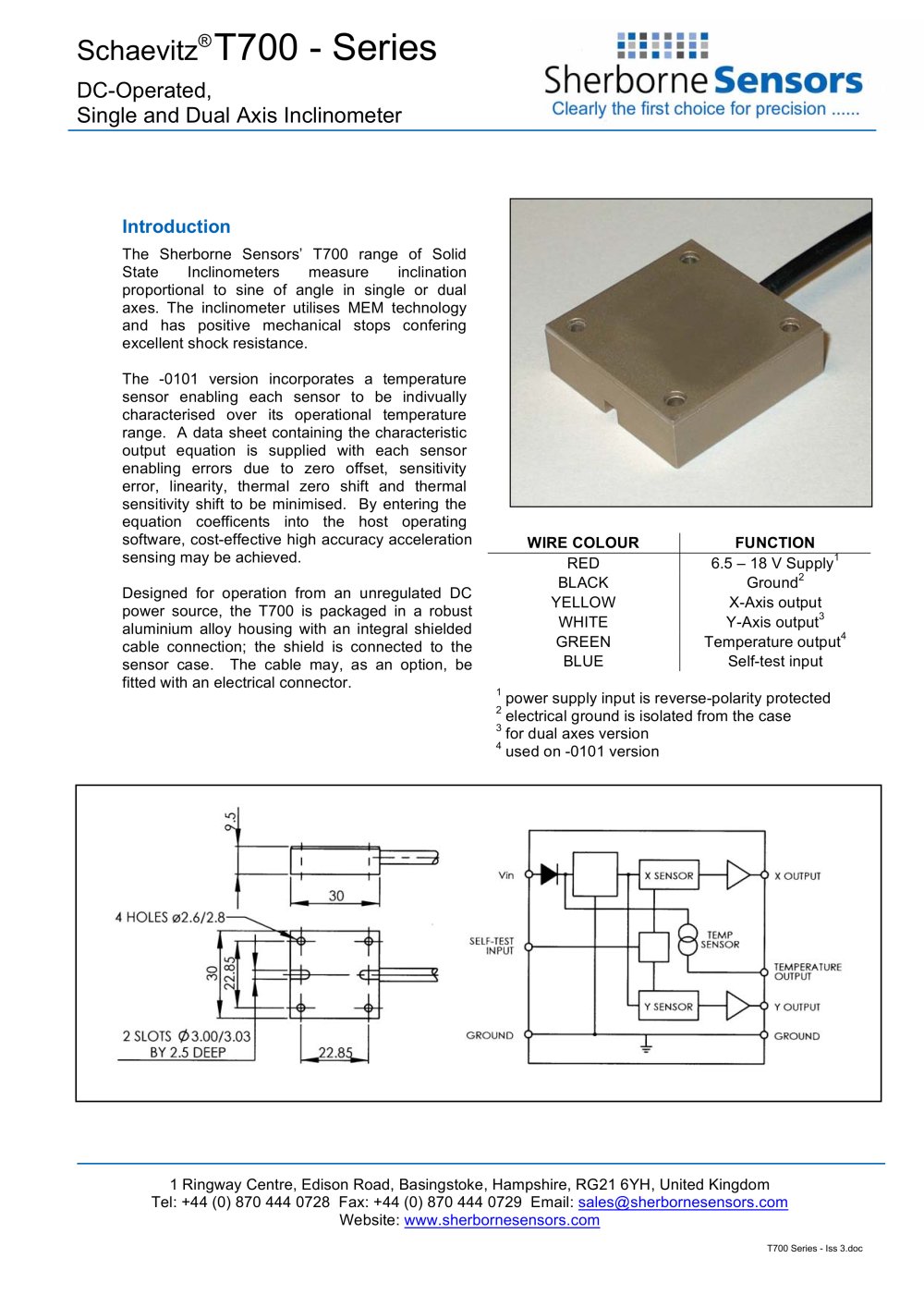

Sherborne Sensors T700 Series Inclinometers-1

Schaevitz® T700 - Series DC-Operated, Single and Dual Axis Inclinometer 1 Ringway Centre, Edison Road, Basingstoke, Hampshire, RG21 6YH, United Kingdom Tel: +44 (0) 870 444 0728 Fax: +44 (0) 870 444 0729 Email: [email protected] Website: www.sherbornesensors.com T700 Series - Iss 3.doc Introduction The Sherborne Sensors’ T700 range of Solid State Inclinometers measure inclination proportional to sine of angle in single or dual axes. The inclinometer utilises MEM technology and has positive mechanical stops confering excellent shock resistance. The -0101 version incorporates a temperature sensor enabling each sensor to be indivually characterised over its operational temperature range. A data sheet containing the characteristic output equation is supplied with each sensor enabling errors due to zero offset, sensitivity error, linearity, thermal zero shift and thermal sensitivity shift to be minimised. By entering the equation coefficents into the host operating software, cost-effective high accuracy acceleration sensing may be achieved. Designed for operation from an unregulated DC power source, the T700 is packaged in a robust aluminium alloy housing with an integral shielded cable connection; the shield is connected to the sensor case. The cable may, as an option, be fitted with an electrical connector. WIRE COLOUR FUNCTION RED 6.5 – 18 V Supply1 BLACK Ground2 YELLOW X-Axis output WHITE Y-Axis output3 GREEN Temperature output4 BLUE Self-test input 1 power supply input is reverse-polarity protected 2 electrical ground is isolated from the case 3 for dual axes version 4 used on -0101 version
