Sherborne Sensors T66 Series Cantilever Beam Load Cells

Product catalog summary

Overview: The Series T66 Cantilever Beam Load Cell is designed for harsh industrial environments with capacities ranging from 10kg to 200kg. It is constructed from fully welded stainless steel, hermetically sealed to IP68, making it suitable for applications in food processing, chemical, pharmaceutical, and bulk handling industries.

Specifications: The load cell offers a rated output of mV/V±0.1% and is classified under OIML R60 Class C with 3000 divisions. It features a combined error of less than ±0.017%, non-repeatability of less than ±0.015%, and a creep of less than ±0.016% over 30 minutes. The temperature effect on zero balance and span is less than ±0.01%/˚C and ±0.006%/˚C, respectively. The compensated temperature range is -10 to +40˚C, with an operating range of -20 to +50˚C.

Certifications and Options: The T66 load cells are available with ATEX EEx ia IIC T6 certification for dust and gas in all zones. High-temperature variants can operate in environments up to 150˚C. Additional options include anti-vibration loading assembly, LeverMount®Lite loading assembly, and tension accessories.

Construction and Installation: The load cell is manufactured from 17-4PH stainless steel, heat-treated to H900 condition, with a UTS of 1379N/mm2. It features a high integrity cable entry and is supplied with a 4-core, 4m screened polyurethane cable for electrical connections.

Contact Information: Sherborne Sensors Limited, Unit 1, Ringway Center, Edison Road, Basingstoke, Hampshire, RG21 6YH, UK. Tel: +44 (0) 870 444 0728, Email: [email protected]

Catalog excerpts

Sherborne Sensors T66 Series Cantilever Beam Load Cells-1

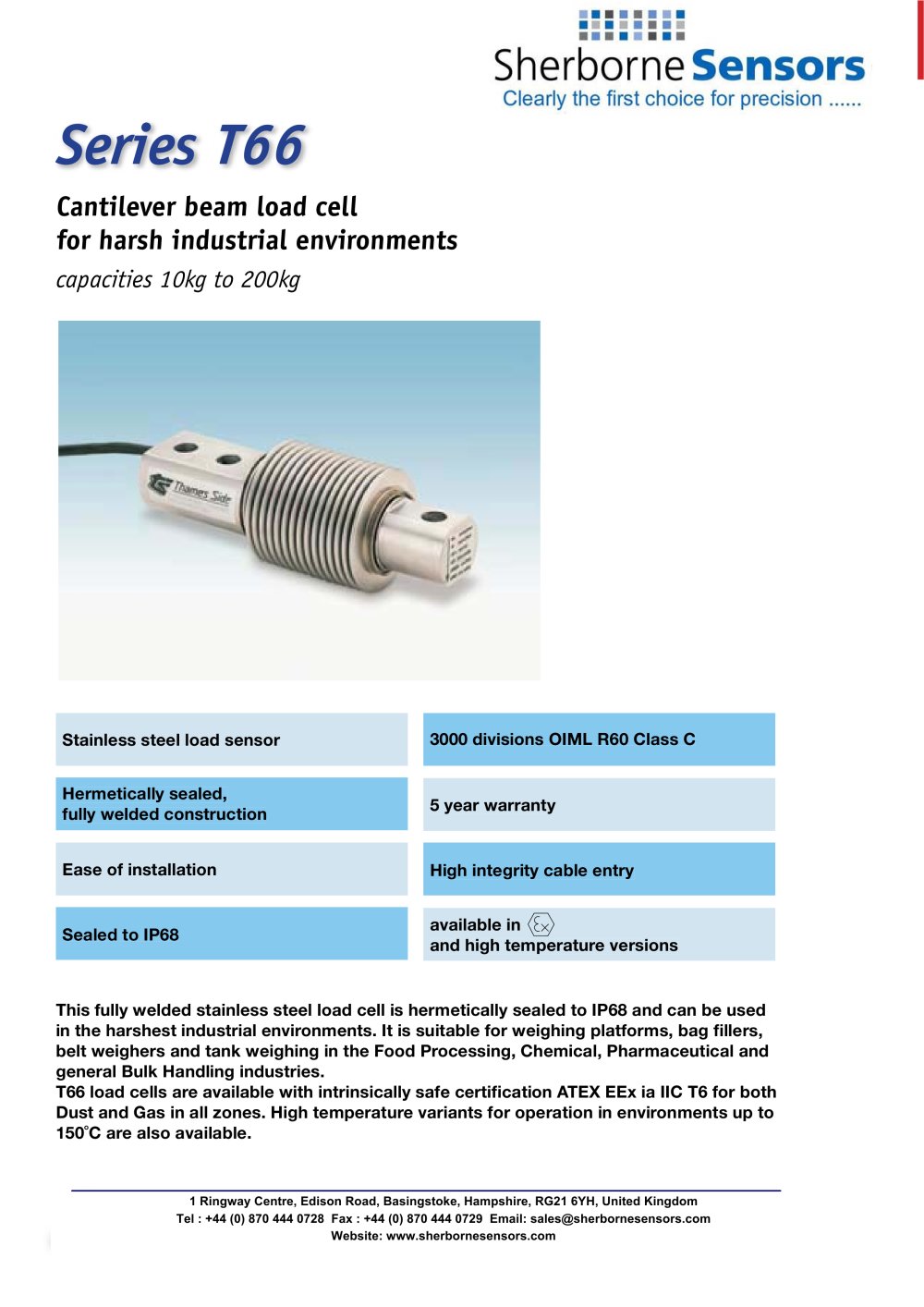

Series T66 Cantilever beam load cell for harsh industrial environments capacities 10kg to 200kg This fully welded stainless steel load cell is hermetically sealed to IP68 and can be used in the harshest industrial environments. It is suitable for weighing platforms, bag fillers, belt weighers and tank weighing in the Food Processing, Chemical, Pharmaceutical and general Bulk Handling industries. T66 load cells are available with intrinsically safe certification ATEX EEx ia IIC T6 for both Dust and Gas in all zones. High temperature variants for operation in environments up to 150°C are also available. Stainless steel load sensor Hermetically sealed, fully welded construction Ease of installation Sealed to IP68 3000 divisions OIML R60 Class C 5 year warranty High integrity cable entry available in and high temperature versions 1 Ringway Centre, Edison Road, Basingstoke, Hampshire, RG21 6YH, United Kingdom Tel : +44 (0) 870 444 0728 Fax : +44 (0) 870 444 0729 Email: [email protected] Website: www.sherbornesensors.com

Open the catalog to page 1

Sherborne Sensors T66 Series Cantilever Beam Load Cells-2

technical specification sheet Series T66 Distributed by Our policy is one of continuous product enhancement. We therefore reserve the right to incorporate technical modifications without prior notification. Thames Side Sensors Ltd Unit 10, io Trade Centre, Deacon Way, Reading, Berkshire RG30 6AZ tel: +44 (0) 118 941 1387 fax: +44 (0) 118 941 2004 e-mail: [email protected] web: www.thames-side.com T66 Issue 1/2008 All dimensions in mm. Range (kg) øA øB C D E F øG øH J K L M N øP 10 - 300 42 34 20 24.5 53.5 42 8.2 27 10 82 120 18 10 30 Rated Output Accuracy Class Combined Error Non-repeatability...
