Overview
The Schaevitz® T435 Series is a high precision, DC-operated, gravity-referenced servo inclinometer designed for applications where space is limited, such as down-hole logging. It is compact, measuring only 40.6mm in height and less than 37mm in diameter, and can be stacked for simultaneous X and Y measurements.

Features

Fully self-contained system requiring only a DC power source and a readout or control device.
Provides a high-level DC output signal proportional to the sine of the tilt angle.
Available in ranges from ±3° to ±90°.
Extremely rugged, capable of withstanding 1500g shock.
Stackable design for multi-axis measurements.

Applications

Geophysical, seismic, and civil engineering studies such as bore-hole mapping and dam monitoring.
Ideal for environments where space is constrained.

Environmental Characteristics

Operating Temperature Range: -18°C to 70°C.
Survival Temperature Range: -40°C to 70°C.
Constant Acceleration Overload: 50g.
Shock Survival: 1500g, 0.5msec, ½ sine.
Vibration Endurance: 35g rms, 20 Hz to 2000 Hz sinusoidal.
Environmental Sealing: IP65.

Specifications by Range at 20°C

Excitation Voltage: ±12 to ±18 Volts DC.
Current Consumption: ±15 mA (nominal).
Full Range Output (FRO): ±5 Volts DC.
Output Standardisation: ±1% FRO.
Output Impedance: 10 Ω (max).
Output Noise: 0.002 Vrms (max).
Non-Linearity: 0.05% to 0.02% FRO depending on range.
Non-Repeatability: 0.01% to 0.0005% FRO depending on range.
Resolution: 0.2 to 4.0 arc seconds depending on range.
-3 dB Frequency: 15 to 55 Hz depending on range.
Sensitive Axis-to-Case Misalignment: ±0.15° to ±1.0° depending on range.
Cross-axis Sensitivity: 0.1% FRO.
Zero Offset: ±0.04 to ±0.02 Volts DC depending on range.
Thermal Zero Shift: 0.03% to 0.003% FRO/°C depending on range.
Thermal Sensitivity: 0.03% to 0.006% Reading/°C depending on range.

Ordering Information
Specify the model type with the appropriate range, e.g., T435-0001-14.5 for an inclinometer with a range of ±14.5°.

Catalog excerpts

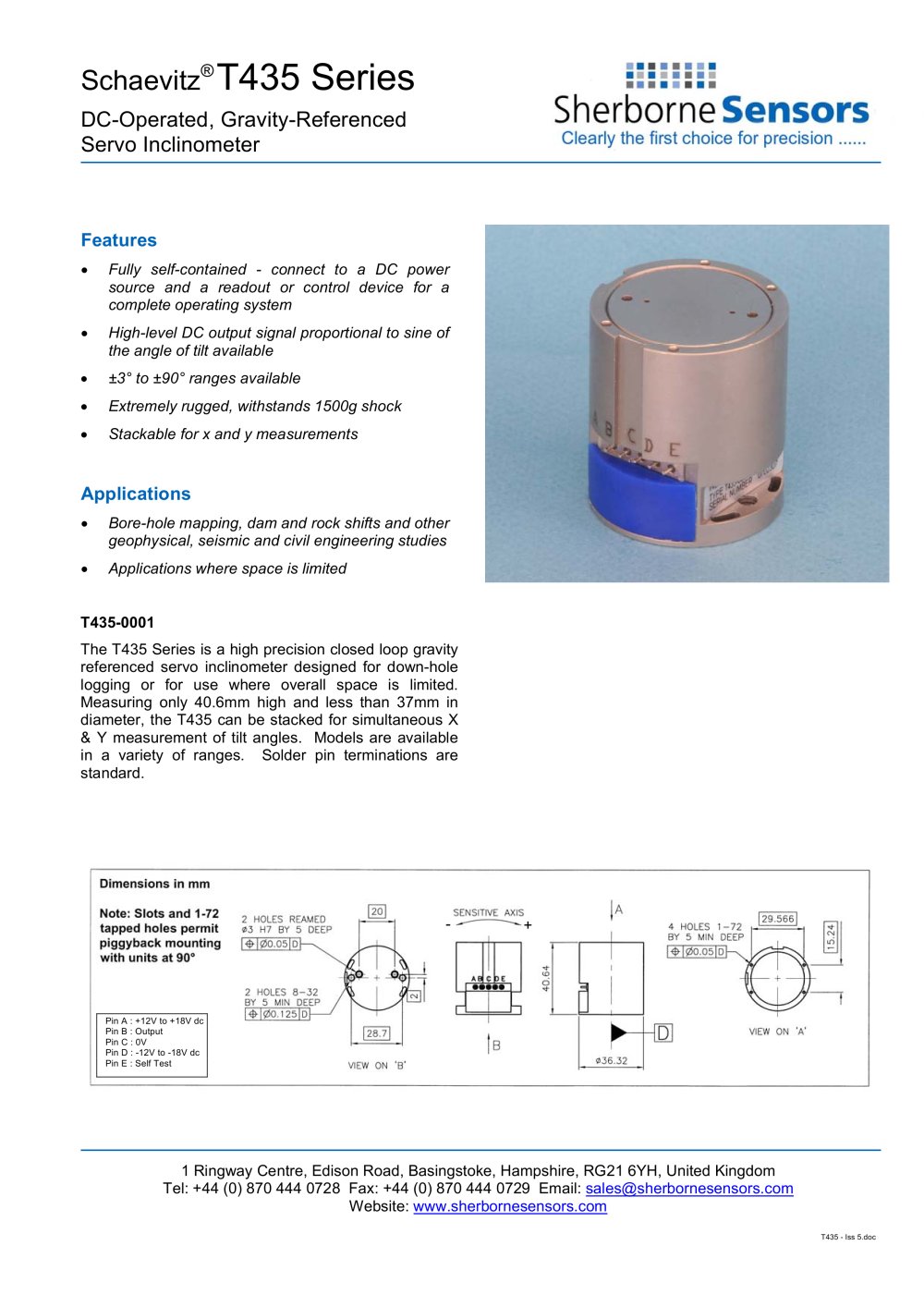

Sherborne Sensors T435 Series Servo Inclinometers-1

Schaevitz® T435 Series DC-Operated, Gravity-Referenced Servo Inclinometer 1 Ringway Centre, Edison Road, Basingstoke, Hampshire, RG21 6YH, United Kingdom Tel: +44 (0) 870 444 0728 Fax: +44 (0) 870 444 0729 Email: [email protected] Website: www.sherbornesensors.com T435 - Iss 5.doc Pin A : +12V to +18V dc Pin B : Output Pin C : 0V Pin D : -12V to -18V dc Pin E : Self Test - + Features • Fully self-contained - connect to a DC power source and a readout or control device for a complete operating system • High-level DC output signal proportional to sine of the angle of tilt available • ±3° to ±90° ranges available • Extremely rugged, withstands 1500g shock • Stackable for x and y measurements Applications • Bore-hole mapping, dam and rock shifts and other geophysical, seismic and civil engineering studies • Applications where space is limited T435-0001 The T435 Series is a high precision closed loop gravity referenced servo inclinometer designed for down-hole logging or for use where overall space is limited. Measuring only 40.6mm high and less than 37mm in diameter, the T435 can be stacked for simultaneous X & Y measurement of tilt angles. Models are available in a variety of ranges. Solder pin terminations are standard.
