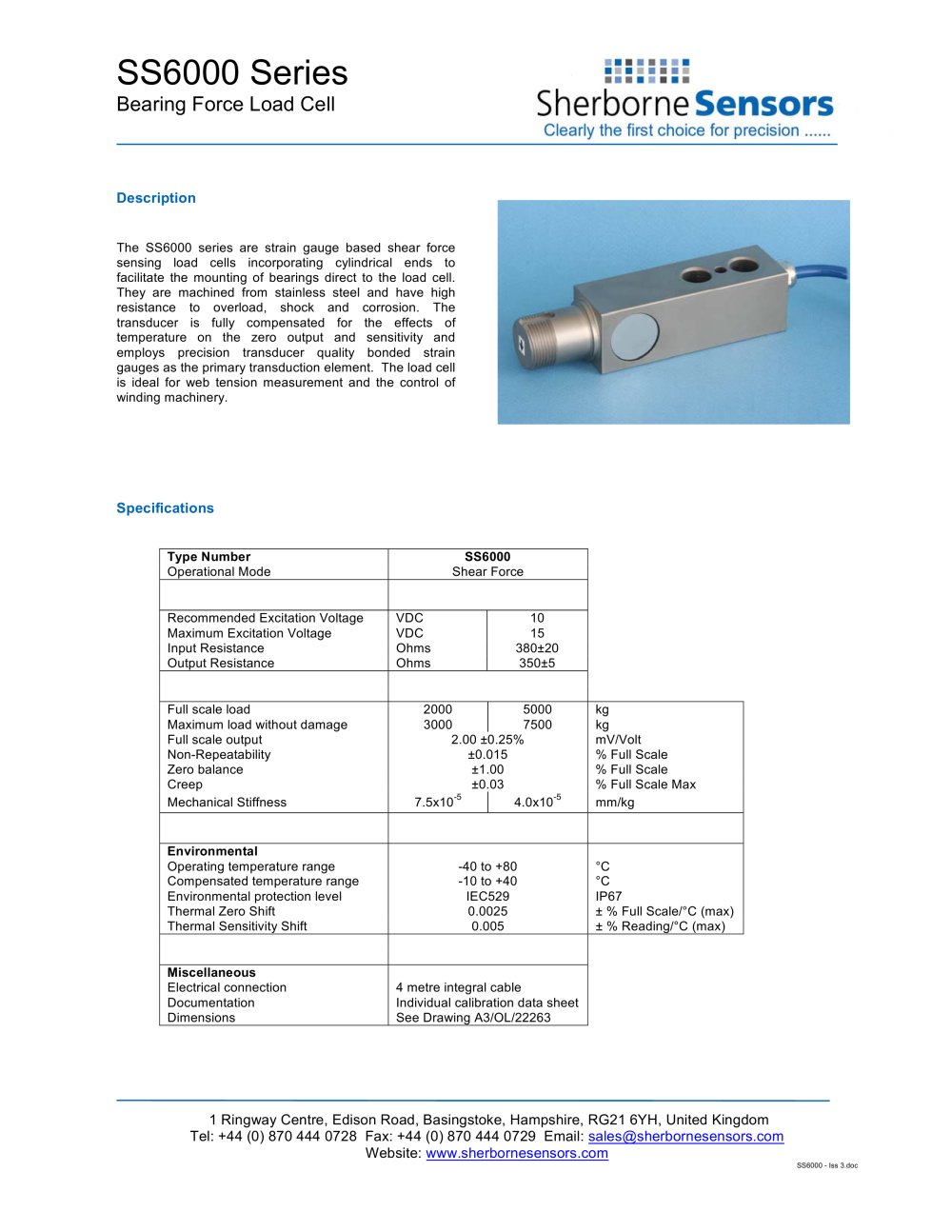

SS6000 Series Bearing Force Load Cell 1 Ringway Centre, Edison Road, Basingstoke, Hampshire, RG21 6YH, United Kingdom Tel: +44 (0) 870 444 0728 Fax: +44 (0) 870 444 0729 Email: [email protected] Website: www.sherbornesensors.com SS6000 - Iss 3.doc Description The SS6000 series are strain gauge based shear force sensing load cells incorporating cylindrical ends to facilitate the mounting of bearings direct to the load cell. They are machined from stainless steel and have high resistance to overload, shock and corrosion. The transducer is fully compensated for the effects of temperature on the zero output and sensitivity and employs precision transducer quality bonded strain gauges as the primary transduction element. The load cell is ideal for web tension measurement and the control of winding machinery. Specifications Type Number SS6000 Operational Mode Shear Force Recommended Excitation Voltage VDC 10 Maximum Excitation Voltage VDC 15 Input Resistance Ohms 380±20 Output Resistance Ohms 350±5 Full scale load 2000 5000 kg Maximum load without damage 3000 7500 kg Full scale output 2.00 ±0.25% mV/Volt Non-Repeatability ±0.015 % Full Scale Zero balance ±1.00 % Full Scale Creep ±0.03 % Full Scale Max Mechanical Stiffness 7.5x10-5 4.0x10-5 mm/kg Environmental Operating temperature range -40 to +80 °C Compensated temperature range -10 to +40 °C Environmental protection level IEC529 IP67 Thermal Zero Shift 0.0025 ± % Full Scale/°C (max) Thermal Sensitivity Shift 0.005 ± % Reading/°C (max) Miscellaneous Electrical connection 4 metre integral cable Documentation Individual calibration data sheet Dimensions See Drawing A3/OL/22263

SS6000 Series Bearing Force Load Cell 1 Ringway Centre, Edison Road, Basingstoke, Hampshire, RG21 6YH, United Kingdom Tel: +44 (0) 870 444 0728 Fax: +44 (0) 870 444 0729 Email: [email protected] Website: www.sherbornesensors.com SS6000 - Iss 3.doc Outline Dimensions: Ordering Information: Order by Part No and range: SS6000-200Kg.
