Sherborne Sensors SS5000 Series Minature High Output Load Cells

Product catalog summary

Description
The SS5000 series are miniature load cells designed for tension and compression applications. They feature integral amplification for high-level signal output and are constructed from stainless steel, offering high resistance to overload, shock, and corrosion. The load cells are temperature compensated and use precision strain gauges.

Specifications

Type Number: SS5000
Operational Mode: Tension/Compression
Recommended Excitation Voltage: ±15 VDC
Minimum Excitation Voltage: ±13 VDC
Operating Current: 22 mA
Output Load: Minimum 5000 Ohms
Full Scale Load Options: 250, 500, 1000, 2000 N
Maximum Load Without Damage: 375, 750, 1500, 3000 N
Full Scale Output: ±10 ±2% Volts
Non-Linearity: ±0.25% Full Scale
Non-Repeatability: ±0.01% Full Scale
Hysteresis: ±0.05% Full Scale
Zero Balance: ±0.30 ±0.15 Volts
Frequency Response: 100 Hz min

Environmental

Operating Temperature Range: -25 to +75 °C
Compensated Temperature Range: -40 to +85 °C
Environmental Protection Level: IEC529 IP65
Thermal Zero Shift: 0.02% Full Scale/°C max
Thermal Sensitivity Shift: 0.02% Reading/°C max
Emissions: BS EN 55011:1998
Immunity: BS EN 61000-4-2:1995, IEC 6100-4-2:1995, BS EN 61000-4-3:2002, BS EN 61000-4-4:2004, BS EN 61000-4-11:2004

Miscellaneous

Electrical Connection: 5 metre integral cable with color-coded wires for supply and output
Documentation: Includes individual calibration data sheet
Dimensions: Refer to Drawing A3/OL/22283

Ordering Information
Order by Part No and range, e.g., SS5000-500N.

Catalog excerpts

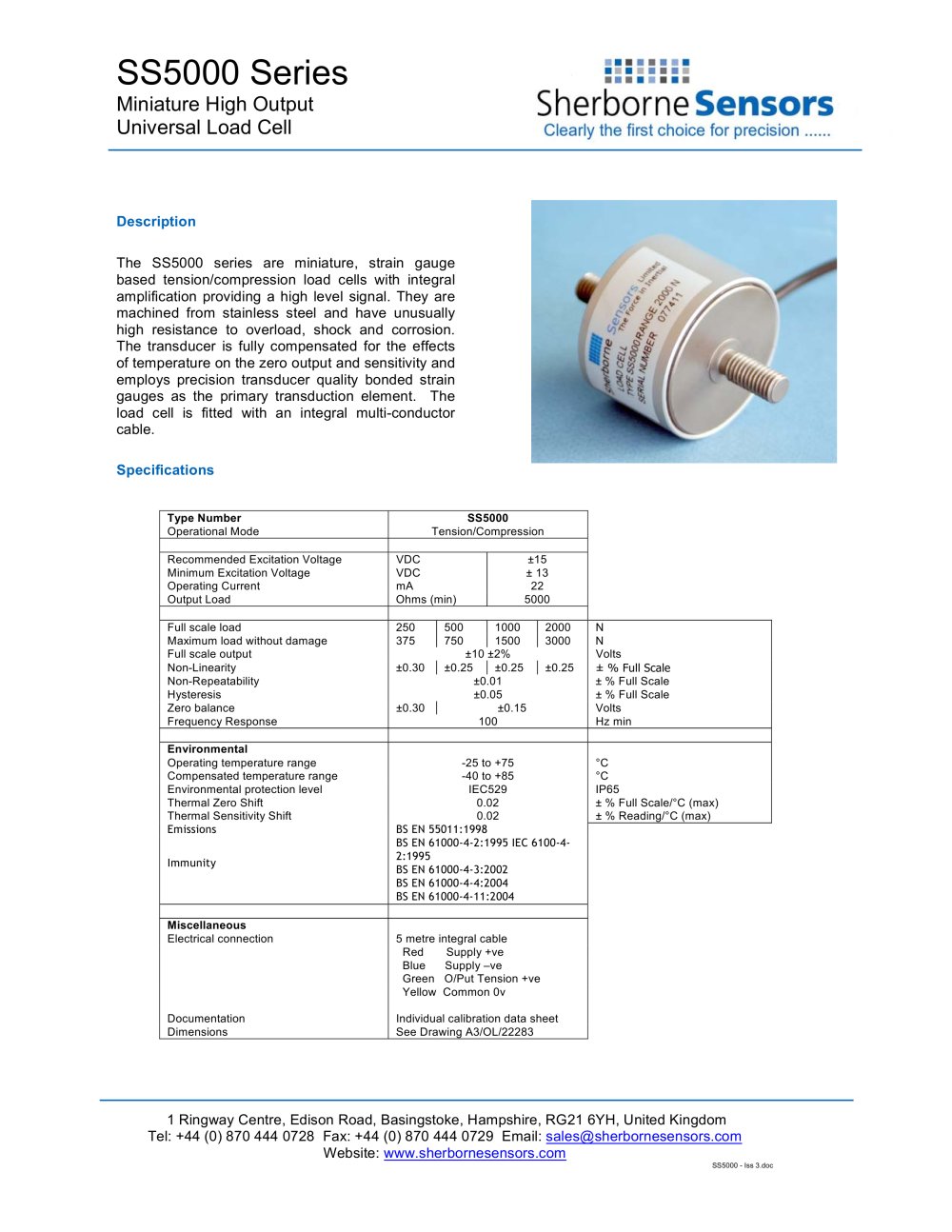

Sherborne Sensors SS5000 Series Minature High Output Load Cells-1

SS5000 Series Miniature High Output Universal Load Cell 1 Ringway Centre, Edison Road, Basingstoke, Hampshire, RG21 6YH, United Kingdom Tel: +44 (0) 870 444 0728 Fax: +44 (0) 870 444 0729 Email: [email protected] Website: www.sherbornesensors.com SS5000 - Iss 3.doc Description The SS5000 series are miniature, strain gauge based tension/compression load cells with integral amplification providing a high level signal. They are machined from stainless steel and have unusually high resistance to overload, shock and corrosion. The transducer is fully compensated for the effects of temperature on the zero output and sensitivity and employs precision transducer quality bonded strain gauges as the primary transduction element. The load cell is fitted with an integral multi-conductor cable. Specifications Type Number SS5000 Operational Mode Tension/Compression Recommended Excitation Voltage VDC ±15 Minimum Excitation Voltage VDC ± 13 Operating Current mA 22 Output Load Ohms (min) 5000 Full scale load 250 500 1000 2000 N Maximum load without damage 375 750 1500 3000 N Full scale output ±10 ±2% Volts Non-Linearity ±0.30 ±0.25 ±0.25 ±0.25 ± % Full Scale Non-Repeatability ±0.01 ± % Full Scale Hysteresis ±0.05 ± % Full Scale Zero balance ±0.30 ±0.15 Volts Frequency Response 100 Hz min Environmental Operating temperature range -25 to +75 °C Compensated temperature range -40 to +85 °C Environmental protection level IEC529 IP65 Thermal Zero Shift 0.02 ± % Full Scale/°C (max) Thermal Sensitivity Shift 0.02 ± % Reading/°C (max) Emissions BS EN 55011:1998 Immunity BS EN 61000-4-2:1995 IEC 6100-4- 2:1995 BS EN 61000-4-3:2002 BS EN 61000-4-4:2004 BS EN 61000-4-11:2004 Miscellaneous Electrical connection 5 metre integral cable Red Supply +ve Blue Supply –ve Green O/Put Tension +ve Yellow Common 0v Documentation Individual calibration data sheet Dimensions See Drawing A3/OL/22283
