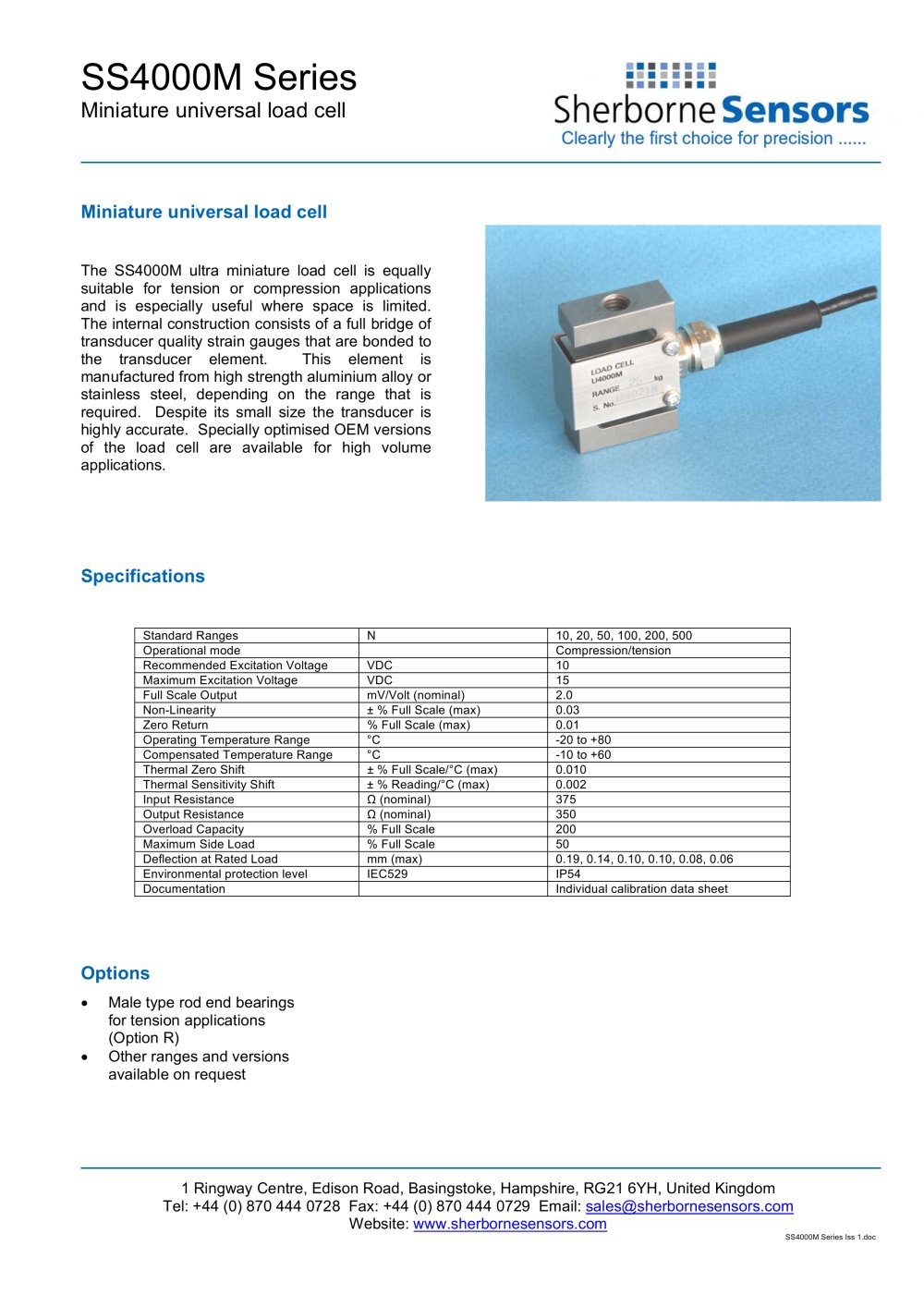

SS4000M Series Miniature universal load cell 1 Ringway Centre, Edison Road, Basingstoke, Hampshire, RG21 6YH, United Kingdom Tel: +44 (0) 870 444 0728 Fax: +44 (0) 870 444 0729 Email: sales@sherbornesensors.com Website: www.sherbornesensors.com SS4000M Series Iss 1.doc Miniature universal load cell The SS4000M ultra miniature load cell is equally suitable for tension or compression applications and is especially useful where space is limited. The internal construction consists of a full bridge of transducer quality strain gauges that are bonded to the transducer element. This element is manufactured from high strength aluminium alloy or stainless steel, depending on the range that is required. Despite its small size the transducer is highly accurate. Specially optimised OEM versions of the load cell are available for high volume applications. Specifications Options • Male type rod end bearings for tension applications (Option R) • Other ranges and versions available on request Standard Ranges N 10, 20, 50, 100, 200, 500 Operational mode Compression/tension Recommended Excitation Voltage VDC 10 Maximum Excitation Voltage VDC 15 Full Scale Output mV/Volt (nominal) 2.0 Non-Linearity ± % Full Scale (max) 0.03 Zero Return % Full Scale (max) 0.01 Operating Temperature Range °C -20 to +80 Compensated Temperature Range °C -10 to +60 Thermal Zero Shift ± % Full Scale/°C (max) 0.010 Thermal Sensitivity Shift ± % Reading/°C (max) 0.002 Input Resistance Ù (nominal) 375 Output Resistance Ù (nominal) 350 Overload Capacity % Full Scale 200 Maximum Side Load % Full Scale 50 Deflection at Rated Load mm (max) 0.19, 0.14, 0.10, 0.10, 0.08, 0.06 Environmental protection level IEC529 IP54 Documentation Individual calibration data sheet
