Sherborne Sensors SS3000 Series Miniature Low-profile Load Cell

Sherborne Sensors SS3000 Series Miniature Low-profile Load Cell
2Pages

Catalog excerpts

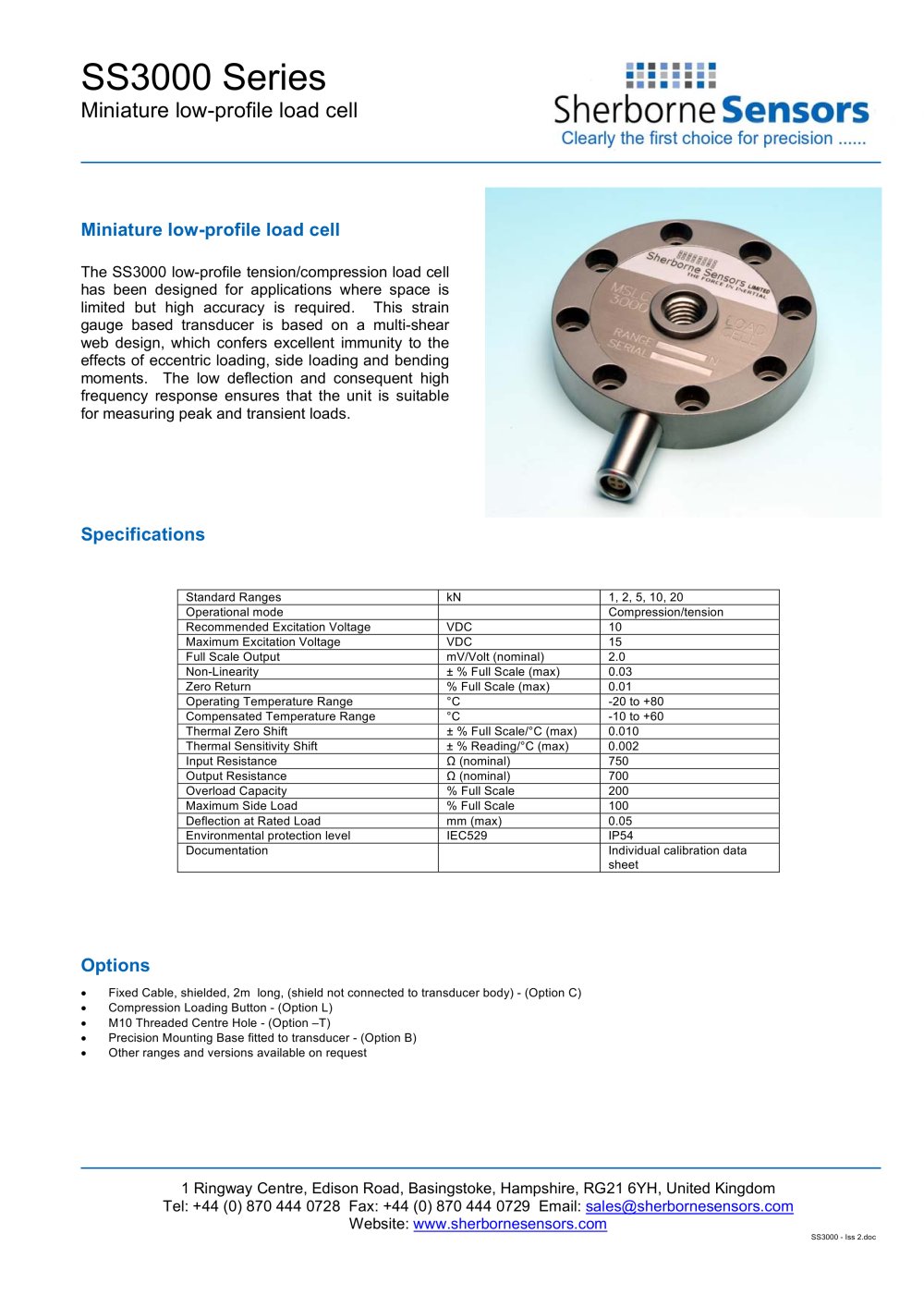

SS3000 Series Miniature low-profile load cell 1 Ringway Centre, Edison Road, Basingstoke, Hampshire, RG21 6YH, United Kingdom Tel: +44 (0) 870 444 0728 Fax: +44 (0) 870 444 0729 Email: sales@sherbornesensors.com Website: www.sherbornesensors.com SS3000 - Iss 2.doc Miniature low-profile load cell The SS3000 low-profile tension/compression load cell has been designed for applications where space is limited but high accuracy is required. This strain gauge based transducer is based on a multi-shear web design, which confers excellent immunity to the effects of eccentric loading, side loading and bending moments. The low deflection and consequent high frequency response ensures that the unit is suitable for measuring peak and transient loads. Specifications Options • Fixed Cable, shielded, 2m long, (shield not connected to transducer body) - (Option C) • Compression Loading Button - (Option L) • M10 Threaded Centre Hole - (Option –T) • Precision Mounting Base fitted to transducer - (Option B) • Other ranges and versions available on request Standard Ranges kN 1, 2, 5, 10, 20 Operational mode Compression/tension Recommended Excitation Voltage VDC 10 Maximum Excitation Voltage VDC 15 Full Scale Output mV/Volt (nominal) 2.0 Non-Linearity ± % Full Scale (max) 0.03 Zero Return % Full Scale (max) 0.01 Operating Temperature Range °C -20 to +80 Compensated Temperature Range °C -10 to +60 Thermal Zero Shift ± % Full Scale/°C (max) 0.010 Thermal Sensitivity Shift ± % Reading/°C (max) 0.002 Input Resistance Ù (nominal) 750 Output Resistance Ù (nominal) 700 Overload Capacity % Full Scale 200 Maximum Side Load % Full Scale 100 Deflection at Rated Load mm (max) 0.05 Environmental protection level IEC529 IP54 Documentation Individual calibration data sheet

Open the catalog to page 1
