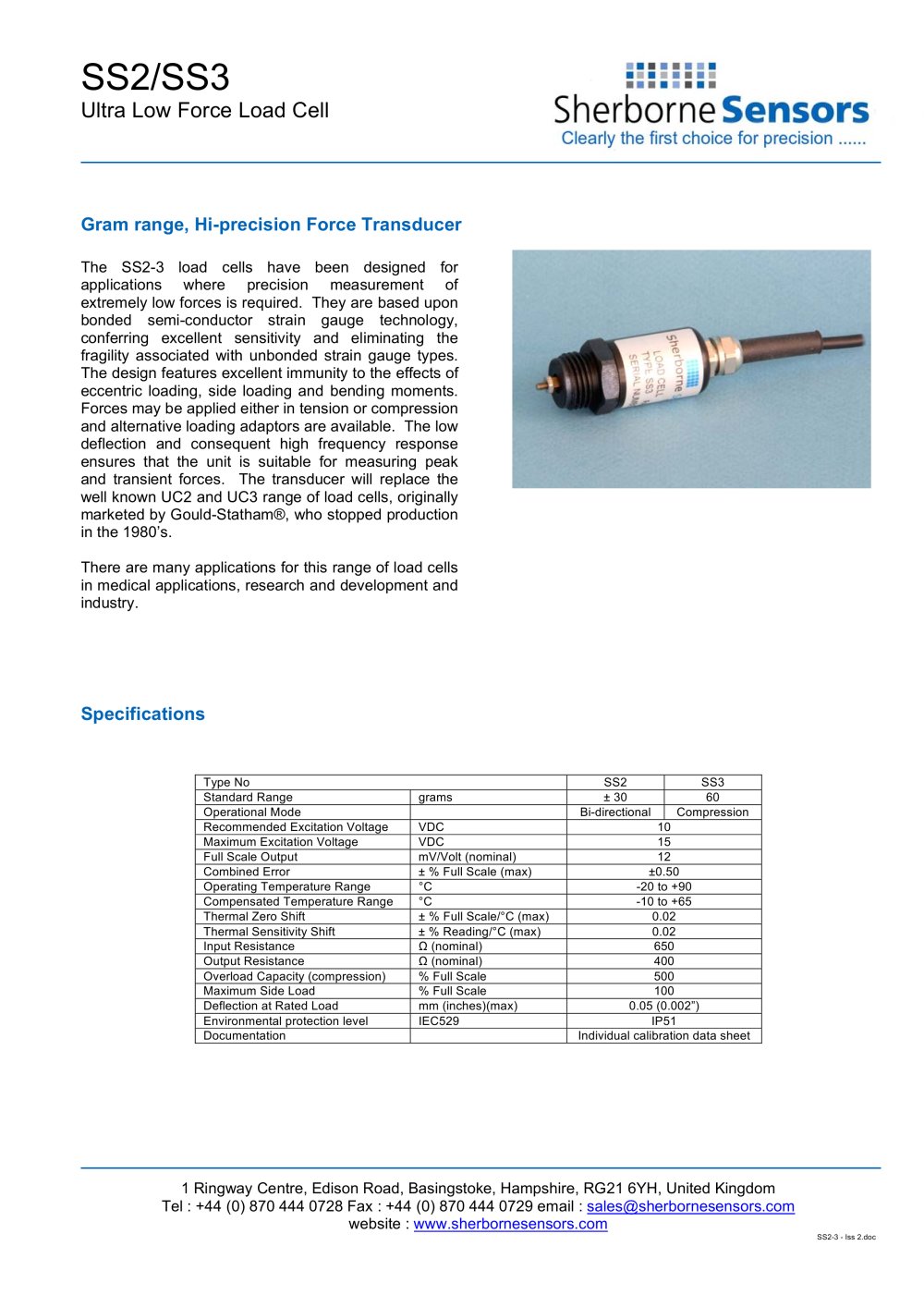

SS2/SS3 Ultra Low Force Load Cell 1 Ringway Centre, Edison Road, Basingstoke, Hampshire, RG21 6YH, United Kingdom Tel : +44 (0) 870 444 0728 Fax : +44 (0) 870 444 0729 email : [email protected] website : www.sherbornesensors.com SS2-3 - Iss 2.doc Gram range, Hi-precision Force Transducer The SS2-3 load cells have been designed for applications where precision measurement of extremely low forces is required. They are based upon bonded semi-conductor strain gauge technology, conferring excellent sensitivity and eliminating the fragility associated with unbonded strain gauge types. The design features excellent immunity to the effects of eccentric loading, side loading and bending moments. Forces may be applied either in tension or compression and alternative loading adaptors are available. The low deflection and consequent high frequency response ensures that the unit is suitable for measuring peak and transient forces. The transducer will replace the well known UC2 and UC3 range of load cells, originally marketed by Gould-Statham®, who stopped production in the 1980’s. There are many applications for this range of load cells in medical applications, research and development and industry. Specifications Type No SS2 SS3 Standard Range grams ± 30 60 Operational Mode Bi-directional Compression Recommended Excitation Voltage VDC 10 Maximum Excitation Voltage VDC 15 Full Scale Output mV/Volt (nominal) 12 Combined Error ± % Full Scale (max) ±0.50 Operating Temperature Range °C -20 to +90 Compensated Temperature Range °C -10 to +65 Thermal Zero Shift ± % Full Scale/°C (max) 0.02 Thermal Sensitivity Shift ± % Reading/°C (max) 0.02 Input Resistance Ù (nominal) 650 Output Resistance Ù (nominal) 400 Overload Capacity (compression) % Full Scale 500 Maximum Side Load % Full Scale 100 Deflection at Rated Load mm (inches)(max) 0.05 (0.002”) Environmental protection level IEC529 IP51 Documentation Individual calibration data sheet

SS2/SS3 Ultra Low Force Load Cell 1 Ringway Centre, Edison Road, Basingstoke, Hampshire, RG21 6YH, United Kingdom Tel : +44 (0) 870 444 0728 Fax : +44 (0) 870 444 0729 email : [email protected] website : www.sherbornesensors.com SS2-3 - Iss 2.doc Outline Dimensions Notes 1. Standard unit is supplied with 4 conductor, 1m shielded cable, shield not connected to transducer 2. Units supplied calibrated in compression 3. Signal polarity is positive in compression Ordering Information Order by specifying type number, e.g. SS2 or SS3 Continuous product development may result in minor specification...
