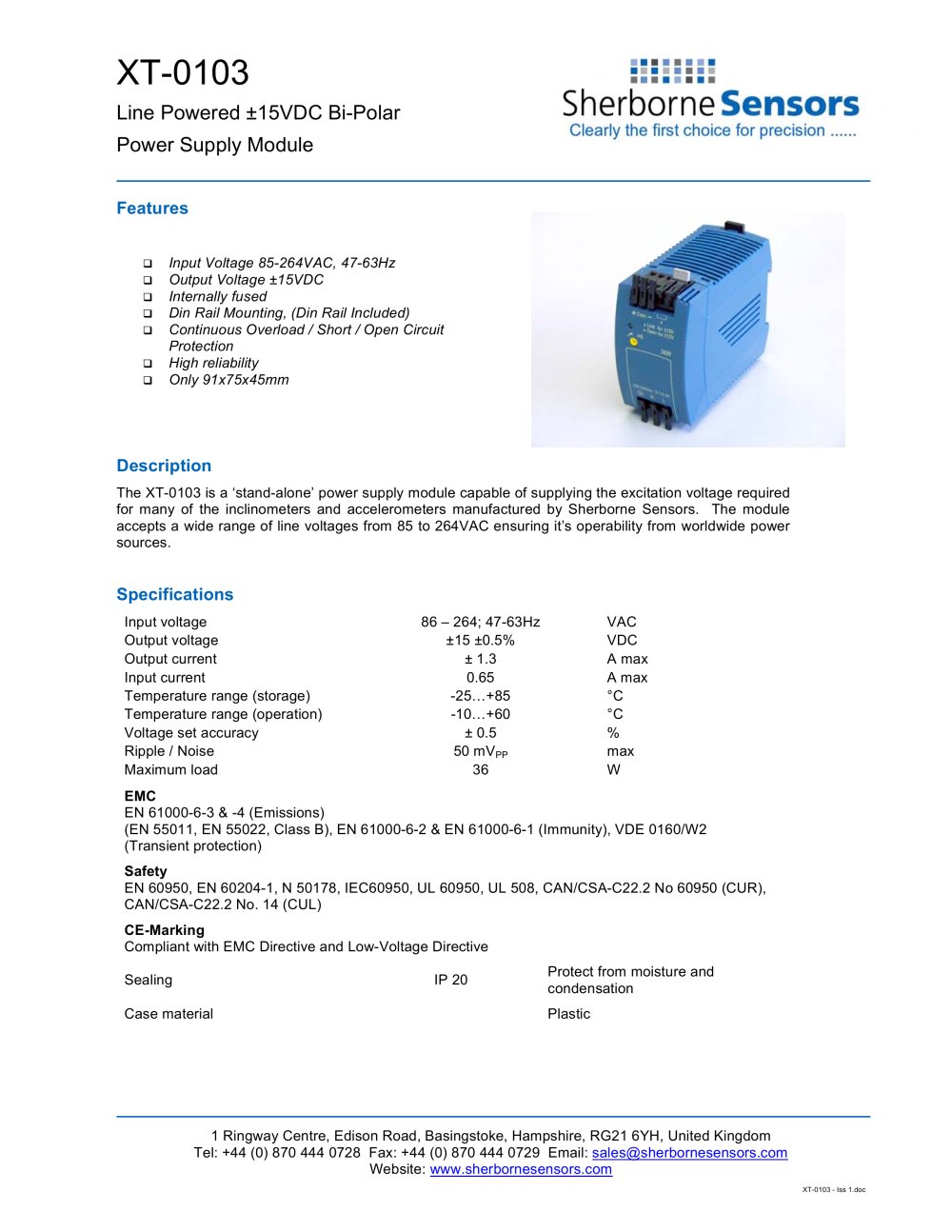

Sherborne Sensors Model XT-0103 Power Supply - 1

XT-0103 Line Powered ±15VDC Bi-Polar Power Supply Module 1 Ringway Centre, Edison Road, Basingstoke, Hampshire, RG21 6YH, United Kingdom Tel: +44 (0) 870 444 0728 Fax: +44 (0) 870 444 0729 Email: sales@sherbornesensors.com Website: www.sherbornesensors.com XT-0103 - Iss 1.doc Features .. Input Voltage 85-264VAC, 47-63Hz .. Output Voltage ±15VDC .. Internally fused .. Din Rail Mounting, (Din Rail Included) .. Continuous Overload / Short / Open Circuit Protection .. High reliability .. Only 91x75x45mm Description The XT-0103 is a ‘stand-alone’ power supply module capable of supplying the excitation voltage required for many of the inclinometers and accelerometers manufactured by Sherborne Sensors. The module accepts a wide range of line voltages from 85 to 264VAC ensuring it’s operability from worldwide power sources. Specifications Input voltage 86 – 264; 47-63Hz VAC Output voltage ±15 ±0.5% VDC Output current ± 1.3 A max Input current 0.65 A max Temperature range (storage) -25…+85 °C Temperature range (operation) -10…+60 °C Voltage set accuracy ± 0.5 % Ripple / Noise 50 mVPP max Maximum load 36 W EMC EN 61000-6-3 & -4 (Emissions) (EN 55011, EN 55022, Class B), EN 61000-6-2 & EN 61000-6-1 (Immunity), VDE 0160/W2 (Transient protection) Safety EN 60950, EN 60204-1, N 50178, IEC60950, UL 60950, UL 508, CAN/CSA-C22.2 No 60950 (CUR), CAN/CSA-C22.2 No. 14 (CUL) CE-Marking Compliant with EMC Directive and Low-Voltage Directive Sealing IP 20 Protect from moisture and condensation Case material Plastic
