Sherborne Sensors Model ADW15 Strain Gauge Weighing Indicator/Controller

Sherborne Sensors Model ADW15 Strain Gauge Weighing Indicator/Controller
2Pages

Catalog excerpts

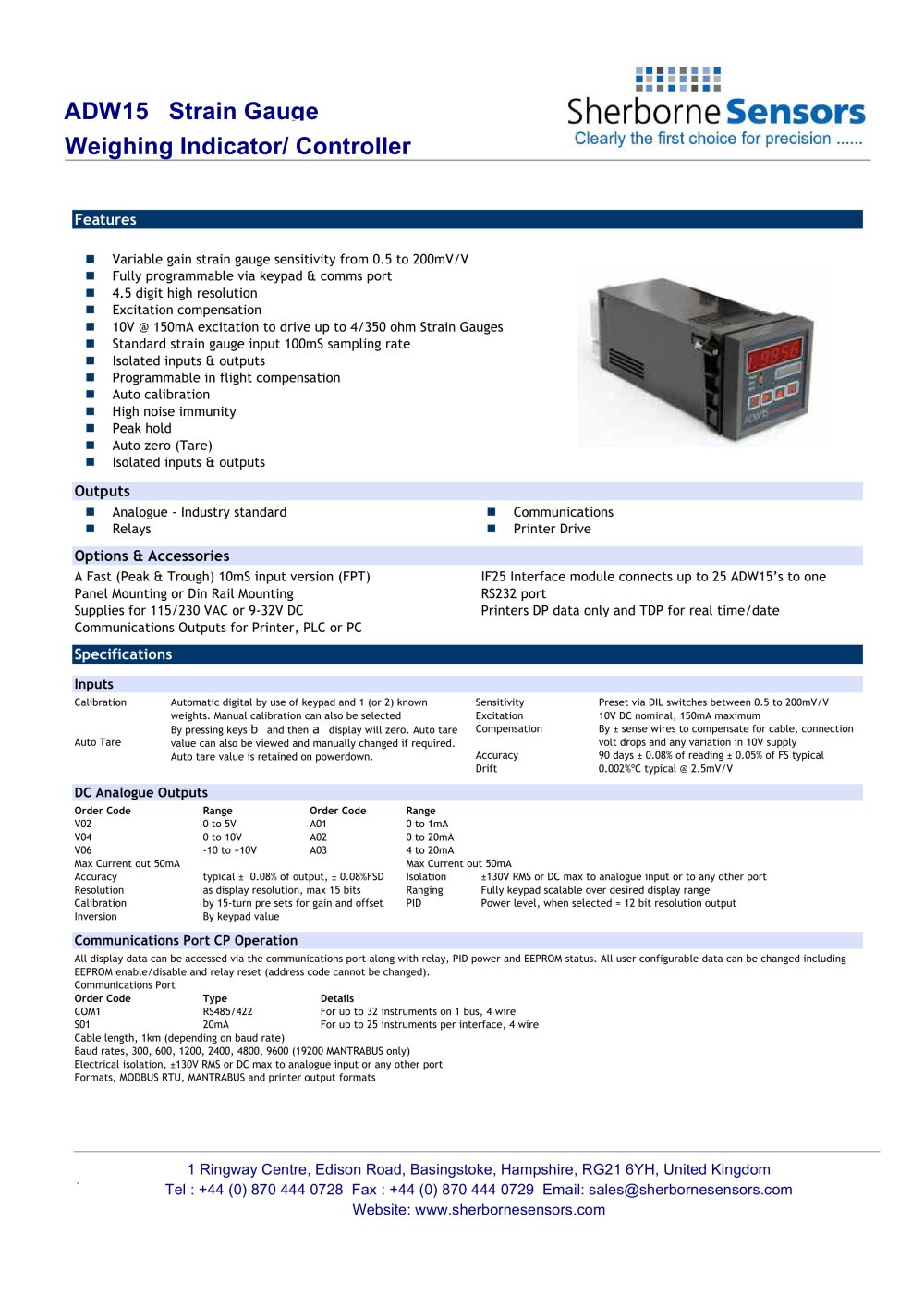

Sherborne Sensors Model ADW15 Strain Gauge Weighing Indicator/Controller - 1

ADW15 Product Sheet Issue 1.8 12.06.08 www.mantracourt.co.uk sales@mantracourt.co.uk tel +44 (0)1395 232020 ADW15 Weighing Indicator/Controller Features .. Variable gain strain gauge sensitivity from 0.5 to 200mV/V .. Fully programmable via keypad & comms port .. 4.5 digit high resolution .. Excitation compensation .. 10V @ 150mA excitation to drive up to 4/350 ohm Strain Gauges .. Standard strain gauge input 100mS sampling rate .. Isolated inputs & outputs .. Programmable in flight compensation .. Auto calibration .. High noise immunity .. Peak hold .. Auto zero (Tare) .. Isolated inputs & outputs Outputs .. Analogue - Industry standard .. Relays .. Communications .. Printer Drive Options & Accessories A Fast (Peak & Trough) 10mS input version (FPT) Panel Mounting or Din Rail Mounting Supplies for 115/230 VAC or 9-32V DC Communications Outputs for Printer, PLC or PC IF25 Interface module connects up to 25 ADW15’s to one RS232 port Printers DP data only and TDP for real time/date Specifications Inputs Calibration Auto Tare Automatic digital by use of keypad and 1 (or 2) known weights. Manual calibration can also be selected By pressing keys b and then a display will zero. Auto tare value can also be viewed and manually changed if required. Auto tare value is retained on powerdown. Sensitivity Excitation Compensation Accuracy Drift Preset via DIL switches between 0.5 to 200mV/V 10V DC nominal, 150mA maximum By ± sense wires to compensate for cable, connection volt drops and any variation in 10V supply 90 days ± 0.08% of reading ± 0.05% of FS typical 0.002%ºC typical @ 2.5mV/V DC Analogue Outputs Order Code V02 V04 V06 Max Current out 50mA Range 0 to 5V 0 to 10V -10 to +10V Order Code A01 A02 A03 Range 0 to 1mA 0 to 20mA 4 to 20mA Max Current out 50mA Accuracy Resolution Calibration Inversion typical ± 0.08% of output, ± 0.08%FSD as display resolution, max 15 bits by 15-turn pre sets for gain and offset By keypad value Isolation Ranging PID ±130V RMS or DC max to analogue input or to any other port Fully keypad scalable over desired display range Power level, when selected = 12 bit resolution output Communications Port CP Operation All display data can be accessed via the communications port along with relay, PID power and EEPROM status. All user configurable data can be changed including EEPROM enable/disable and relay reset (address code cannot be changed). Communications Port Order Code COM1 S01 Type RS485/422 20mA Details For up to 32 instruments on 1 bus, 4 wire For up to 25 instruments per interface, 4 wire Cable length, 1km (depending on baud rate) Baud rates, 300, 600, 1200, 2400, 4800, 9600 (19200 MANTRABUS only) Electrical isolation, ±130V RMS or DC max to analogue input or any other port Formats, MODBUS RTU, MANTRABUS and printer output formats ADW15 Strain Gauge Weighing Indicator/ Controller 1 Ringway Centre, Edison Road, Basingstoke, Hampshire, RG21 6YH, United Kingdom Tel : +44 (0) 870 444 0728 Fax : +44 (0) 870 444 0729 Email: sales@sherbornesensors.com Website: www.sherbornesensors.com

Open the catalog to page 1

Sherborne Sensors Model ADW15 Strain Gauge Weighing Indicator/Controller - 2

ADW15 Product Sheet Issue 1.8 12.06.08 www.mantracourt.co.uk sales@mantracourt.co.uk tel +44 (0)1395 232020 Alarm/Control Outputs Order Code R01 R02 R03 Type SPCO DPCO SPCO Function 1 relay on SP1 1 relay on SP1 2 relays on SP1& 2 Relays, 230V at 5A AC resistive Isolation, ±130V RMS Keypad Programmable options: Hysteresis, Latching, Output Inversion, Delay Times, PID values and Time Proportioning. Power Supplies Order Code W240 W110 W12/24 Type 220V-230V AC 50-60Hz 10W 110V-120V AC 50-60Hz 10W 9-32V DC 10W isolated Base ADW15 Displays 7 segment LED 4.5 digit 10mm.3 x 3mm LED's 2 for relay...
