Sherborne Sensors LSW Series Weatherproof Servo Inclinometers

Product catalog summary

Overview
The Schaevitz® LSW Series is a DC-operated, gravity-referenced, weatherproof servo inclinometer designed for high precision and demanding all-weather applications. It features a stainless steel construction and a waterproof moulded cable system that is field replaceable.

Features

Weatherproof to IP67, ensuring dustproof and temporary water immersion protection.
High-level DC output signal proportional to the sine of the angle of tilt.
Available in angular ranges from ±3° to ±90°.
Rugged design capable of withstanding 1500g shock.

Applications

Geophysical and seismic studies such as bore-hole mapping and dam shifts.
Offshore, military, and civil engineering applications.

Environmental Characteristics

Operating temperature range: -18°C to 70°C.
Survival temperature range: -40°C to 70°C.
Shock survival: 1500g, 0.5msec, ½ sine.
Vibration endurance: 35g rms, 20 Hz to 2000 Hz sinusoidal.

Specifications by Range at 20°C

Excitation voltage: ±12 to ±18 Volts DC.
Current consumption: ±15 mA (nominal).
Full Range Output (FRO): ±5 Volts DC.
Non-linearity: 0.05% to 0.02% FRO depending on range.
Resolution: 0.2 to 4.0 arc seconds depending on range.
Thermal zero shift: 0.03% to 0.003% FRO/°C depending on range.

Ordering Information
Specify the model type with the appropriate range, e.g., LSW-14.5 for an inclinometer with a range of ±14.5°.

Catalog excerpts

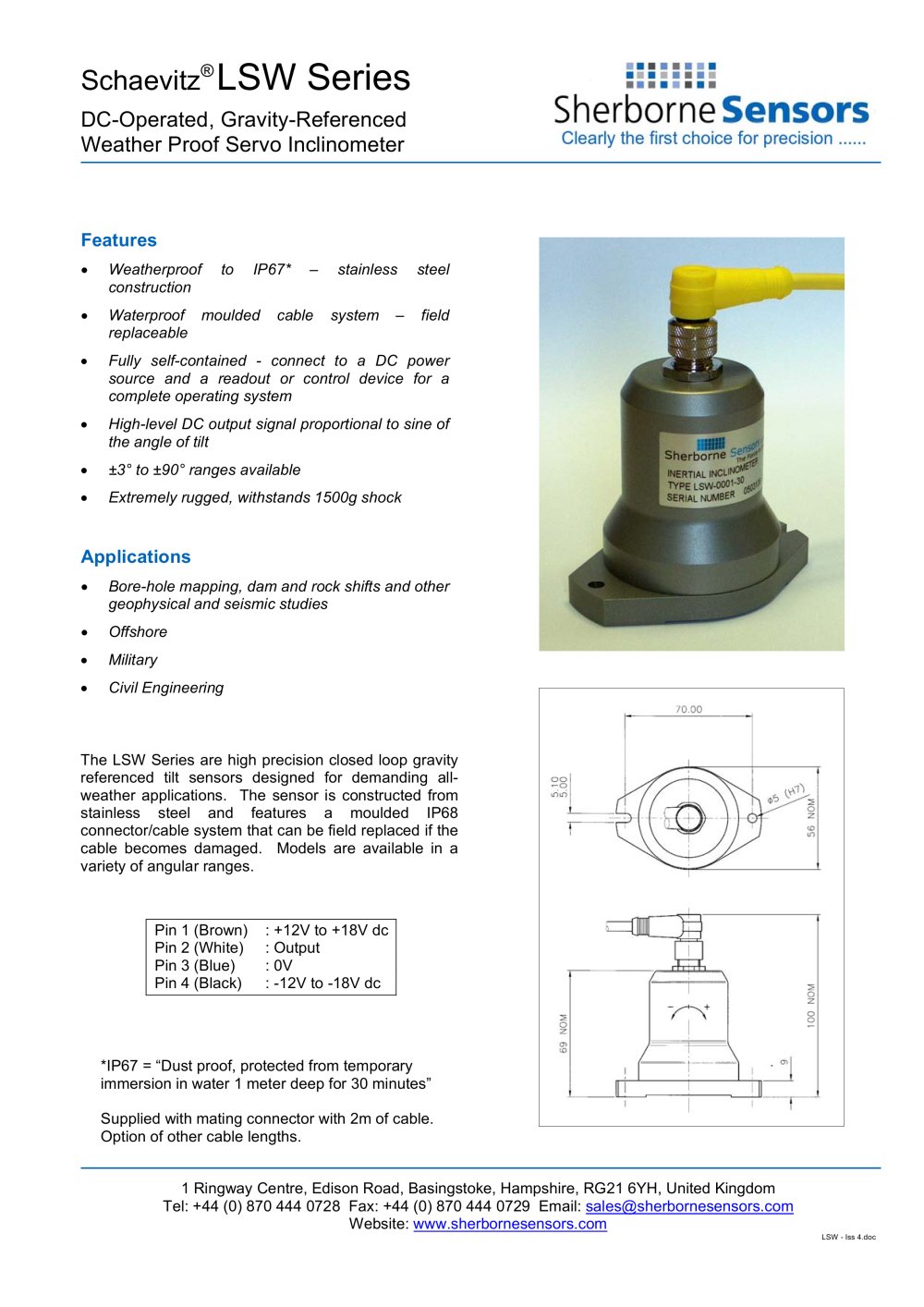

Sherborne Sensors LSW Series Weatherproof Servo Inclinometers-1

Schaevitz® LSW Series DC-Operated, Gravity-Referenced Weather Proof Servo Inclinometer 1 Ringway Centre, Edison Road, Basingstoke, Hampshire, RG21 6YH, United Kingdom Tel: +44 (0) 870 444 0728 Fax: +44 (0) 870 444 0729 Email: [email protected] Website: www.sherbornesensors.com LSW - Iss 4.doc Pin 1 (Brown) : +12V to +18V dc Pin 2 (White) : Output Pin 3 (Blue) : 0V Pin 4 (Black) : -12V to -18V dc *IP67 = “Dust proof, protected from temporary immersion in water 1 meter deep for 30 minutes” Supplied with mating connector with 2m of cable. Option of other cable lengths. Features • Weatherproof to IP67* – stainless steel construction • Waterproof moulded cable system – field replaceable • Fully self-contained - connect to a DC power source and a readout or control device for a complete operating system • High-level DC output signal proportional to sine of the angle of tilt • ±3° to ±90° ranges available • Extremely rugged, withstands 1500g shock Applications • Bore-hole mapping, dam and rock shifts and other geophysical and seismic studies • Offshore • Military • Civil Engineering The LSW Series are high precision closed loop gravity referenced tilt sensors designed for demanding allweather applications. The sensor is constructed from stainless steel and features a moulded IP68 connector/cable system that can be field replaced if the cable becomes damaged. Models are available in a variety of angular ranges.
