Overview
The Schaevitz® LSOC/LSOP is a DC-operated, gravity-referenced servo inclinometer designed for industrial and military applications. It is self-contained, providing a high-level DC output signal proportional to the sine of the angle of tilt, with ranges from ±1° to ±90°. The device is extremely rugged, capable of withstanding shocks up to 1500g.

Features

Self-contained system requiring only a DC power source and a readout or control device.
High-level DC output signal proportional to tilt angle.
Available in ranges from ±1° to ±90°.
Rugged design with 1500g shock resistance.

Applications

Geophysical, seismic, and civil engineering studies.
Marine applications such as ballast transfer systems.
Level control and calibration systems.
Heavy-duty construction control requirements.
Large machinery installation and electronic level applications.

Specifications

Operating temperature range: -18°C to 70°C.
Survival temperature range: -40°C to 70°C.
Constant acceleration overload: 50g.
Shock survival: 1500g, 0.5msec, ½ sine.
Vibration endurance: 35g rms, 20 Hz to 2000 Hz sinusoidal.
Environmental sealing: IP65.

Electrical Specifications

Excitation voltage: ±12 to ±18 Volts DC.
Current consumption: ±15 mA (nominal).
Full range output: ±5 Volts DC.
Output impedance: less than 10 Ω.
Output noise: 0.002 V rms (max).
Non-linearity: 0.05% FRO (max).
Resolution: 0.1 to 4.0 arc seconds depending on range.

Ordering Information
Specify the model type with the appropriate range, e.g., LSOC-14.5 for a model with a connector and ±14.5º range, or LSOP-30 for a model with solder pins and ±30º range. A mating connector (3CON-0009) is available for LSOC models if required.

Catalog excerpts

Sherborne Sensors LSOC/LSOP Series Servo Inclinometers-1

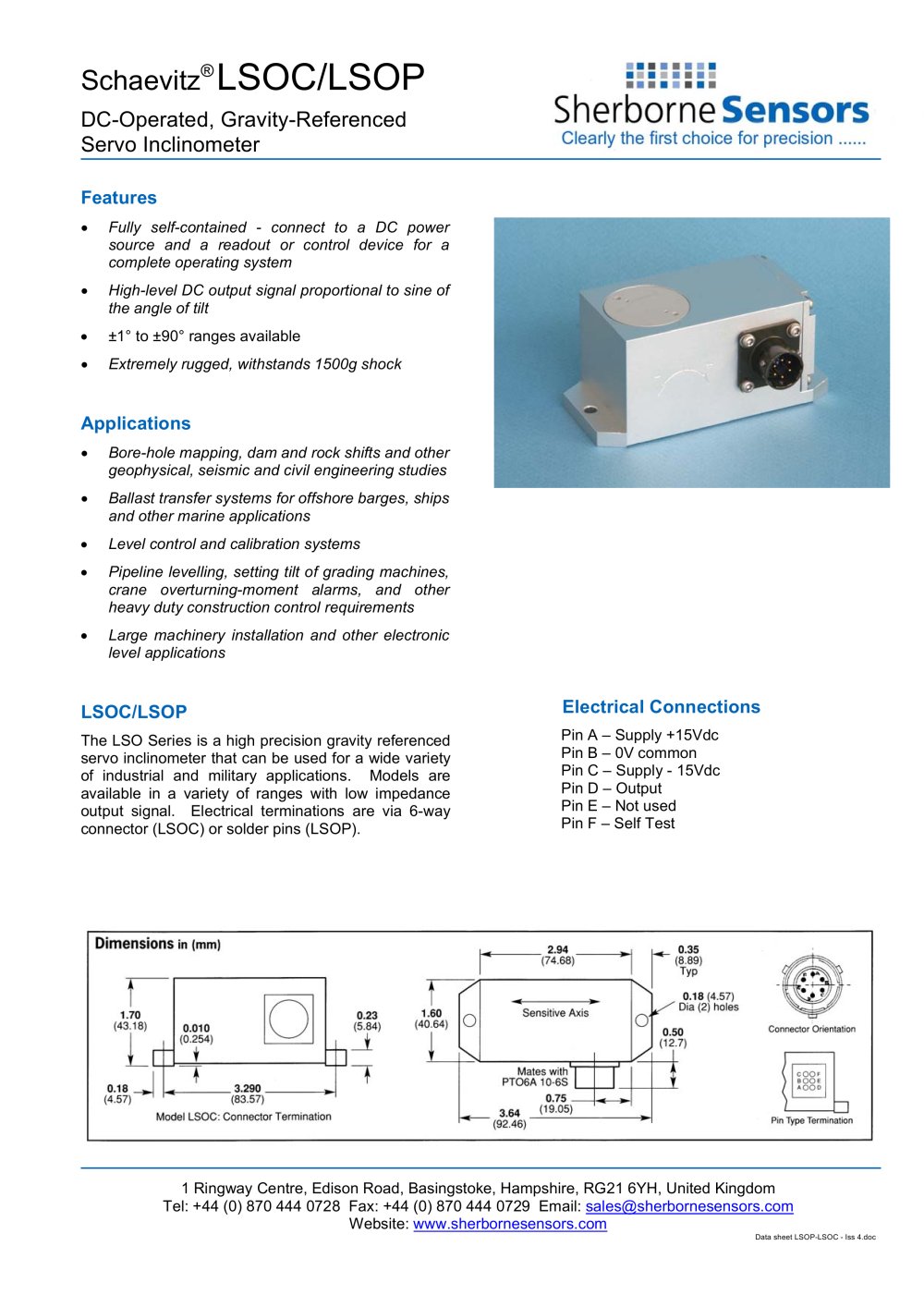

Schaevitz® LSOC/LSOP DC-Operated, Gravity-Referenced Servo Inclinometer 1 Ringway Centre, Edison Road, Basingstoke, Hampshire, RG21 6YH, United Kingdom Tel: +44 (0) 870 444 0728 Fax: +44 (0) 870 444 0729 Email: [email protected] Website: www.sherbornesensors.com Data sheet LSOP-LSOC - Iss 4.doc Features • Fully self-contained - connect to a DC power source and a readout or control device for a complete operating system • High-level DC output signal proportional to sine of the angle of tilt • ±1° to ±90° ranges available • Extremely rugged, withstands 1500g shock Applications • Bore-hole mapping, dam and rock shifts and other geophysical, seismic and civil engineering studies • Ballast transfer systems for offshore barges, ships and other marine applications • Level control and calibration systems • Pipeline levelling, setting tilt of grading machines, crane overturning-moment alarms, and other heavy duty construction control requirements • Large machinery installation and other electronic level applications LSOC/LSOP The LSO Series is a high precision gravity referenced servo inclinometer that can be used for a wide variety of industrial and military applications. Models are available in a variety of ranges with low impedance output signal. Electrical terminations are via 6-way connector (LSOC) or solder pins (LSOP). Electrical Connections Pin A – Supply +15Vdc Pin B – 0V common Pin C – Supply - 15Vdc Pin D – Output Pin E – Not used Pin F – Self Test
