Sherborne Sensors LSI Series Servo Inclinometers

Product catalog summary

Overview
The Schaevitz® LSI Series is a DC-operated, gravity-referenced servo inclinometer designed for industrial and military applications. It provides a high-level DC output signal proportional to the sine of the angle of tilt and is available in ranges of ±14.5°, ±30°, and ±90°.

Features

Fully self-contained system requiring only a DC power source and a readout or control device.
Available in multiple tilt ranges: ±14.5°, ±30°, and ±90°.
Low impedance output signal with solder post electrical terminations.

Applications

Level control of machines and structures.
Safety control of cranes and lifting equipment.
Civil engineering studies.
Marine ballast transfer systems.

Specifications

Operating temperature range: -20°C to 80°C.
Survival temperature range: -40°C to 90°C.
Shock survival: 500g, 0.5msec, ½ sine.
Environmental sealing: IP64.
Excitation voltage options: ±15Vdc or +9V to +36Vdc.
Power consumption: ±0.6W for ±15V version, 1.5W for +9V to +36V version.
Output impedance: less than 10Ω.
Output noise: 2µV/√Hz for ±15V version, 20µV/√Hz for +9V to +36V version.
Non-linearity: 0.02% FRO for ±14.5° and ±30°, 0.05% FRO for ±90°.
Non-repeatability: 0.004% FRO.
Cross-axis sensitivity: 1% FRO.
Zero offset: ±0.050 Volts dc.
Thermal zero shift: 0.003% FRO/°C.
Thermal sensitivity: 0.01% FRO/°C.

Ordering Information
Specify the model type, input supply, and range. Example: LSI-0001-30 for ±15Vdc supply and ±30° range.

Catalog excerpts

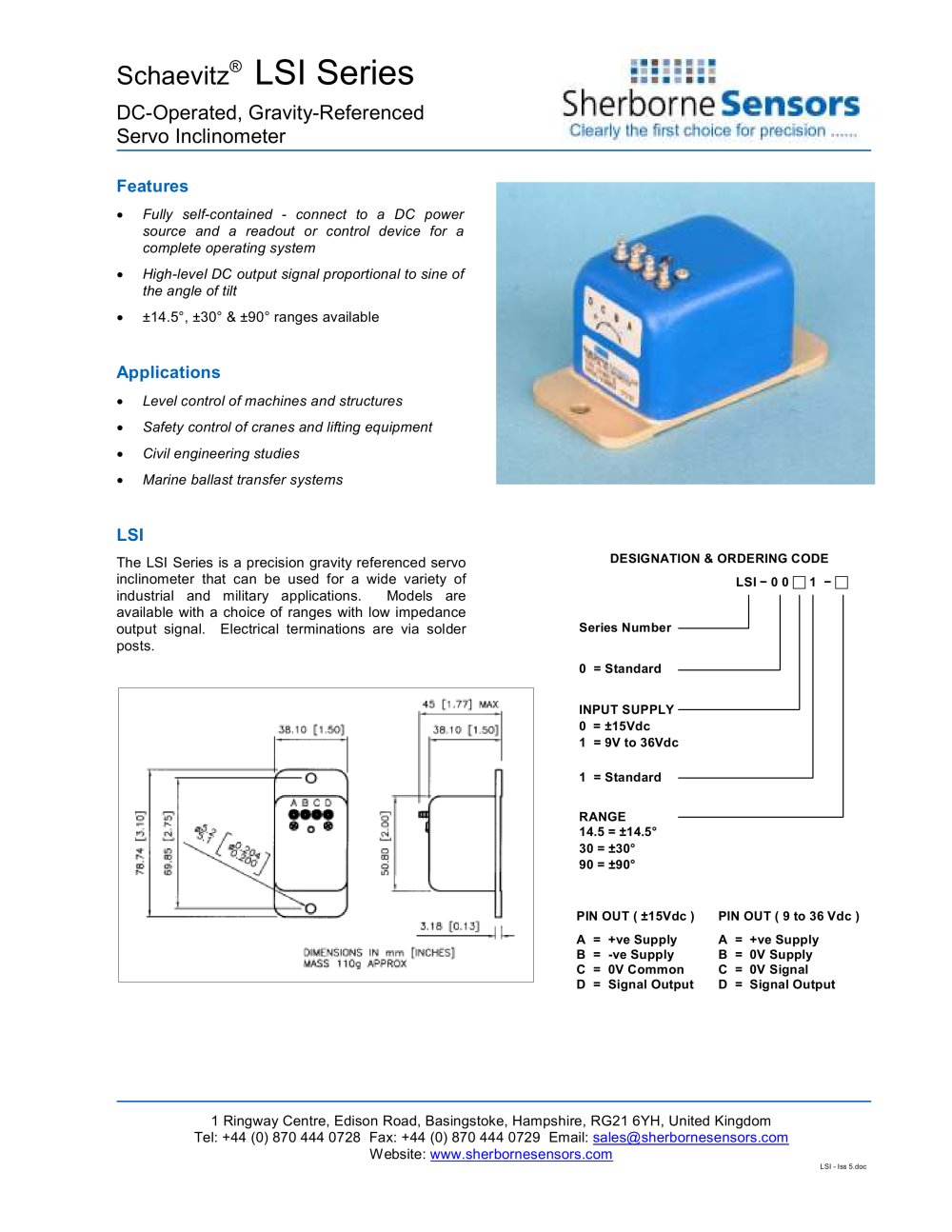

Sherborne Sensors LSI Series Servo Inclinometers-1

Schaevitz® LSI Series DC-Operated, Gravity-Referenced Servo Inclinometer 1 Ringway Centre, Edison Road, Basingstoke, Hampshire, RG21 6YH, United Kingdom Tel: +44 (0) 870 444 0728 Fax: +44 (0) 870 444 0729 Email: [email protected] Website: www.sherbornesensors.com LSI - Iss 5.doc Features • Fully self-contained - connect to a DC power source and a readout or control device for a complete operating system • High-level DC output signal proportional to sine of the angle of tilt • ±14.5°, ±30° & ±90° ranges available Applications • Level control of machines and structures • Safety control of cranes and lifting equipment • Civil engineering studies • Marine ballast transfer systems LSI The LSI Series is a precision gravity referenced servo inclinometer that can be used for a wide variety of industrial and military applications. Models are available with a choice of ranges with low impedance output signal. Electrical terminations are via solder posts. LSI - 0 0 1 - DESIGNATION & ORDERING CODE Series Number 0 = Standard INPUT SUPPLY 0 = ±15Vdc 1 = 9V to 36Vdc 1 = Standard RANGE 14.5 = ±14.5° 30 = ±30° 90 = ±90° PIN OUT ( ±15Vdc ) A = +ve Supply B = -ve Supply C = 0V Common D = Signal Output PIN OUT ( 9 to 36 Vdc ) A = +ve Supply B = 0V Supply C = 0V Signal D = Signal Output
