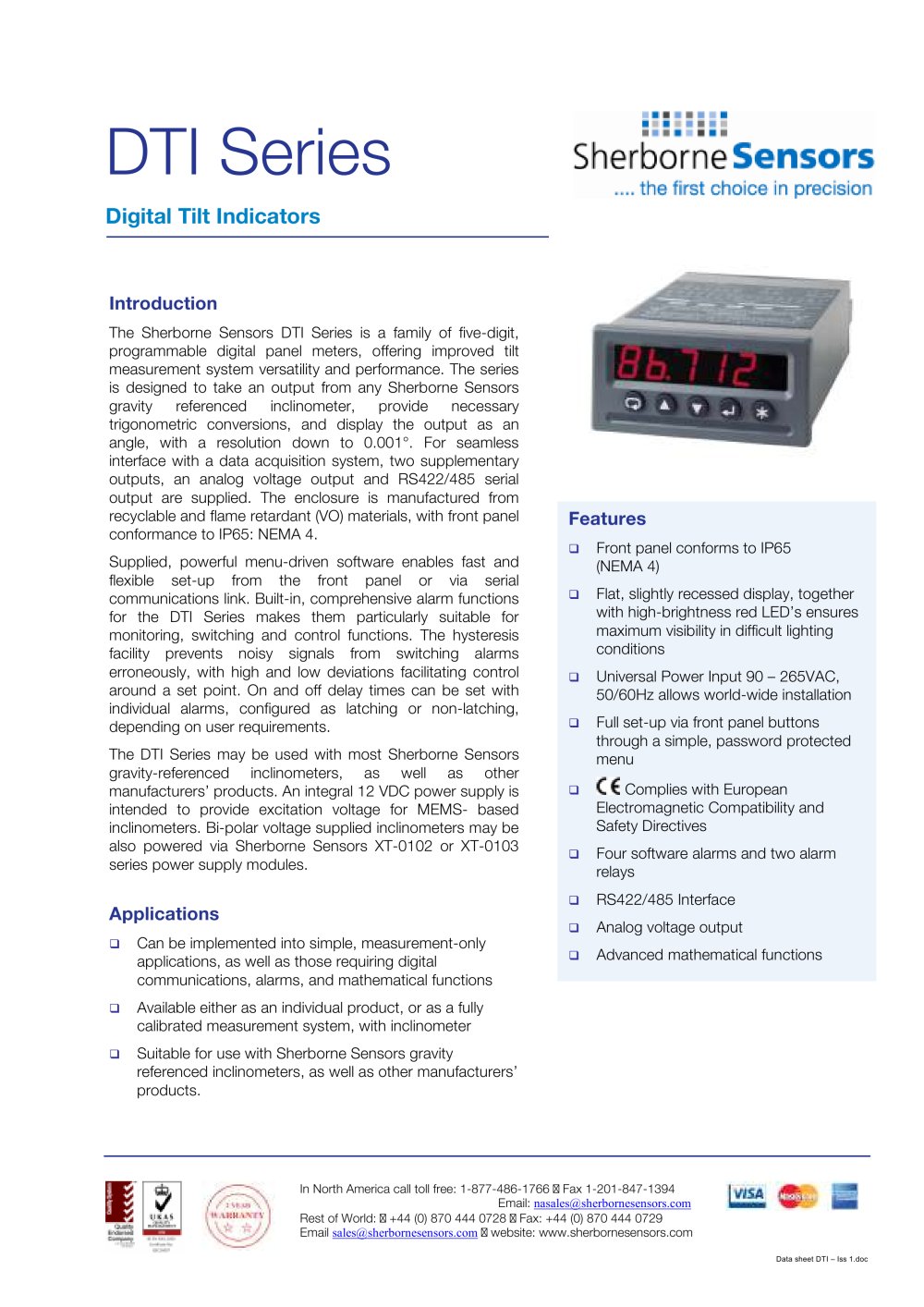

In North America call toll free: 1-877-486-1766 Fax 1-201-847-1394 Email: nasales@sherbornesensors.com Rest of World: +44 (0) 870 444 0728 Fax: +44 (0) 870 444 0729 Email sales@sherbornesensors.com website: www.sherbornesensors.com Data sheet DTI – Iss 1.doc DTI Series Digital Tilt Indicators Features Front panel conforms to IP65 (NEMA 4) Flat, slightly recessed display, together with high-brightness red LED’s ensures maximum visibility in difficult lighting conditions Universal Power Input 90 – 265VAC, 50/60Hz allows world-wide installation Full set-up via front panel buttons through a simple, password protected menu Complies with European Electromagnetic Compatibility and Safety Directives Four software alarms and two alarm relays RS422/485 Interface Analog voltage output Advanced mathematical functions Introduction The Sherborne Sensors DTI Series is a family of five-digit, programmable digital panel meters, offering improved tilt measurement system versatility and performance. The series is designed to take an output from any Sherborne Sensors gravity referenced inclinometer, provide necessary trigonometric conversions, and display the output as an angle, with a resolution down to 0.001°. For seamless interface with a data acquisition system, two supplementary outputs, an analog voltage output and RS422/485 serial output are supplied. The enclosure is manufactured from recyclable and flame retardant (VO) materials, with front panel conformance to IP65: NEMA 4. Supplied, powerful menu-driven software enables fast and flexible set-up from the front panel or via serial communications link. Built-in, comprehensive alarm functions for the DTI Series makes them particularly suitable for monitoring, switching and control functions. The hysteresis facility prevents noisy signals from switching alarms erroneously, with high and low deviations facilitating control around a set point. On and off delay times can be set with individual alarms, configured as latching or non-latching, depending on user requirements. The DTI Series may be used with most Sherborne Sensors gravity-referenced inclinometers, as well as other manufacturers’ products. An integral 12 VDC power supply is intended to provide excitation voltage for MEMS- based inclinometers. Bi-polar voltage supplied inclinometers may be also powered via Sherborne Sensors XT-0102 or XT-0103 series power supply modules. Applications Can be implemented into simple, measurement-only applications, as well as those requiring digital communications, alarms, and mathematical functions Available either as an individual product, or as a fully calibrated measurement system, with inclinometer Suitable for use with Sherborne Sensors gravity referenced inclinometers, as well as other manufacturers’ products.
Open the catalog to page 1
In North America call toll free: (877) 486-1766 Fax (201) 847-1394 Email: nasales@sherbornesensors.com Rest of World: +44 (0) 870 444 0728 Fax: +44 (0) 870 444 0729 Email sales@sherbornesensors.com website: www.sherbornesensors.com Data sheet DTI – Iss 1.doc Advanced Mathematical Functions The DTI series offers a number of advanced math functions, including: Maximum and Minimum (Peak/Valley) Memory Signal Averaging Square Root Auto Zero The Auto Zero function is particularly useful for correcting sensor zero offset errors. Software Alarms Four software alarms are standard. A separate alarm...
Open the catalog to page 2
In North America call toll free: (877) 486-1766 Fax (201) 847-1394 Email: nasales@sherbornesensors.com Rest of World: +44 (0) 870 444 0728 Fax: +44 (0) 870 444 0729 Email sales@sherbornesensors.com website: www.sherbornesensors.com Data sheet DTI – Iss 1.doc Specifications Accuracy 0.05% of reading (Typically 0.02%) Display Type: 14.2mm high brightness red LED Range: –19999 to 99999 Range: –19999 to 99999 Update Rate: 2 per second A/D Converter Dual slope integrating with auto zero Conversion rate: 10 per second Resolution: 16 bit + sign (1ìV) Common mode Rejection: >150dB Series mode...
