Sherborne Sensors A545 Series Single Axis Solid State Linear Accelerometers

Sherborne Sensors A545 Series Single Axis Solid State Linear Accelerometers
2Pages

Catalog excerpts

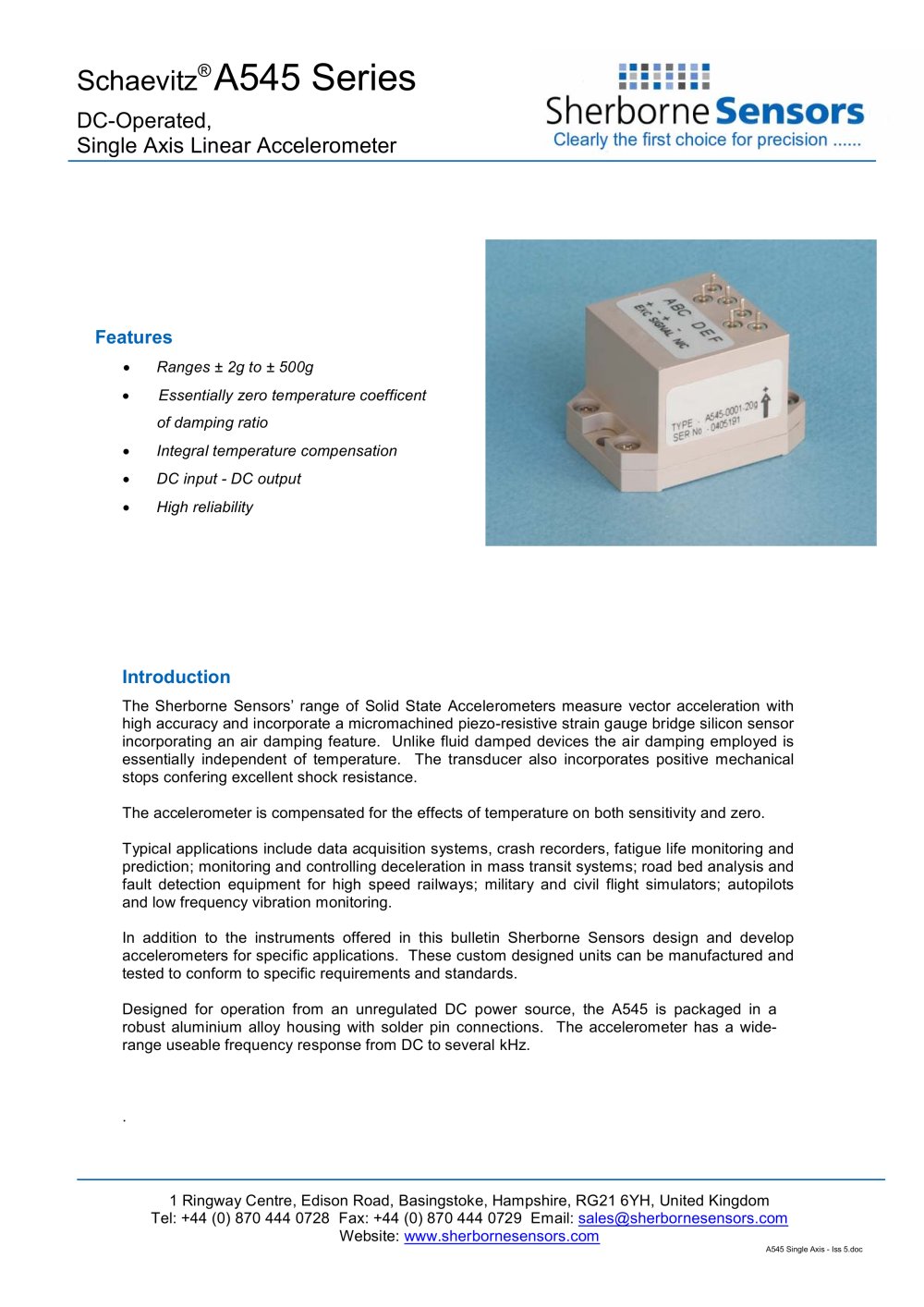

Sherborne Sensors A545 Series Single Axis Solid State Linear Accelerometers - 1

Schaevitz® A545 Series DC-Operated, Single Axis Linear Accelerometer 1 Ringway Centre, Edison Road, Basingstoke, Hampshire, RG21 6YH, United Kingdom Tel: +44 (0) 870 444 0728 Fax: +44 (0) 870 444 0729 Email: sales@sherbornesensors.com Website: www.sherbornesensors.com A545 Single Axis - Iss 5.doc Features • Ranges ± 2g to ± 500g • Essentially zero temperature coefficent of damping ratio • Integral temperature compensation • DC input - DC output • High reliability Introduction The Sherborne Sensors’ range of Solid State Accelerometers measure vector acceleration with high accuracy and incorporate a micromachined piezo-resistive strain gauge bridge silicon sensor incorporating an air damping feature. Unlike fluid damped devices the air damping employed is essentially independent of temperature. The transducer also incorporates positive mechanical stops confering excellent shock resistance. The accelerometer is compensated for the effects of temperature on both sensitivity and zero. Typical applications include data acquisition systems, crash recorders, fatigue life monitoring and prediction; monitoring and controlling deceleration in mass transit systems; road bed analysis and fault detection equipment for high speed railways; military and civil flight simulators; autopilots and low frequency vibration monitoring. In addition to the instruments offered in this bulletin Sherborne Sensors design and develop accelerometers for specific applications. These custom designed units can be manufactured and tested to conform to specific requirements and standards. Designed for operation from an unregulated DC power source, the A545 is packaged in a robust aluminium alloy housing with solder pin connections. The accelerometer has a widerange useable frequency response from DC to several kHz. .

Open the catalog to page 1
