Sherborne Sensors A320 Series Ultra Low Range Accelerometers

Product catalog summary

Overview: The Schaevitz® A320 Series is a line of high precision, gravity-referenced, ultra-low range linear servo accelerometers designed for industrial and aerospace applications. These accelerometers are robust, shock-resistant, and suitable for a variety of uses including geophysical studies, flight test monitoring, and structural monitoring.

Features:

Self-contained system requiring only a DC power source and a readout/control device.
High-level output signal with ranges from ±0.1g to ±2g.
Extremely rugged, capable of withstanding 1500g shock.

Applications:

Geophysical, seismic, and civil engineering studies.
Flight test monitoring.
Structural monitoring.
Low acceleration analysis.

Environmental Characteristics:

Operating Temperature Range: -18°C to 70°C.
Survival Temperature Range: -40°C to 70°C.
Constant Acceleration Overload: 50g.
Shock Survival: 1500g, 0.5msec, ½ sine.
Vibration Endurance: 35g rms, 20 Hz to 2000 Hz sinusoidal.
Environmental Sealing: IP65.

Specifications by Range at 20°C:

Excitation Voltage: ±12 to ±18 Volts DC.
Current Consumption: ±15 mA (nominal).
Full Range Output (FRO): ±5 Volts DC (option of ±10Vdc).
Output Standardisation: ±2% FRO (max).
Output Impedance: 10 Ω (max).
Output Noise: 0.002 Vrms (max).
Non-Linearity: 0.05% FRO (max).
Non-Repeatability: 0.02% to 0.01% FRO (max) depending on range.
Resolution: 0.0005% FRO (max).
Frequency Response (-3dB): 20 Hz to 60 Hz depending on range.
Cross-axis Sensitivity: ±0.002 g/g (max).
Zero Offset: ±0.10 Volts DC (max).
Thermal Zero Shift: ±0.03% to ±0.005% FRO/°C (max) depending on range.
Thermal Sensitivity Shift: ±0.03% to ±0.006% Reading/°C (max) depending on range.

Ordering Information: Specify the model type with the appropriate range. For example, an A323-0001-0.5G is an accelerometer with a connector and a range of ±½ g. A mating connector (3CON-0009) can be specified if required.

Catalog excerpts

Sherborne Sensors A320 Series Ultra Low Range Accelerometers-1

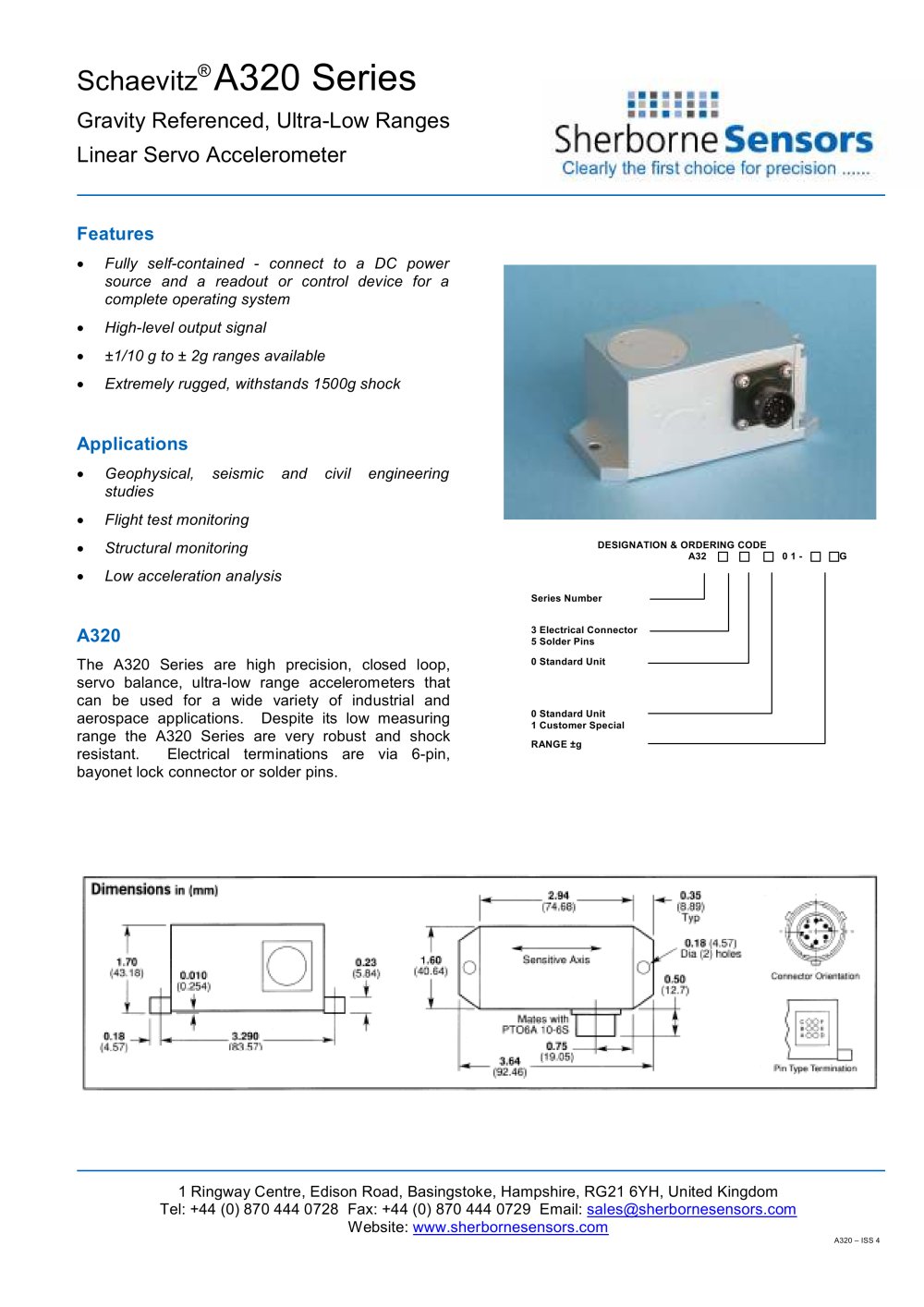

Schaevitz® A320 Series Gravity Referenced, Ultra-Low Ranges Linear Servo Accelerometer 1 Ringway Centre, Edison Road, Basingstoke, Hampshire, RG21 6YH, United Kingdom Tel: +44 (0) 870 444 0728 Fax: +44 (0) 870 444 0729 Email: [email protected] Website: www.sherbornesensors.com A320 – ISS 4 A32 0 1 - G DESIGNATION & ORDERING CODE Series Number 3 Electrical Connector 5 Solder Pins 0 Standard Unit 0 Standard Unit 1 Customer Special RANGE ±g Features • Fully self-contained - connect to a DC power source and a readout or control device for a complete operating system • High-level output signal • ±1/10 g to ± 2g ranges available • Extremely rugged, withstands 1500g shock Applications • Geophysical, seismic and civil engineering studies • Flight test monitoring • Structural monitoring • Low acceleration analysis A320 The A320 Series are high precision, closed loop, servo balance, ultra-low range accelerometers that can be used for a wide variety of industrial and aerospace applications. Despite its low measuring range the A320 Series are very robust and shock resistant. Electrical terminations are via 6-pin, bayonet lock connector or solder pins.
