Sherborne Sensors A260 Series Single Axis Linear Accelerometers

Product catalog summary

Introduction
The A260 Series Gravity Referenced Linear Servo Accelerometer is designed for precision measurement in various applications, including aerospace. It features a closed-loop force balance system and is available in ranges from ±1g to ±20g. The accelerometer is equipped with a self-test facility and operates on a DC input-output system. It is manufactured to ISO 9001:2000 standards and offers options for connectors and solder pins, as well as low pass electronic filters.

Features

High resolution down to 0.05 mg
Flight qualified versions available
Wide operational temperature range from -55°C to +95°C
1g bias option to compensate for Earth's gravity
Galvanic isolation for electrical isolation between input supply and signal output

Applications

Flight test monitoring
Accident data collection
Structural health monitoring
Flight simulators
Braking control on mass transit systems
Road bed analysis
Data acquisition systems
Low frequency analysis

Specifications
Environmental Characteristics

Operating Temperature Range: -55°C to +95°C
Survival Temperature Range: -65°C to +105°C
Constant Acceleration: 100g in all 3 axes without damage
Shock: 100g, 11ms ½ sine
Altitude: 30,000 meters
Environmental Sealing: IP65
EMC Directive: EN 61326:1998

Performance Specifications by Range @ +25°C

Excitation Voltage: 16 to 32 Volts DC
Power Consumption: 1 W (max)
Full Range Output: ±5 Volts DC
Output Impedance: 5000 Ω (nominal)
Output Noise: < 0.005 V rms
Non-linearity: ±0.05% FRO (max)
Hysteresis: 0.02% FRO (max)
Resolution: 0.0005% FRO (max)
Natural Frequency: 90 to 150 Hz (nominal)
Sensitive Axis-to-Case Misalignment: < ±0.2 degrees
Cross-axis Sensitivity: ±0.2% FRO (max)
Zero Offset: < ±0.1% FRO
Damping Ratio: 0.6 ± 0.1
Insulation Resistance: ≥ 20 MΩ
Thermal Zero Shift: ≤ ±0.002% FRO/°C
Thermal Sensitivity Shift: ≤ ±0.02% Reading/°C
Weight: 180 grams (connector version), 155 grams (solder pin version)

Electrical Connections

Pin A: 16 to 32Vdc
Pin B: Power Supply Ground
Pin C: Signal Ground
Pin D: Output
Pin F: Self Test

Ordering Information
Model Designation & Ordering Code: A263 - 01 g (g Range, 0 Standard, 3 1g Bias, 0 Standard Unit, 1 Special)

Catalog excerpts

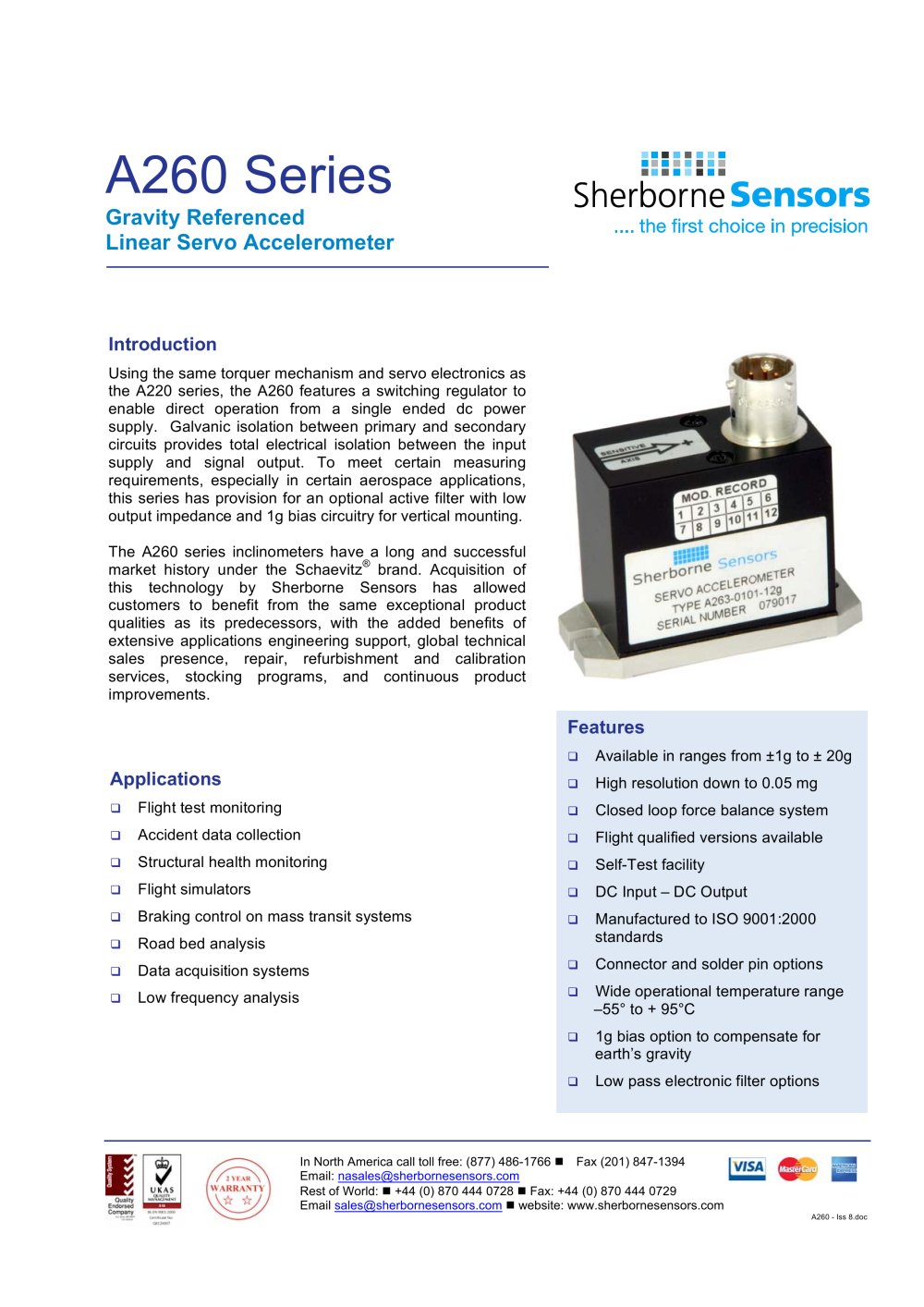

Sherborne Sensors A260 Series Single Axis Linear Accelerometers-1
