YX70020D

Product catalog summary

General Information
The document provides specifications for the YX70022D TFT-LCD display module by Shenzhen Yousee Technology Co., Ltd. It is a 7.0-inch module with a resolution of 1200(RGB) x 1920 dots, featuring a white LED backlight and a MIPI interface.

Module Outline Drawing
Detailed schematics are included, highlighting the importance of maintaining specific tolerances to prevent light leakage and ensure proper fit within device housings.

Interface Description
The module uses a MIPI interface, standard for high-speed data transmission in display modules.

Absolute Maximum Ratings
Maximum voltage and temperature limits are specified: logic supply voltage (IOVCC) should not exceed 3.6V, and the operating temperature range is -20°C to 70°C.

Electrical Characteristics
Typical operating voltages are 3.3V for analog and 1.8V for logic circuits. Specific values for VGH, VGL, AVDD, and VCOM are not provided, indicating they may depend on application requirements.

Backlight Characteristics
The backlight consists of 56 LEDs in a series-parallel configuration, with a typical forward voltage of 22.4V at 160mA.

Optical Characteristics
The display offers a contrast ratio of 800:1, brightness of 2000 cd/m², an 80-degree viewing angle in all directions, and a response time of 25 ms.

Recommended Operating Sequence
Power on/off sequences are provided for 2-power and 3-power configurations, with a note to refer to the IC specification for details.

Production Process Control
A detailed workflow for production is outlined, including quality checks and corrective actions for nonconforming products.

Inspection Specifications
Criteria for visual and functional inspection are detailed, including allowable defect sizes and quantities for various imperfections.

Reliability Test Conditions
Tests include high and low temperature storage, temperature cycling, and humidity resistance, with criteria for post-test inspection to ensure no defects like air bubbles or glass cracks.

Precautions for Using LCD Modules
Handling precautions emphasize the fragility of the glass and polarizer, advising against excessive force and contact with hard objects. Proper grounding of assembly tools is recommended to prevent damage.

Handling Precautions for LCM

Ensure tools are grounded to minimize electromagnetic interference.
Handle LCM with care, using anti-static gloves and holding by the edges.
Avoid stacking LCMs or using sharp objects on them.
Apply logic voltage before analog voltage when powering on, and reverse the order when powering off.
Long-term display of the same pattern may cause ghost images, resolved by resting the display.
Maintain temperature and humidity within specified ranges to prevent degradation.

Storage Precautions

Store LCMs in sealed polyethylene bags in a dark place, maintaining temperature between 0-35°C and humidity between 40-60% RH.
Avoid contact with other objects to prevent damage to the polarizer surface.

Transportation Precautions

Handle with care to avoid damage to packaging; do not stack cartons over two meters high.
Ensure waterproof and moisture-proof measures during transportation.

Packing Specification

Dimensions: 370*300*150

Special Remarks

Specifications are binding for quality inspection.
Customers should report any issues or disagreements promptly.
Yousee is not responsible for damages due to neglect of precautions.
Limited warranty covers functional defects for one year from shipment date, unless otherwise agreed.

Catalog excerpts

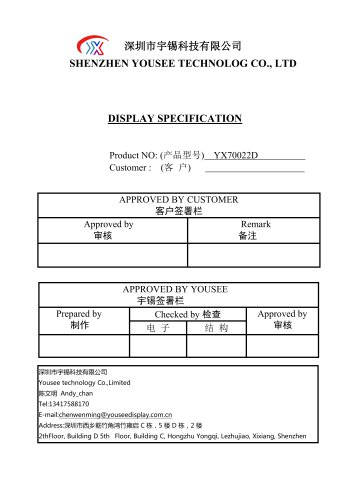

深圳市宇锡科技有限公司 SHENZHEN YOUSEE TECHNOLOG CO., LTD DISPLAY SPECIFICATION Product NO: (产品型号) YX70022D Customer : (客户) APPROVED BY CUSTOMER 客户签署栏 Approved by Remark 审核备注 APPROVED BY YOUSEE 宇锡签署栏 Checked by 检查电子结构深圳市宇锡科技有限公司 Yousee technology Co.,Limited 陈文明 Andy_chan Tel:13417588170 E-mail:[email protected] Address:深圳市

Open the catalog to page 1

Shenzhen Yousee Technology Co., Ltd Product Specification Version: First Edition

Open the catalog to page 2

Shenzhen Yousee Technology Co., Ltd Product Specification CONTENTS 目录 1.GENERAL INFORMATION - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -4 基本描述 2 .MODULE OUTLINE DRAWIN - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -5 产品外形图 3.INTERFACE DESCRIPTION - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -6 接口定义 4.ABSOLUTE MAXIMUM RATINGS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -7 极限参数 (IC) 5.ELECTRICAL CHARACTERISTICS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -7 模块电气特性 6.BACKLIGHT...

Open the catalog to page 3

Shenzhen Yousee Technology Co., Ltd Product Specification 1. GENERAL INFORMATION 基本描述 Contents 内容 TFT-LCD /TRANSMISSIVE Module size 模组尺寸 Number of Dots 点阵 Outline dimensions 外形尺寸 Active area 有效区域 Pixel pitch 像素 Viewing direction 视角方向 Backlight type 背光类型 LCD Driver IC LCD 驱动 IC Interface type 接口类型 Version: First Edition

Open the catalog to page 4

Polarizer Absorption AXIS SHENZHEN YOUSEE TECHNOLOG CO.LTD 设计注意事项： 1.图中FRAME VA为推荐TP视窗位置、大小，建议TP视窗位置、大小不要超过FRAME VA。 2.整机机壳带泡棉产品，建议客户机壳泡棉进入LCD单边0.5MM MIN, 防止漏光。 3.整机机壳不带

Open the catalog to page 5

Shenzhen Yousee Technology Co., Ltd Product Specification 3. INTERFACE DESCRIPTION ^P^^ Pin NO. Version: First Edition

Open the catalog to page 6

Shenzhen Yousee Technology Co., Ltd Product Specification 4. ABSOLUTE MAXIMUM RATINGS Version: First Edition

Open the catalog to page 7

Shenzhen Yousee Technology Co., Ltd Product Specification 6. BACKLIGHT CHARACTERISTICS 背光电气特性 Item 项目 Forward voltage 正向电压 Connection mode 连接类型 7. OPTICAL CHAYACTERISTICS 光学特性 Item Response time 响应时间 Contrast ratio Color gamut range 视角范围 LCM brightness 亮度 CIE (X,Y) Chromaticity 色度坐标 Note1.Response time is the time required for the display to transition from White to black(Rise Time,Tr)and from black to white(Decay Time,Tf).For additional information see FIG1...

Open the catalog to page 8

Shenzhen Yousee Technology Co., Ltd Product Specification Note2.contrast Ratio(CR) is defined mathematically by the following formula ,For more information see FIG2. Contrast Ratio(CR)=Average Surface Luminance with all white pixels/ Average Surface Luminance with all black pixels 备注 2.对比度是由以下公式计算所得。详见 FIG2. 对比度=显示白色画面时平均表面亮度（P1，P2,……)/显示黑色画面时平均表面亮度（P1，P2,……) FIG2. Measuring method for Contrast ratio,surface luminance,Luminance uniformity,CIE(X,Y) chromaticity. 对比度，表面亮度，均匀度，CIE 坐标测试方法 Note4.Viewing angle is the angel at which contrast ratio is greater than a specific value.For TET module,the...

Open the catalog to page 9

Shenzhen Yousee Technology Co., Ltd Product Specification CSTN 屏，对比度特定值为 2，视角由横轴（X 轴），竖轴（Y 轴）同 Z 轴（垂直与 LCD 表面）之间的夹角来定义，详见 FIG3.。 FIG3 The definition of viewing angle 视角定义 Note6.CIE(X,Y)chromaticity is the Center point value.For more information see FIG2. 备注 6.选择中心点，分别测试 X，Y 值，详见 FIG2.。 Note7.For Viewing angle and response time testing,the testing date is base on Autronic-Melchers's ConScope.Series instruments.For contrast ratio,Surface Luminance,Luminance uniformity and CIE,the testing date is base on CS-2000(BM-7/CA310) photo detector. 备注 7.视角和响应时间，测试数据基于 Autronil Melchers's Conoscope 系列测试仪器，而对比度，...

Open the catalog to page 10

Shenzhen Yousee Technology Co., Ltd Product Specification 8. Recommended Operating Sequence 8.1 Power on/off sequence with 2- power Version: First Edition

Open the catalog to page 11

Shenzhen Yousee Technology Co., Ltd Product Specification 8.2 Power on/off sequence with 3- power 'VOOI RISE MIPI Lanes MIPI Active NOTE: This section is only for reference,Details please refer to the IC specification. Version: First Edition

Open the catalog to page 12

Shenzhen Yousee Technology Co., Ltd Product Specification 9. RESET INPUT TIMING Tflble 47: R-sset Timintj 3. During the Resetting period, the display will be blanked (The display enters the blanking sequence, which maximum time is 120 ms, when Reset Starts in the Sleep Out mode. The display remains the blank state in the Sleep In mode.j and then return to Default condition for Hardware Reset. 4. Spike Rejection can also be applied during a valid reset pulse, as shown below: NOTE: This section is only for reference,Details please refer to the IC specification. Version: First Edition

Open the catalog to page 13

Shenzhen Yousee Technology Co., Ltd Product Specification 10. Production process control 生产过程控制管理 WORKFLOW CHART 工作流程图 Responsibility accounting 权责单位 Flow Chart 流程图 Production design 生产计划排程 Production arrangements 生产准备 First article production 首件生产 First article assurance 首件确认 Process Inspection 制程检验 Product Material Control 生产计划与物料控制 Production department 生产部 Production department 生产部 Quality department 品质部 Production department or Quality department 生产部/品质部 Quality department 品质部 Production department 生产部 Production department or Quality department 生产部/品质部 Production department or storage...

Open the catalog to page 14

Shenzhen Yousee Technology Co., Ltd Product Specification 11. INSPECTION SPECIFICATIONS 品质检验标准不良项目

Open the catalog to page 15

Shenzhen Yousee Technology Co., Ltd Product Specification LCD Note;The rest of the test items according to our standards Version: First Edition

Open the catalog to page 16

Shenzhen Yousee Technology Co., Ltd Product Specification 12. RELIABILITY TEST CONDITIONS NO. Version: First Edition

Open the catalog to page 17

Shenzhen Yousee Technology Co., Ltd Product Specification 13. PRECAUTIONS FOR USING LCD MODULES 模组使用注意事项 1. Handing precautions 使用注意事项 1.1 The display panel is made of glass and polarizer.As glass is fragile.It tends to become or chipped during handing especially on the edges.Please avoid dropping or jarring.Do not subject it to a mechanical shock by dropping it or impact. 显示屏由玻璃和偏光片组成，由于玻璃是脆的，使用过程中要特别注意边缘区，请防止跌落或震动，不能机械碰撞。 1.2 Do not apply excessive force to the display surface or the adjoining areas since this may cause the color tone to vary.Do not touch the display with bare hands,This will...

Open the catalog to page 18

YX70020D

YX70020D
