VPH SERIES High Purity Polypropylene Housings

Product catalog summary

Ordering Guide Overview
This document provides an ordering guide for Shelco's VPH Series High Purity Polypropylene Housings. It includes model descriptions, bracket kits, and specifications for each model.

Model Descriptions and Bracket Kits

VPH-10-DOE: Natural Poly Sump and Head, holds one double open end 9 7/8" long cartridge, 3/4" NPT connections with Viton O-ring. Comes with Bracket Kit 1.
VPH-12-222: Natural Poly Sump and Head, holds one 10" single open end 222/Fin or Flat style cartridge, 3/4" NPT connections with Viton O-ring. Comes with Bracket Kit 2.
VPH-20-DOE: Natural Poly Sump and Head, holds one double open end 20" long cartridge, 3/4" NPT connections with Viton O-ring. Comes with Bracket Kit 2.
VPH-20-222: Natural Poly Sump and Head, holds one 20" single open end 222/Flat only style cartridge, 3/4" NPT connections with Viton O-ring. Comes with Bracket Kit 2.

Product Features

Constructed from 100% Natural Polypropylene, offering a cost-effective alternative to stainless steel vessels.
Available in DOE or 222 configurations with ultra-smooth contact surfaces for sensitive fluids.
Meets FDA requirements for potable water and food and beverage applications.
Available in single and double lengths with ¾” NPT connections.
Maximum water temperature of 125°F and maximum pressure of 125 psi.
Standard Viton O-ring, with EPDM available as a spare part.

Dimensions

Model	A	B	C	D	E	F	G	H
VPH-10-DOE	4.72"	1.57"	1.18"	1.18"	3/4"	10.5"	11.0"	11.8"
VPH-12-222	5.35"	2.22"	2.28"	0.23"	3/4"	12.00"	12.98"	14.0"
VPH-20-DOE	5.35"	2.22"	2.28"	0.23"	3/4"	20.47"	21.26"	22.80"
VPH-20-222	5.35"	2.22"	2.28"	0.23"	3/4"	20.47"	21.26"	22.80"

Bracket Kits

Both kits include a bracket, sump wrench, and screws.
Bracket Kit #1 is for VPH-10-DOE.
Bracket Kit #2 is for VPH-12-222, VPH-20-DOE, and VPH-20-222.

Contact Information

Shelco Filters, a division of the Tinny Corporation, can be contacted at 860.854.6121 or 800.543.5843. Email: [email protected]. Address: 100 Bradley Street, Middletown, CT 06457, USA.

Catalog excerpts

VPH SERIES High Purity Polypropylene Housings-1

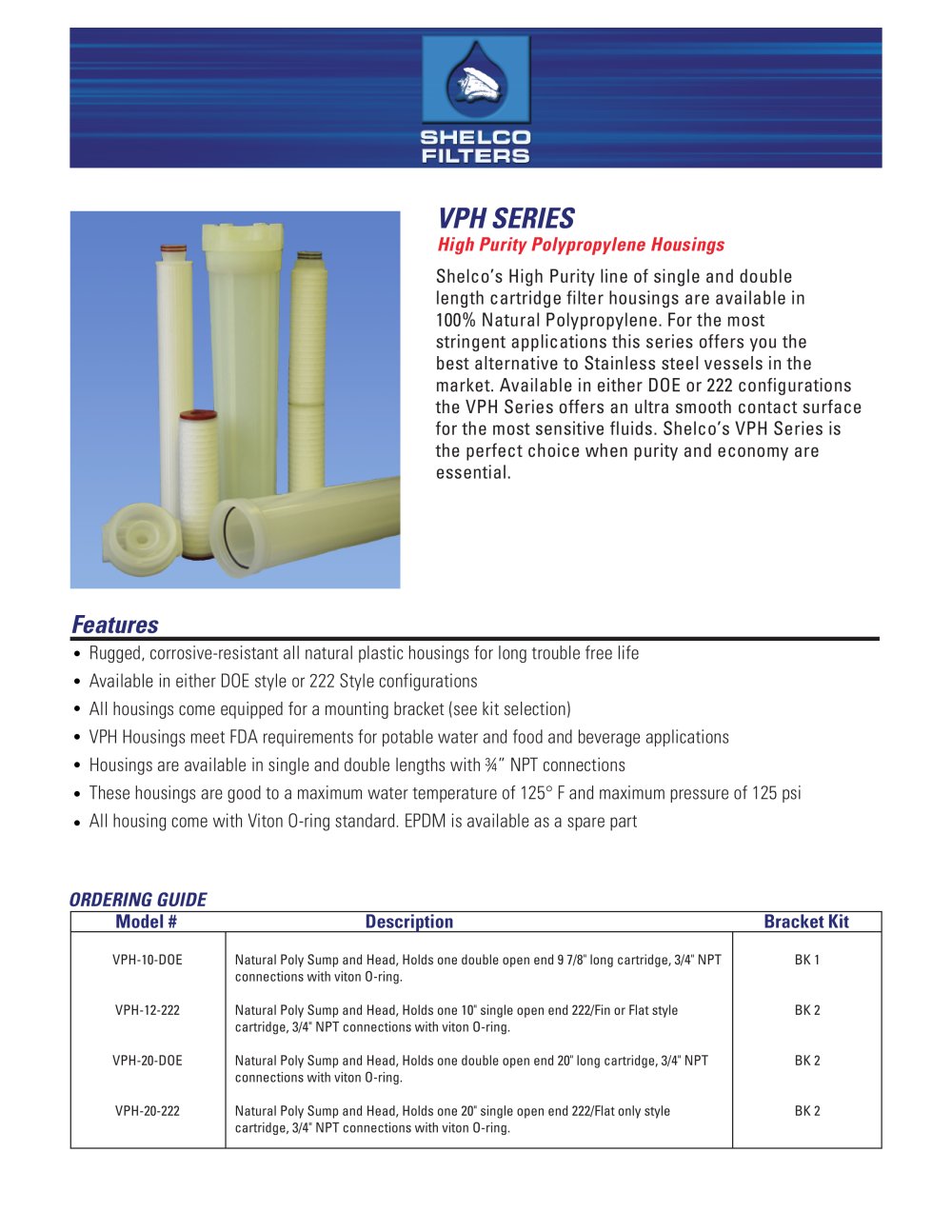

• • • • • • • ORDERING GUIDE Model # Description Bracket Kit VPH-10-DOE VPH-12-222 VPH-20-DOE VPH-20-222 BK 1 BK 2 BK 2 BK 2 Natural Poly Sump and Head, Holds one double open end 9 7/8" long cartridge, 3/4" NPT connections with viton O-ring. Natural Poly Sump and Head, Holds one 10" single open end 222/Fin or Flat style cartridge, 3/4" NPT connections with viton O-ring. Natural Poly Sump and Head, Holds one double open end 20" long cartridge, 3/4" NPT connections with viton O-ring. Natural Poly Sump and Head, Holds one 20" single open end 222/Flat only style cartridge, 3/4" NPT connections with viton O-ring. Shelco’s High Purity line of single and double length cartridge filter housings are available in 100% Natural Polypropylene. For the most stringent applications this series offers you the best alternative to Stainless steel vessels in the market. Available in either DOE or 222 configurations the VPH Series offers an ultra smooth contact surface for the most sensitive fluids. Shelco’s VPH Series is the perfect choice when purity and economy are essential. VPH SERIES High Purity Polypropylene Housings Rugged, corrosive-resistant all natural plastic housings for long trouble free life Available in either DOE style or 222 Style configurations All housings come equipped for a mounting bracket (see kit selection) VPH Housings meet FDA requirements for potable water and food and beverage applications Housings are available in single and double lengths with ¾” NPT connections These housings are good to a maximum water temperature of 125° F and maximum pressure of 125 psi All housing come with Viton O-ring standard. EPDM is available as a spare part Features
