SPH SERIES Non-Metallic Plastic Housings

SPH SERIES Non-Metallic Plastic Housings

Product catalog summary

Overview: The document provides technical specifications and details for SPH Series non-metallic plastic filter housings, designed for durability and compatibility with corrosive and sensitive fluids. These housings are constructed from high-quality FDA-grade materials and are suitable for various temperature and pressure conditions.

Specifications: The housings are made from polypropylene, with a maximum water temperature of 125°F (52°C) and pressure of 125 psi (8.75 bar). High-temperature versions are made from reinforced nylon, suitable for up to 200°F (93°C). Clear sumps are made from Styrene-Acrylonitrile, while opaque sumps are made from polypropylene. Standard O-rings are EPDM, with Viton available as a spare part.

Performance: The housings are designed to withstand a burst test of 500 psi and a cycle test of 150,000 cycles from 0 to 125 psi. They are compatible with standard DOE style cartridges.

Models and Dimensions: The document lists various models with specific dimensions and features, including residential and commercial options, heavy-duty versions, BB style housings, valve-in-head models, and high-temperature housings. Each model is detailed with head and sump materials, cartridge length, pipe size, style, pressure rating, and bracket kit availability.

Bracket Kits: Bracket kits include a bracket, sump wrench, and screws. They are available for different housing models and styles.

Contact Information: Shelco Filters, a division of the Tinny Corporation, provides contact details for inquiries, including phone numbers, fax, email, and website.

Catalog excerpts

SPH SERIES Non-Metallic Plastic Housings-1

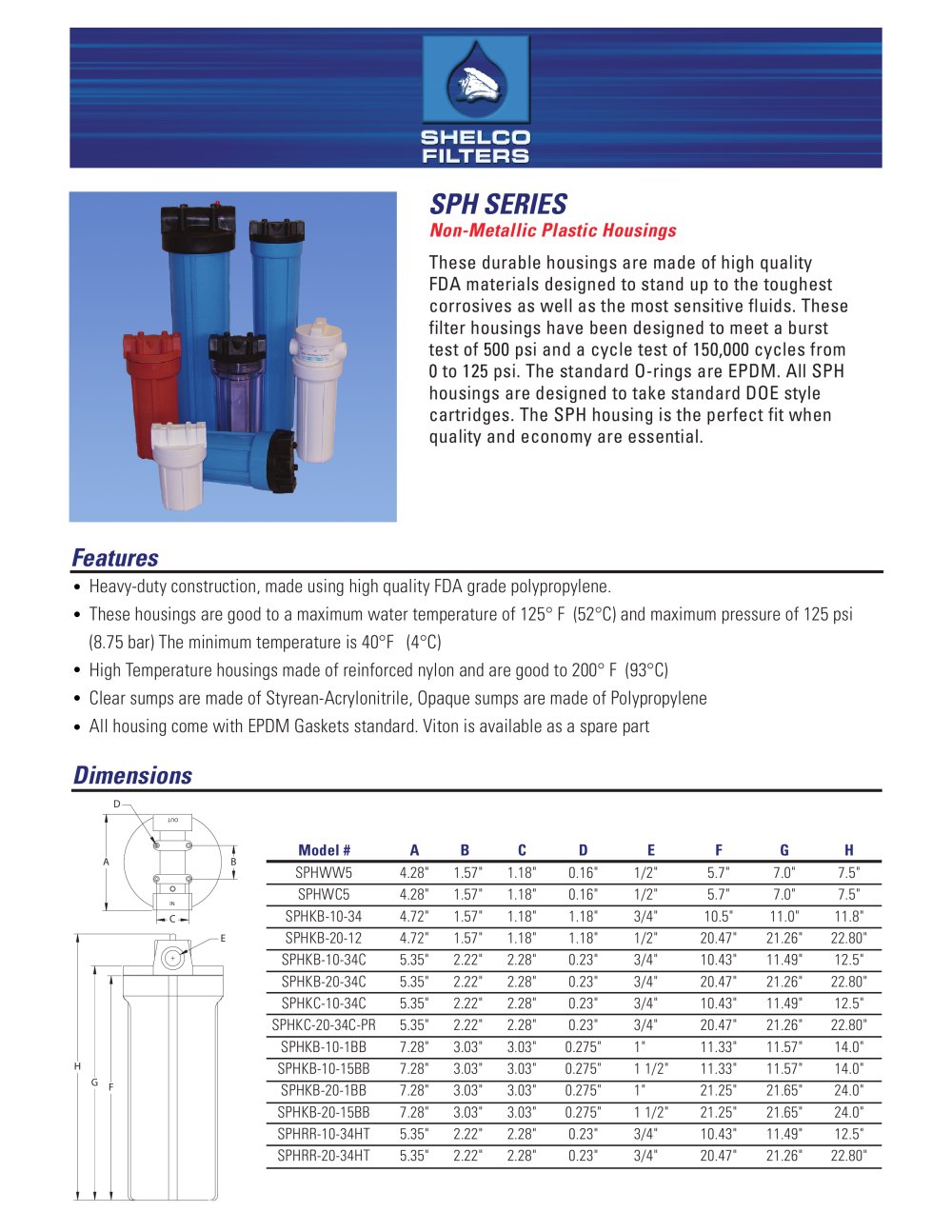

• • • • • These durable housings are made of high quality FDA materials designed to stand up to the toughest corrosives as well as the most sensitive fluids. These filter housings have been designed to meet a burst test of 500 psi and a cycle test of 150,000 cycles from 0 to 125 psi. The standard O-rings are EPDM. All SPH housings are designed to take standard DOE style cartridges. The SPH housing is the perfect fit when quality and economy are essential. SPH SERIES Non-Metallic Plastic Housings Heavy-duty construction, made using high quality FDA grade polypropylene. These housings are good to a maximum water temperature of 125° F (52°C) and maximum pressure of 125 psi (8.75 bar) The minimum temperature is 40°F (4°C) High Temperature housings made of reinforced nylon and are good to 200° F (93°C) Clear sumps are made of Styrean-Acrylonitrile, Opaque sumps are made of Polypropylene All housing come with EPDM Gaskets standard. Viton is available as a spare part Features Dimensions SPHWW5 SPHWC5 SPHKB-10-34 SPHKB-20-12 SPHKB-10-34C SPHKB-20-34C SPHKC-10-34C SPHKC-20-34C-PR SPHKB-10-1BB SPHKB-10-15BB SPHKB-20-1BB SPHKB-20-15BB SPHRR-10-34HT SPHRR-20-34HT Model # 4.28" 4.28" 4.72" 4.72" 5.35" 5.35" 5.35" 5.35" 7.28" 7.28" 7.28" 7.28" 5.35" 5.35" A 1.18" 1.18" 1.18" 1.18" 2.28" 2.28" 2.28" 2.28" 3.03" 3.03" 3.03" 3.03" 2.28" 2.28" C 0.16" 0.16" 1.18" 1.18" 0.23" 0.23" 0.23" 0.23" 0.275" 0.275" 0.275" 0.275" 0.23" 0.23" D 1/2" 1/2" 3/4" 1/2" 3/4" 3/4" 3/4" 3/4" 1" 1 1/2" 1" 1 1/2" 3/4" 3/4" E 5.7" 5.7" 10.5" 20.47" 10.43" 20.47" 10.43" 20.47" 11.33" 11.33" 21.25" 21.25" 10.43" 20.47" F 7.0" 7.0" 11.0" 21.26" 11.49" 21.26" 11.49" 21.26" 11.57" 11.57" 21.65" 21.65" 11.49" 21.26" G 7.5" 7.5" 11.8" 22.80" 12.5" 22.80" 12.5" 22.80" 14.0" 14.0" 24.0" 24.0" 12.5" 22.80" H 1.57" 1.57" 1.57" 1.57" 2.22" 2.22" 2.22" 2.22" 3.03" 3.03" 3.03" 3.03" 2.22" 2.22" B IN OUT A B C D G F H E
