SJCH SERIES Single Jumbo Cartridge Housings

SJCH SERIES Single Jumbo Cartridge Housings
2Pages

Catalog excerpts

SJCH SERIES Single Jumbo Cartridge Housings - 1

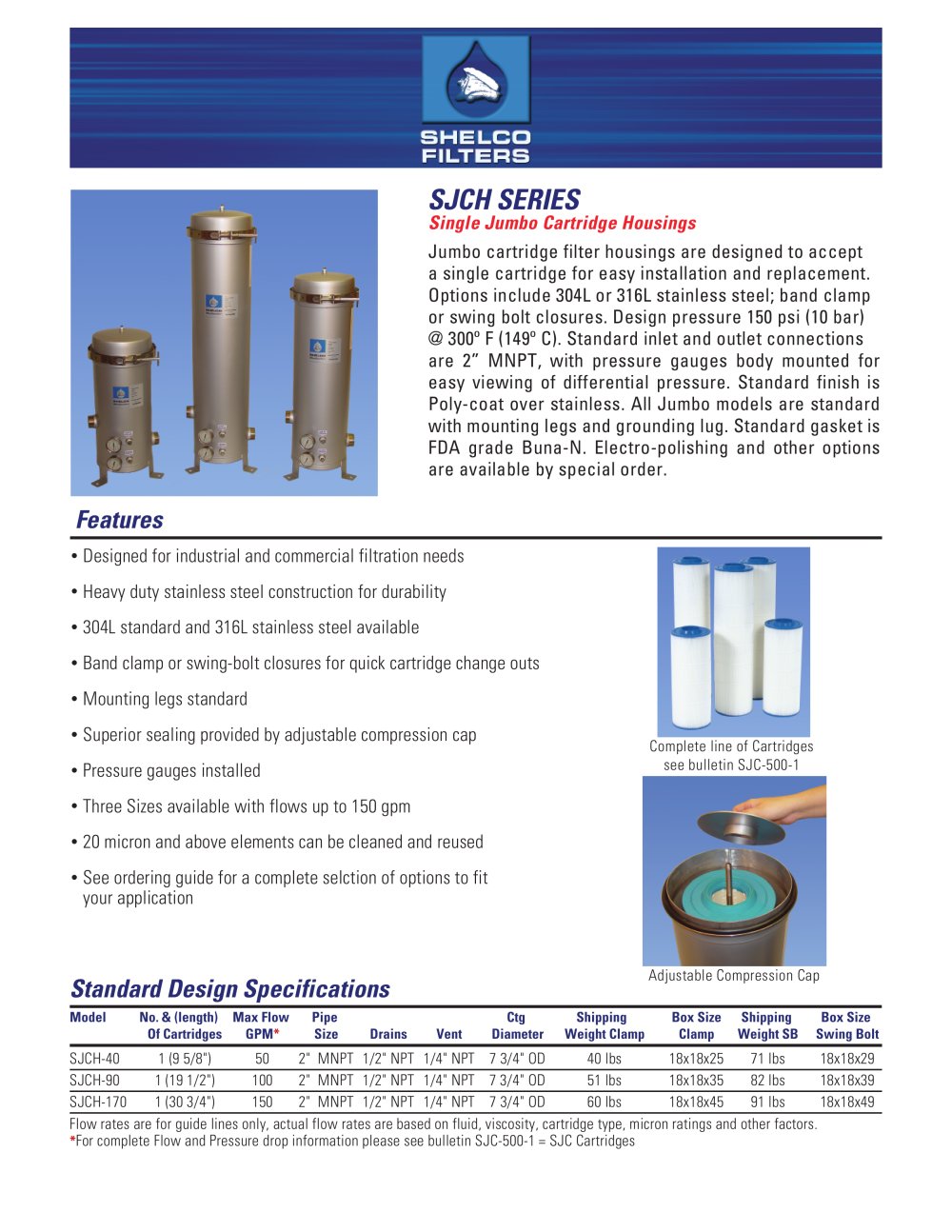

Jumbo cartridge filter housings are designed to accept a single cartridge for easy installation and replacement. Options include 304L or 316L stainless steel; band clamp or swing bolt closures. Design pressure 150 psi (10 bar) @ 300º F (149º C). Standard inlet and outlet connections are 2” MNPT, with pressure gauges body mounted for easy viewing of differential pressure. Standard finish is Poly-coat over stainless. All Jumbo models are standard with mounting legs and grounding lug. Standard gasket is FDA grade Buna-N. Electro-polishing and other options are available by special order. SJCH SERIES Single Jumbo Cartridge Housings Features • Designed for industrial and commercial filtration needs • Heavy duty stainless steel construction for durability • 304L standard and 316L stainless steel available • Band clamp or swing-bolt closures for quick cartridge change outs • Mounting legs standard • Superior sealing provided by adjustable compression cap • Pressure gauges installed • Three Sizes available with flows up to 150 gpm • 20 micron and above elements can be cleaned and reused • See ordering guide for a complete selction of options to fit your application Standard Design Specifications Complete line of Cartridges see bulletin SJC-500-1 Adjustable Compression Cap Model No. & (length) Max Flow Pipe Ctg Shipping Box Size Shipping Box Size Of Cartridges GPM* Size Drains Vent Diameter Weight Clamp Clamp Weight SB Swing Bolt SJCH-40 1 (9 5/8") 50 2" MNPT 1/2" NPT 1/4" NPT 7 3/4" OD 40 lbs 18x18x25 71 lbs 18x18x29 SJCH-90 1 (19 1/2") 100 2" MNPT 1/2" NPT 1/4" NPT 7 3/4" OD 51 lbs 18x18x35 82 lbs 18x18x39 SJCH-170 1 (30 3/4") 150 2" MNPT 1/2" NPT 1/4" NPT 7 3/4" OD 60 lbs 18x18x45 91 lbs 18x18x49 Flow rates are for guide lines only, actual flow rates are based on fluid, viscosity, cartridge type, micron ratings and other factors. *For complete Flow and Pressure drop information please see bulletin SJC-500-1 = SJC Cartridges

Open the catalog to page 1

SJCH SERIES Single Jumbo Cartridge Housings - 2

MicroVantage™, MicroSentry™, ShelcoFilters®, and the Shelco Filters logo are registered trademarks of the Tinny Corporation Shelco Filters is a division of the Tinny Corporation. Dimensions ORDERING GUIDE Bulletin: SJCH-500.10 © 2005 Shelco Filters SJCH - 170 C - 316 - 2F - EP - OL - E Product Cartridge Series Closure Material Connection Type Finish Options Gasket Code Style SJCH 40 = 40 Series 90 = 90 Series 170 = 170 Series C = V Band Clamp SB = Swing Bolt Blank = 304L 316 = 316L Blank = 2” MNPT 1.5MNPT = 1 ½” MNPT BSP = 2” BSP - Nipple 1F = 1” Flange 1.5F = 1 ½” Flange 2F = 2” Flange 1TC...
