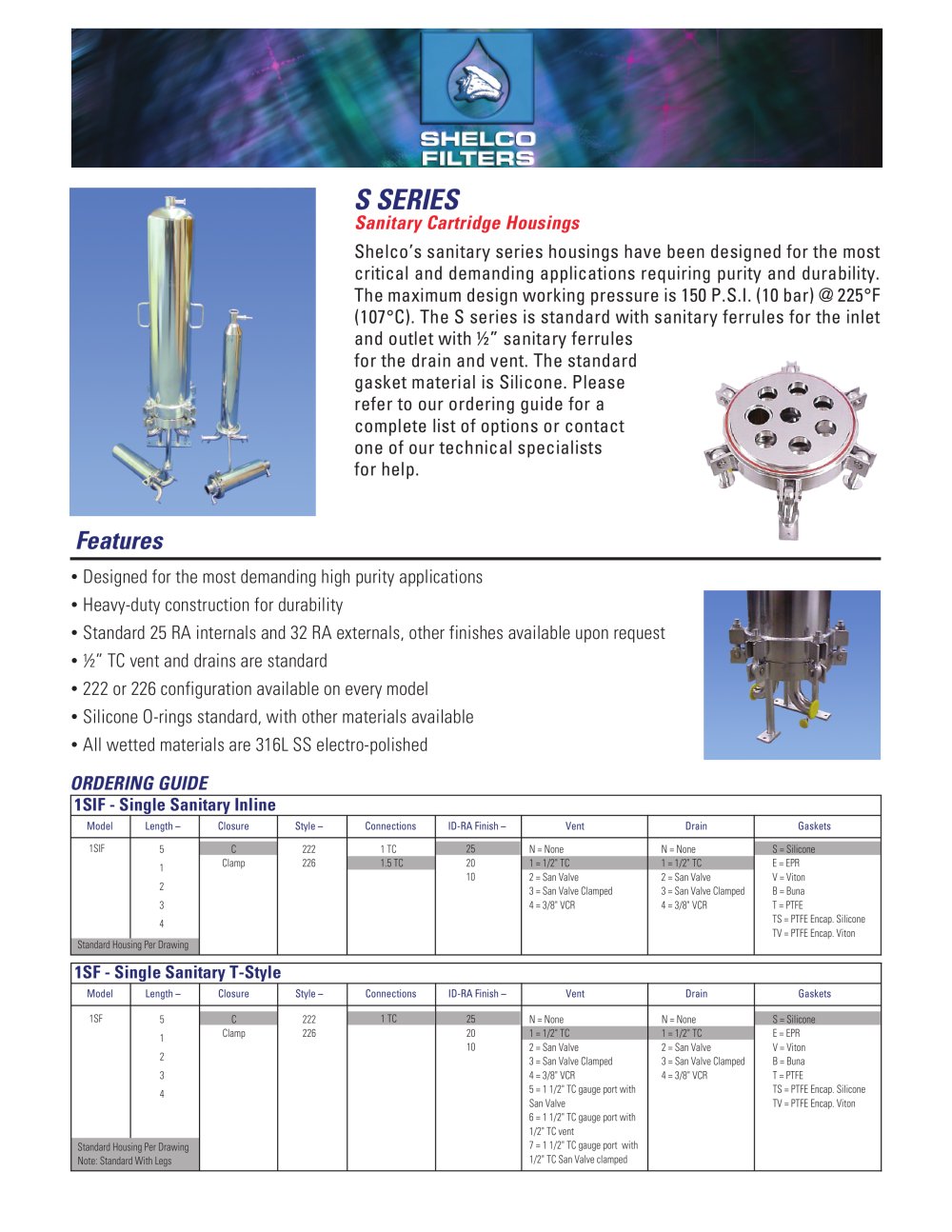

Shelco’s sanitary series housings have been designed for the most critical and demanding applications requiring purity and durability. The maximum design working pressure is 150 P.S.I. (10 bar) @ 225°F (107°C). The S series is standard with sanitary ferrules for the inlet and outlet with ½” sanitary ferrules for the drain and vent. The standard gasket material is Silicone. Please refer to our ordering guide for a complete list of options or contact one of our technical specialists for help. S SERIES Sanitary Cartridge Housings Features • Designed for the most demanding high purity applications • Heavy-duty construction for durability • Standard 25 RA internals and 32 RA externals, other finishes available upon request • ½” TC vent and drains are standard • 222 or 226 configuration available on every model • Silicone O-rings standard, with other materials available • All wetted materials are 316L SS electro-polished ORDERING GUIDE 1SIF - Single Sanitary Inline Model Length – Closure Style – Connections ID-RA Finish – Vent Drain Gaskets 1SIF 5 1 2 3 4 C Clamp 222 226 1 TC 1.5 TC 25 20 10 N = None 1 = 1/2" TC 2 = San Valve 3 = San Valve Clamped 4 = 3/8" VCR N = None 1 = 1/2" TC 2 = San Valve 3 = San Valve Clamped 4 = 3/8" VCR S = Silicone E = EPR V = Viton B = Buna T = PTFE TS = PTFE Encap. Silicone TV = PTFE Encap. Viton Standard Housing Per Drawing 1SF - Single Sanitary T-Style Model Length – Closure Style – Connections ID-RA Finish – Vent Drain Gaskets 1SF 5 1 2 3 4 C Clamp 222 226 1 TC 25 20 10 N = None 1 = 1/2" TC 2 = San Valve 3 = San Valve Clamped 4 = 3/8" VCR 5 = 1 1/2" TC gauge port with San Valve 6 = 1 1/2" TC gauge port with 1/2" TC vent 7 = 1 1/2" TC gauge port with 1/2" TC San Valve clamped N = None 1 = 1/2" TC 2 = San Valve 3 = San Valve Clamped 4 = 3/8" VCR S = Silicone E = EPR V = Viton B = Buna T = PTFE TS = PTFE Encap. Silicone TV = PTFE Encap. Viton Standard Housing Per Drawing Note: Standard With Legs

Open the catalog to page 1

S SERIES Sanitary Cartridge Housings - 2

MicroVantage™, MicroSentry™, ShelcoFilters®, and the Shelco Filters logo are registered trademarks of the Tinny Corporation Shelco Filters is a division of the Tinny Corporation. Bulletin: SAN-500.6 © 2005 Shelco Filters 3SFV - Sanitary 3 Round T-Style Clamp Closure Model Length – Closure Style – Connections ID-RA Finish – Vent Drain Gaskets 3SFV 1 2 3 4 C Clamp 222 226 1.5 TC 2 TC 1.5 BW 2 BW 25 20 10 N = None 1 = 1/2" TC 2 = San Valve 3 = San Valve Clamped 4 = 3/8" VCR 5 = 1 1/2" TC gauge port with San Valve 6 = 1 1/2" TC gauge port with 1/2" TC vent 7 = 1 1/2" TC gauge port with 1/2" TC...
