MicroVantage ™ MAT Series - PTFE PTFE Membrane Filter Elements

MicroVantage ™ MAT Series - PTFE PTFE Membrane Filter Elements
2Pages

Catalog excerpts

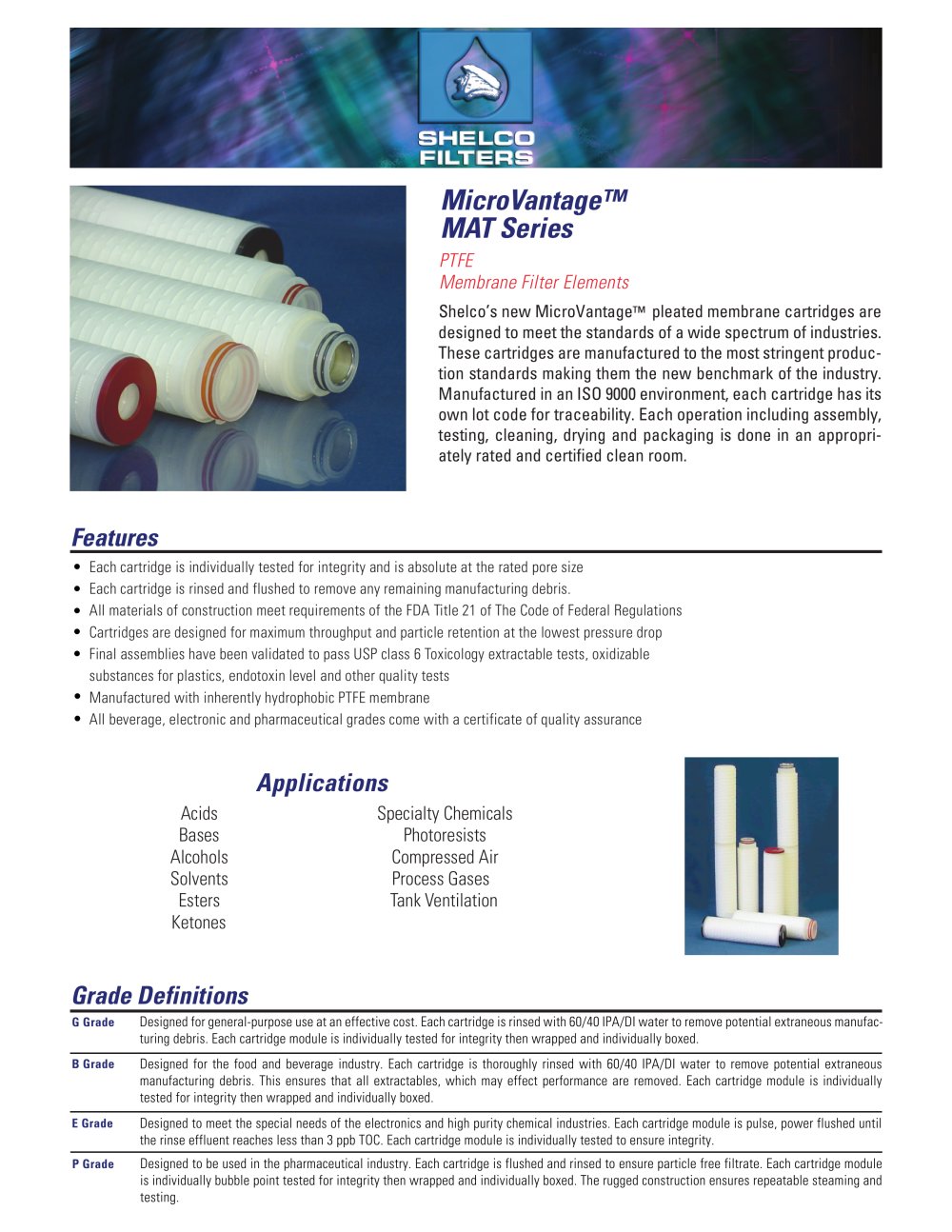

MicroVantage ™ MAT Series - PTFE PTFE Membrane Filter Elements - 1

• • • • • Features Grade Definitions Shelco’s new MicroVantage™ pleated membrane cartridges are designed to meet the standards of a wide spectrum of industries. These cartridges are manufactured to the most stringent production standards making them the new benchmark of the industry. Manufactured in an ISO 9000 environment, each cartridge has its own lot code for traceability. Each operation including assembly, testing, cleaning, drying and packaging is done in an appropriately rated and certified clean room. MicroVantage™ MAT Series PTFE Membrane Filter Elements Each cartridge is individually tested for integrity and is absolute at the rated pore size Each cartridge is rinsed and flushed to remove any remaining manufacturing debris. All materials of construction meet requirements of the FDA Title 21 of The Code of Federal Regulations Cartridges are designed for maximum throughput and particle retention at the lowest pressure drop Final assemblies have been validated to pass USP class 6 Toxicology extractable tests, oxidizable substances for plastics, endotoxin level and other quality tests Manufactured with inherently hydrophobic PTFE membrane All beverage, electronic and pharmaceutical grades come with a certificate of quality assurance Applications Acids Bases Alcohols Solvents Esters Ketones Specialty Chemicals Photoresists Compressed Air Process Gases Tank Ventilation Designed for general-purpose use at an effective cost. Each cartridge is rinsed with 60/40 IPA/DI water to remove potential extraneous manufacturing debris. Each cartridge module is individually tested for integrity then wrapped and individually boxed. G Grade B Grade E Grade Designed for the food and beverage industry. Each cartridge is thoroughly rinsed with 60/40 IPA/DI water to remove potential extraneous manufacturing debris. This ensures that all extractables, which may effect performance are removed. Each cartridge module is individually tested for integrity then wrapped and individually boxed. Designed to meet the special needs of the electronics and high purity chemical industries. Each cartridge module is pulse, power flushed until the rinse effluent reaches less than 3 ppb TOC. Each cartridge module is individually tested to ensure integrity. • • P Grade Designed to be used in the pharmaceutical industry. Each cartridge is flushed and rinsed to ensure particle free filtrate. Each cartridge module is individually bubble point tested for integrity then wrapped and individually boxed. The rugged construction ensures repeatable steaming and testing.

Open the catalog to page 1

MicroVantage ™ MAT Series - PTFE PTFE Membrane Filter Elements - 2

SHELCO FILTERS tel: 860.854.6121 800.543.5843 fax: 860.854.6120 e-mail: info@shelco.com www.shelco.com 100 Bradley Street . Middletown, CT 06457 . USA Product Specifications Pore Size Retention Ratings 0.1, 0.22, 0.45, 1.0 and 3.0 Microns Pharmaceutical Grade available in 0.1 and 0.22 only Materials of Construction Filtration Media: PTFE Filtration Media Support: Polypropylene End Caps: Polypropylene Center Core: Polypropylene Outer Support Cage: Polypropylene Method of Construction: Thermally Bonded Gaskets and O-Rings Buna, Viton, Silicone, EPR, Teflon Encapsulated Silicone or Viton...
