MicroSentry ™ - MS SERIES Wound Filter Cartridges

Product catalog summary

Overview: Shelco Filters has developed the MicroSentry™ MS Series Wound Filter Cartridges, designed for high-efficiency filtration across various industries. These cartridges are produced using advanced computerized machinery, ensuring precision and consistency in the winding process.

Applications: The cartridges are compatible with a wide range of substances including potable liquids, organic solvents, oils, acids, alkalies, oxidizing agents, and more. They are suitable for use in sectors such as food and beverage, chemicals, petrochemical, and wastewater treatment.

Material Selection Guide: The guide provides compatibility ratings for different filter media such as FDA Cotton, Polypropylene, Rayon, Polyester, Glass Fiber, and Nylon. Ratings range from 'Not Recommended' to 'Excellent' based on the substance being filtered.

Product Specifications: The ordering guide details the product code structure, including options for media type, length, core, micron rating, and end treatment. Various materials and configurations are available to meet specific filtration needs.

Operating Conditions: Recommended change-out pressure is 25 PSID, with a maximum differential pressure of 60 PSI at ambient temperature. Temperature ratings vary by cartridge material, with polypropylene cores supporting up to 180°F and metal cores up to 750°F.

Filter Housings: Shelco offers a range of filter housings, from single element to multi-round and bag housings, suitable for different flow rates and filtration requirements.

Additional Information: For further compatibility, flow rates, and temperature requirements, consultation with the factory or local Shelco distributor is advised. FDA-approved materials are available for applications involving potable and edible liquids.

Catalog excerpts

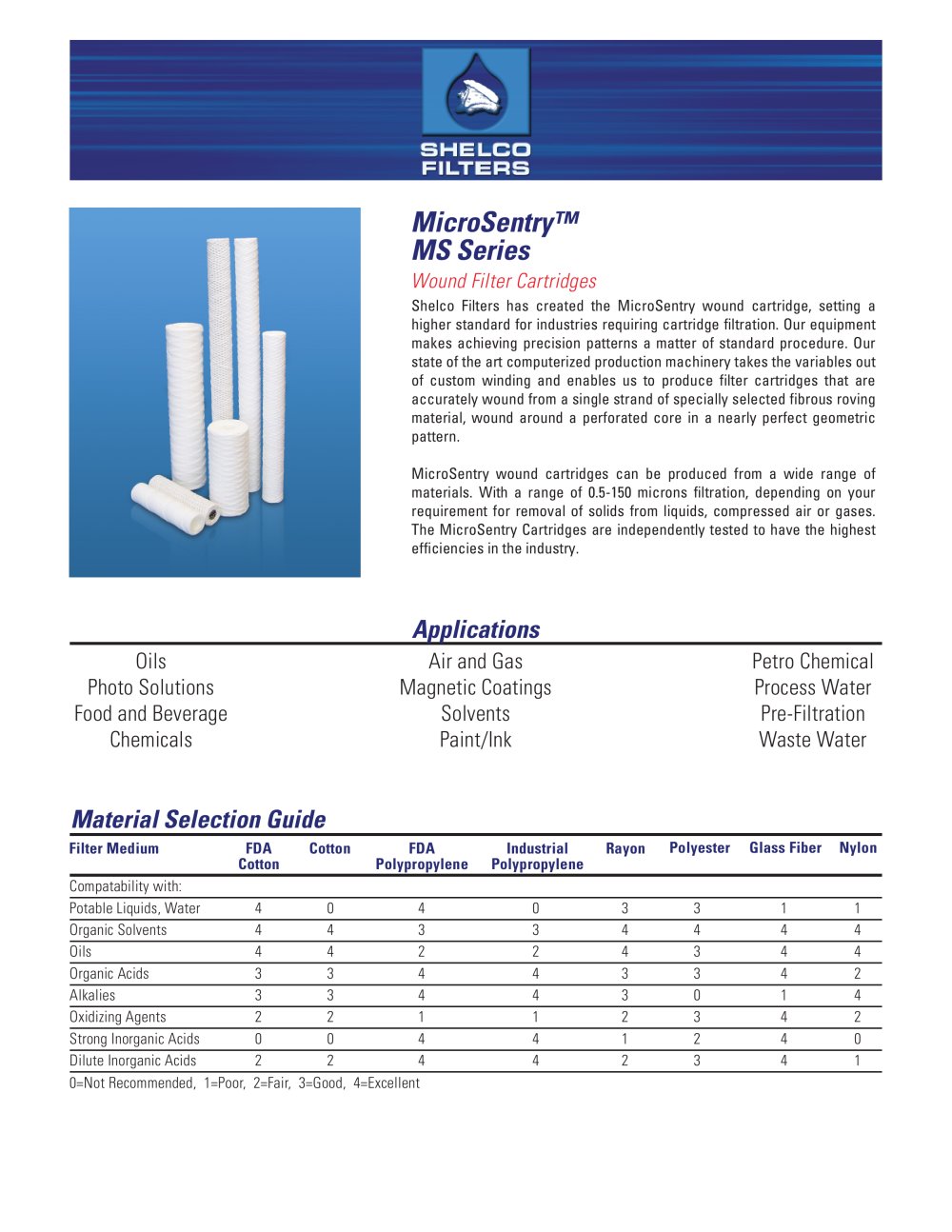

MicroSentry ™ - MS SERIES Wound Filter Cartridges-1

Applications MicroSentry™ MS Series Wound Filter Cartridges Material Selection Guide Compatability with: Potable Liquids, Water Organic Solvents Oils Organic Acids Alkalies Oxidizing Agents Strong Inorganic Acids Dilute Inorganic Acids Oils Photo Solutions Food and Beverage Chemicals Petro Chemical Process Water Pre-Filtration Waste Water Air and Gas Magnetic Coatings Solvents Paint/Ink Shelco Filters has created the MicroSentry wound cartridge, setting a higher standard for industries requiring cartridge filtration. Our equipment makes achieving precision patterns a matter of standard procedure. Our state of the art computerized production machinery takes the variables out of custom winding and enables us to produce filter cartridges that are accurately wound from a single strand of specially selected fibrous roving material, wound around a perforated core in a nearly perfect geometric pattern. MicroSentry wound cartridges can be produced from a wide range of materials. With a range of 0.5-150 microns filtration, depending on your requirement for removal of solids from liquids, compressed air or gases. The MicroSentry Cartridges are independently tested to have the highest efficiencies in the industry. Filter Medium 4 4 4 3 3 2 0 2 FDA Cotton 4 3 2 4 4 1 4 4 FDA Polypropylene 3 4 4 3 3 2 1 2 Rayon 3 4 3 3 0 3 2 3 Polyester 1 4 4 4 1 4 4 4 Glass Fiber 1 4 4 2 4 2 0 1 Nylon 0 3 2 4 4 1 4 4 Industrial Polypropylene 0 4 4 3 3 2 0 2 Cotton 0=Not Recommended, 1=Poor, 2=Fair, 3=Good, 4=Excellent

Open the catalog to page 1

MicroSentry ™ - MS SERIES Wound Filter Cartridges-2

SHELCO FILTERS tel: 860.854.6121 800.543.5843 fax: 860.854.6120 e-mail: [email protected] www.shelco.com 100 Bradley Street . Middletown, CT 06457 . USA Product Specifications Example: MS10PP5 ORDERING GUIDE MS 10 C S 10 N 2 EXP Product Code Length Core Micron Core Cover MS Media 0.5 135 10 20 25 30 50 75 100 150 Blank = None N = Non-Woven W = Woven Diameter End Treatment Bulletin: MSC-400.4 © 2005 Shelco Filters MicroVantage™, MicroSentry™, ShelcoFilters®, and the Shelco Filters logo are registered trademarks of the Tinny Corporation Shelco Filters is a division of the Tinny Corporation. 47 =...
