MicroSentry ™ - ME SERIES Nominal Rated Pleated Cartridges

MicroSentry ™ - ME SERIES Nominal Rated Pleated Cartridges
2Pages

Catalog excerpts

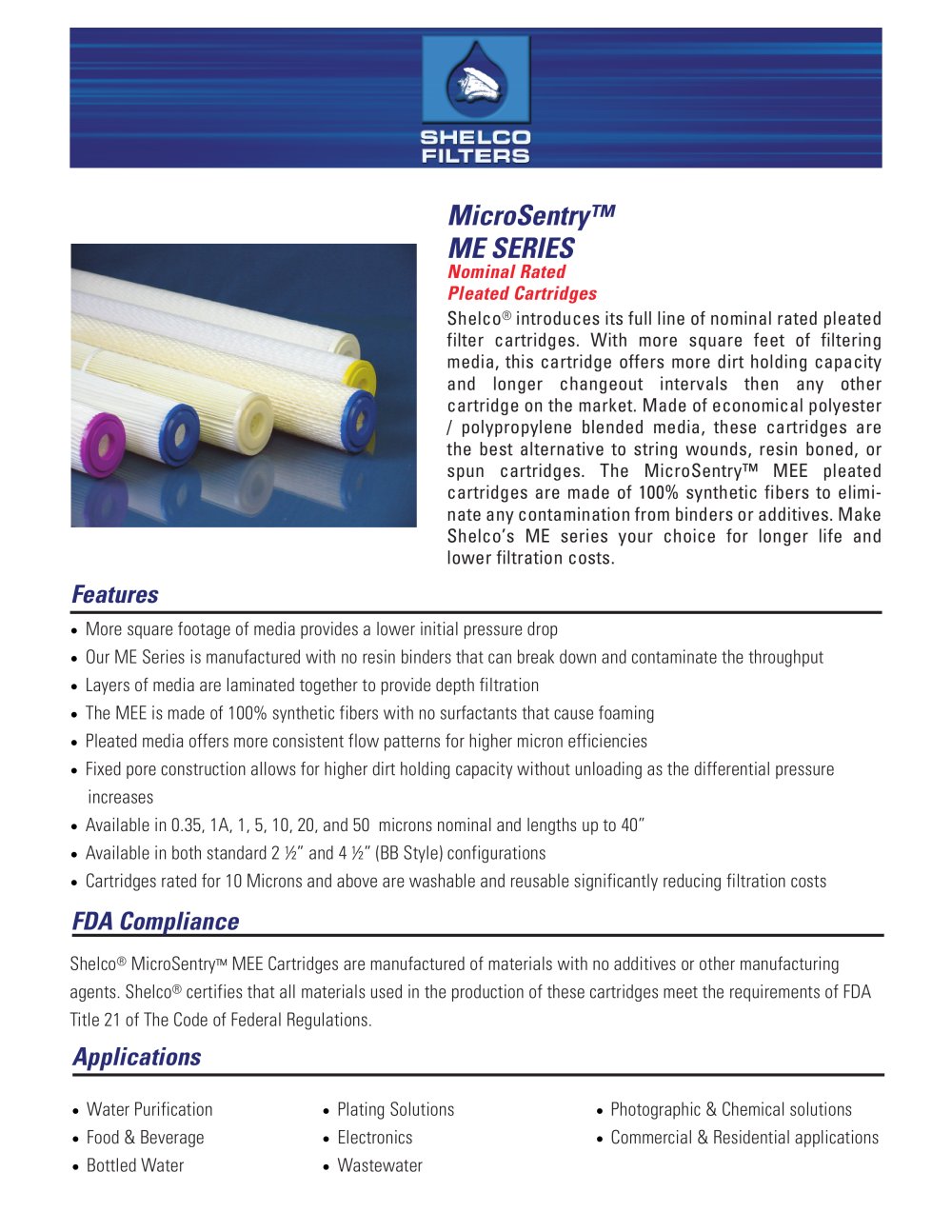

MicroSentry ™ - ME SERIES Nominal Rated Pleated Cartridges - 1

Shelco® introduces its full line of nominal rated pleated filter cartridges. With more square feet of filtering media, this cartridge offers more dirt holding capacity and longer changeout intervals then any other cartridge on the market. Made of economical polyester / polypropylene blended media, these cartridges are the best alternative to string wounds, resin boned, or spun cartridges. The MicroSentry™ MEE pleated cartridges are made of 100% synthetic fibers to eliminate any contamination from binders or additives. Make Shelco’s ME series your choice for longer life and lower filtration costs. ME SERIES Nominal Rated Pleated Cartridges F eatures • More square footage of media provides a lower initial pressure drop • Our ME Series is manufactured with no resin binders that can break down and contaminate the throughput • Layers of media are laminated together to provide depth filtration • The MEE is made of 100% synthetic fibers with no surfactants that cause foaming • Pleated media offers more consistent flow patterns for higher micron efficiencies • Fixed pore construction allows for higher dirt holding capacity without unloading as the differential pressure increases • Available in 0.35, 1A, 1, 5, 10, 20, and 50 microns nominal and lengths up to 40” • Available in both standard 2 ½” and 4 ½” (BB Style) configurations • Cartridges rated for 10 Microns and above are washable and reusable significantly reducing filtration costs Applications • Water Purification • Plating Solutions • Photographic & Chemical solutions • Food & Beverage • Electronics • Commercial & Residential applications • Bottled Water • Wastewater FDA Compliance Shelco® MicroSentry™ MEE Cartridges are manufactured of materials with no additives or other manufacturing agents. Shelco® certifies that all materials used in the production of these cartridges meet the requirements of FDA Title 21 of The Code of Federal Regulations. MicroSentry™

Open the catalog to page 1

MicroSentry ™ - ME SERIES Nominal Rated Pleated Cartridges - 2

0 2 4 6 8 10 0 4 8 12 16 20 24 Standard Cartridge Full-Flow (BB) Cartridge 1 A 0.35ì 1ì 5ì 10ì 20ì 50ì 1ì-10” 5ì-10” 5ì-20” 1 .8 .6 .4 .2 0 Pressu re Differentia l Gallons Per Minute Pressure Differential 1 .8 .6 .4 .2 0 Gallons Per Minute 1ì-20” MicroVantage™, MicroSentry™, ShelcoFilters®, and the Shelco Filters logo are registered trademarks of the Tinny Corporation Shelco Filters is a division of the Tinny Corporation. Product Specifications ORDERING GUIDE Bulletin: MEE-500.11 © 2005 Shelco Filters Materials of Construction Filter Media – Polyester / Polypro Blend Filter Core –...

Open the catalog to page 2
