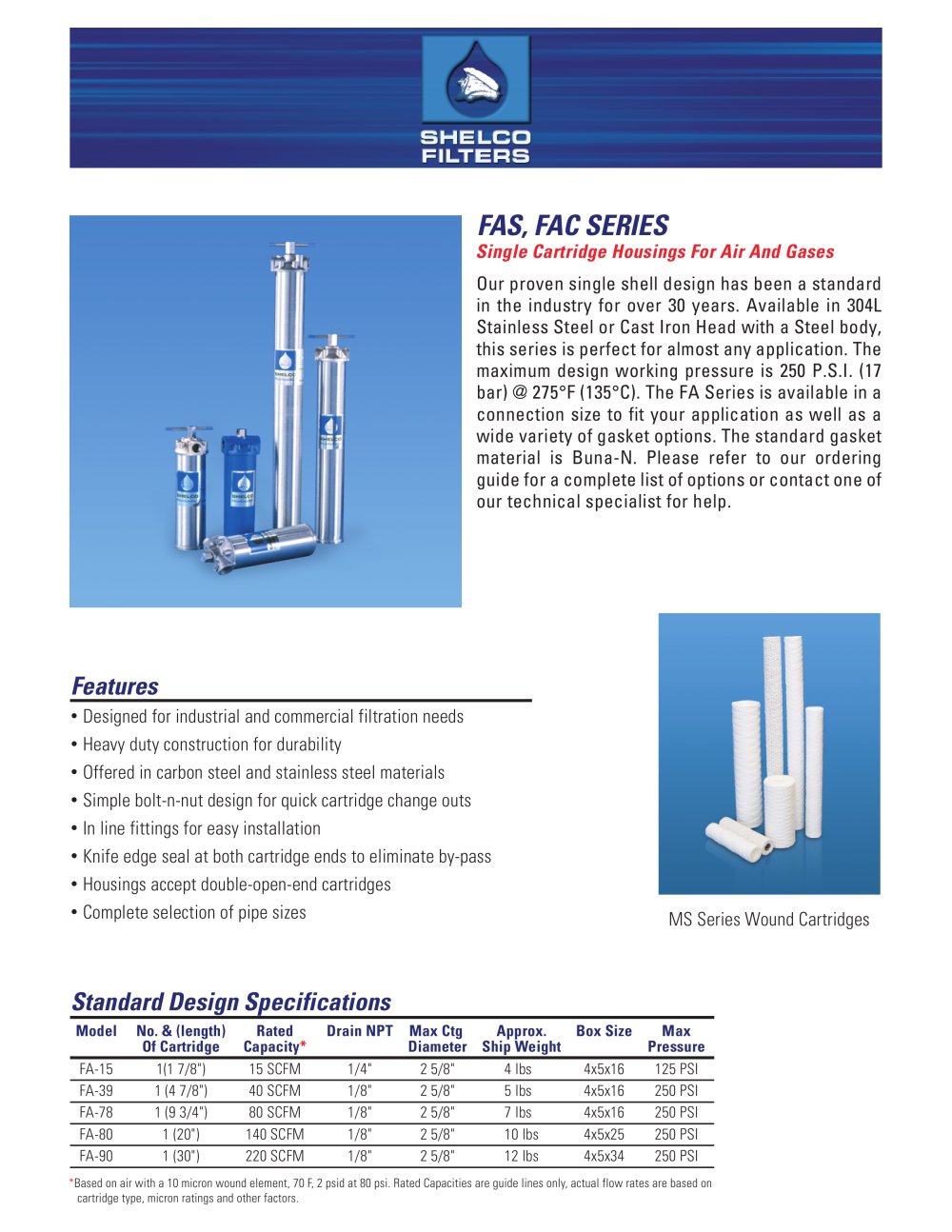

Our proven single shell design has been a standard in the industry for over 30 years. Available in 304L Stainless Steel or Cast Iron Head with a Steel body, this series is perfect for almost any application. The maximum design working pressure is 250 P.S.I. (17 bar) @ 275°F (135°C). The FA Series is available in a connection size to fit your application as well as a wide variety of gasket options. The standard gasket material is Buna-N. Please refer to our ordering guide for a complete list of options or contact one of our technical specialist for help. FAS, FAC SERIES Single Cartridge Housings For Air And Gases Features • Designed for industrial and commercial filtration needs • Heavy duty construction for durability • Offered in carbon steel and stainless steel materials • Simple bolt-n-nut design for quick cartridge change outs • In line fittings for easy installation • Knife edge seal at both cartridge ends to eliminate by-pass • Housings accept double-open-end cartridges • Complete selection of pipe sizes MS Series Wound Cartridges Standard Design Specifications FA-15 FA-39 FA-78 FA-80 FA-90 Model 1(1 7/8") 1 (4 7/8") 1 (9 3/4") 1 (20") 1 (30") No. & (length) Of Cartridge 1/4" 1/8" 1/8" 1/8" 1/8" Drain NPT 2 5/8" 2 5/8" 2 5/8" 2 5/8" 2 5/8" Max Ctg Diameter 4 lbs 5 lbs 7 lbs 10 lbs 12 lbs Approx. Ship Weight 4x5x16 4x5x16 4x5x16 4x5x25 4x5x34 Box Size 15 SCFM 40 SCFM 80 SCFM 140 SCFM 220 SCFM Rated Capacity* *Based on air with a 10 micron wound element, 70 F, 2 psid at 80 psi. Rated Capacities are guide lines only, actual flow rates are based on cartridge type, micron ratings and other factors. 125 PSI 250 PSI 250 PSI 250 PSI 250 PSI Max Pressure

Open the catalog to page 1

SHELCO FILTERS tel: 860.854.6121 800.543.5843 fax: 860.854.6120 e-mail: info@shelco.com www.shelco.com 100 Bradley Street . Middletown, CT 06457 . USA MODEL CTG LENGTH DIM A DIM B FA-15 1 7/8” 7 11/16“ 5 3/4” FA-39 4 7/8” 8 7/8” 6 15/16” FA-78 10“ 13 3/4” 11 13/16” FA-80 20“ 23 7/8” 21 15/16” FA-90 30“ 33 7/8” 31 15/16” 4" IN OUT 4" FAC-15 SERIES ONLY OUT IN 2 1/4" BODY CARTRIDGE CENTER ROD (OPTIONAL) GAUGE PORTS HEAD CAP NUT DRAIN PLUG A B STANDARD STYLE MOUNTING BRACKET TEE HANDLE CAP NUT 13/16" 13/16" ?1/4" 1 1/2" ?1/4" 3/4" 3/4" 2 1/2" ?1/4" 1 1/2" 1 1/2" 6 1/8" 4 9/16" Dimensions...
