CSF SERIES Single Cartridge Housings

CSF SERIES Single Cartridge Housings
2Pages

Catalog excerpts

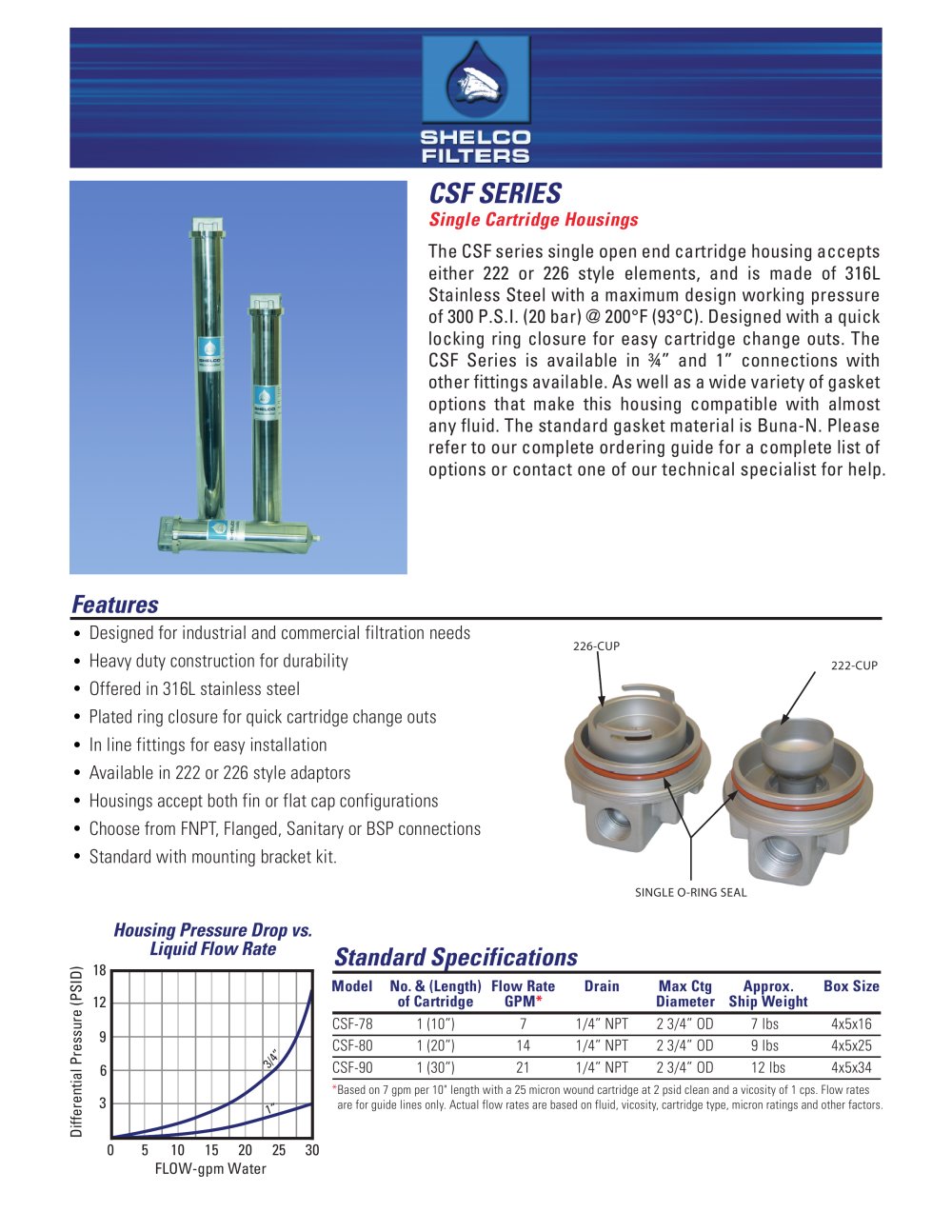

CSF SERIES Single Cartridge Housings - 1

The CSF series single open end cartridge housing accepts either 222 or 226 style elements, and is made of 316L Stainless Steel with a maximum design working pressure of 300 P.S.I. (20 bar) @ 200°F (93°C). Designed with a quick locking ring closure for easy cartridge change outs. The CSF Series is available in ¾” and 1” connections with other fittings available. As well as a wide variety of gasket options that make this housing compatible with almost any fluid. The standard gasket material is Buna-N. Please refer to our complete ordering guide for a complete list of options or contact one of our technical specialist for help. CSF SERIES Single Cartridge Housings • • • • • • • • • Features Designed for industrial and commercial filtration needs Heavy duty construction for durability Offered in 316L stainless steel Plated ring closure for quick cartridge change outs In line fittings for easy installation Available in 222 or 226 style adaptors Housings accept both fin or flat cap configurations Choose from FNPT, Flanged, Sanitary or BSP connections Standard with mounting bracket kit. Standard Specifications CSF-78 CSF-80 CSF-90 Model 1 (10”) 1 (20”) 1 (30”) No. & (Length) of Cartridge 1/4” NPT 1/4” NPT 1/4” NPT Drain 2 3/4” OD 2 3/4” OD 2 3/4” OD Max Ctg Diameter 7 lbs 9 lbs 12 lbs Approx. Ship Weight 4x5x16 4x5x25 4x5x34 Box Size 7 14 21 Flow Rate GPM* *Based on 7 gpm per 10" length with a 25 micron wound cartridge at 2 psid clean and a vicosity of 1 cps. Flow rates are for guide lines only. Actual flow rates are based on fluid, vicosity, cartridge type, micron ratings and other factors. Housing Pressure Drop vs. Liquid Flow Rate Differential Pressure (PSID) FLOW-gpm Water 0 5 3 6 9 12 18 10 15 20 25 30 3/4” 1“ 226-CUP 222-CUP SINGLE O-RING SEAL

Open the catalog to page 1

CSF SERIES Single Cartridge Housings - 2

MicroVantage™, MicroSentry™, ShelcoFilters®, and the Shelco Filters logo are registered trademarks of the Tinny Corporation Shelco Filters is a division of the Tinny Corporation. Shelco’s Micro Vantage™ High efficiency and Absolute rated cartridges Dimensions ORDERING GUIDE - - - - Bulletin: CSF-500.5 © 2005 Shelco Filters * When ordering vents or gauge ports you must specify location I = Inlet, O = Outlet and I/O = Inlet & Outlet. Example GP4I or GP4I/O. CSF Model / Material CSF 316 L Stainless Steel with stainless steel drain plug. Closure ring is nickel plated brass and is a non wetted...

Open the catalog to page 2
