BFS Series Multi-Cavity Bag Housings 2 thru 6 round

BFS Series Multi-Cavity Bag Housings 2 thru 6 round
2Pages

Catalog excerpts

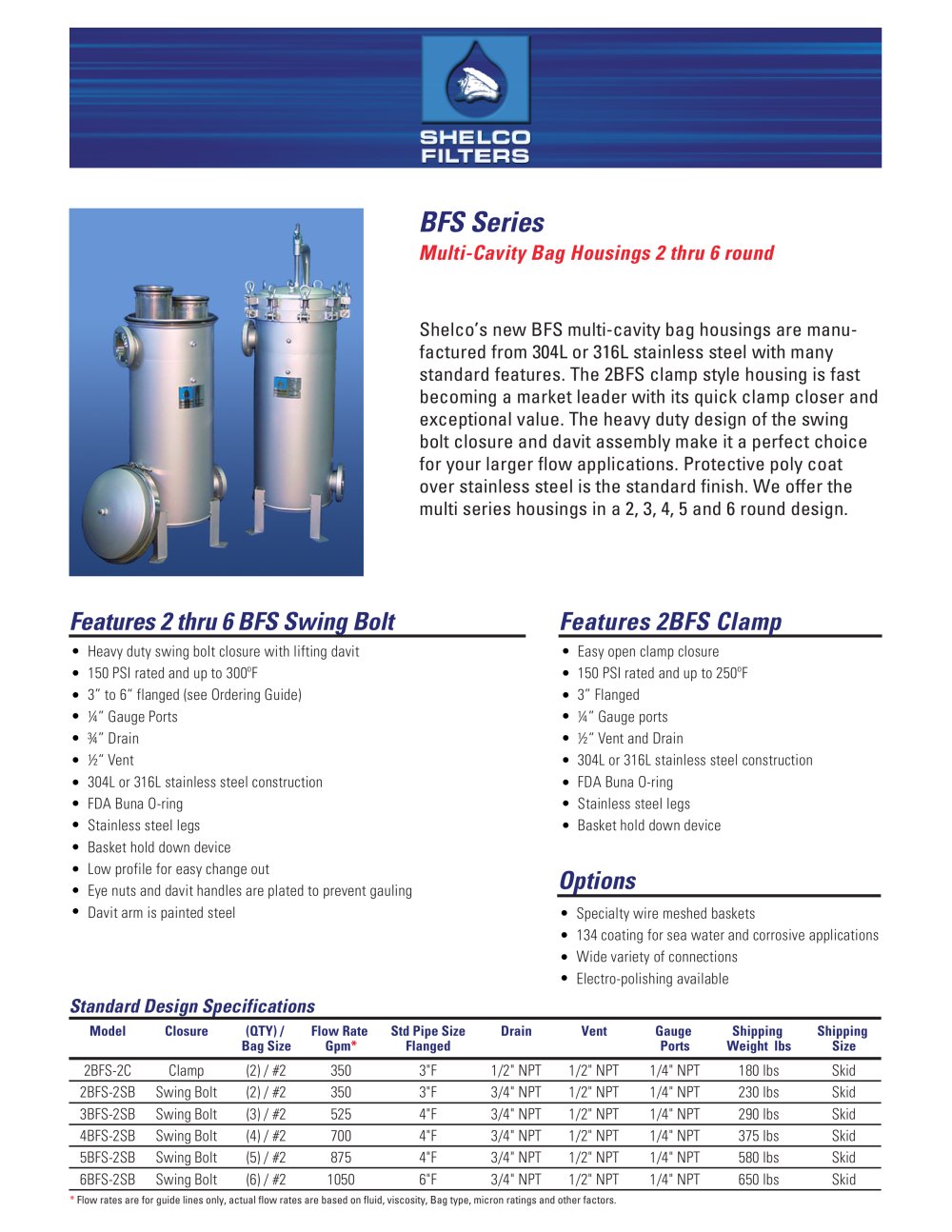

BFS Series Multi-Cavity Bag Housings 2 thru 6 round - 1

Model Closure (QTY) / Flow Rate Std Pipe Size Drain Vent Gauge Shipping Shipping Bag Size Gpm* Flanged Ports Weight lbs Size 2BFS-2C Clamp (2) / #2 350 3"F 1/2" NPT 1/2" NPT 1/4" NPT 180 lbs Skid 2BFS-2SB Swing Bolt (2) / #2 350 3"F 3/4" NPT 1/2" NPT 1/4" NPT 230 lbs Skid 3BFS-2SB Swing Bolt (3) / #2 525 4"F 3/4" NPT 1/2" NPT 1/4" NPT 290 lbs Skid 4BFS-2SB Swing Bolt (4) / #2 700 4"F 3/4" NPT 1/2" NPT 1/4" NPT 375 lbs Skid 5BFS-2SB Swing Bolt (5) / #2 875 4"F 3/4" NPT 1/2" NPT 1/4" NPT 580 lbs Skid 6BFS-2SB Swing Bolt (6) / #2 1050 6"F 3/4" NPT 1/2" NPT 1/4" NPT 650 lbs Skid • • • • • • • • • • • • • • • • • Features 2 thru 6 BFS Swing Bolt BFS Series Multi-Cavity Bag Housings 2 thru 6 round Options • • • • • • • • • Features 2BFS Clamp Easy open clamp closure 150 PSI rated and up to 250ºF 3” Flanged ¼” Gauge ports ½“ Vent and Drain 304L or 316L stainless steel construction FDA Buna O-ring Stainless steel legs Basket hold down device Specialty wire meshed baskets 134 coating for sea water and corrosive applications Wide variety of connections Electro-polishing available Heavy duty swing bolt closure with lifting davit 150 PSI rated and up to 300ºF 3” to 6“ flanged (see Ordering Guide) ¼” Gauge Ports ¾” Drain ½“ Vent 304L or 316L stainless steel construction FDA Buna O-ring Stainless steel legs Basket hold down device Low profile for easy change out Eye nuts and davit handles are plated to prevent gauling Davit arm is painted steel Shelco’s new BFS multi-cavity bag housings are manufactured from 304L or 316L stainless steel with many standard features. The 2BFS clamp style housing is fast becoming a market leader with its quick clamp closer and exceptional value. The heavy duty design of the swing bolt closure and davit assembly make it a perfect choice for your larger flow applications. Protective poly coat over stainless steel is the standard finish. We offer the multi series housings in a 2, 3, 4, 5 and 6 round design. Standard Design Specifications * Flow rates are for guide lines only, actual flow rates are based on fluid, viscosity, Bag type, micron ratings and other factors.

Open the catalog to page 1

BFS Series Multi-Cavity Bag Housings 2 thru 6 round - 2

SHELCO FILTERS tel: 860.854.6121 800.543.5843 fax: 860.854.6120 e-mail: info@shelco.com www.shelco.com 100 Bradley Street . Middletown, CT 06457 . USA Complete Line of Replacement Filter Bags Dimensions ORDERING GUIDE - Clamp Closure Example: 4BFS-2SB-4-316E 2 BFS - 2 C - 3 - 316 E # of Bags Model Closure Std. Flanged Connections Material 2 BFS Bag Size 2 C = Clamp Blank = 304 SS 316 = 316 SS Gasket Blank = Buna E = EPR S = Silicone V = Viton T = Telfon Encapluated Silicone Blank = Buna E = EPR S = Silicone V = Viton T = Telfon Encapluated Silicone MODEL 2BFS-2C-3 2BFS-2SB 3BFS-2SB 4BFS-2SB...

Open the catalog to page 2
