BF Series Single Bag Housings:

BF Series Single Bag Housings:
2Pages

Catalog excerpts

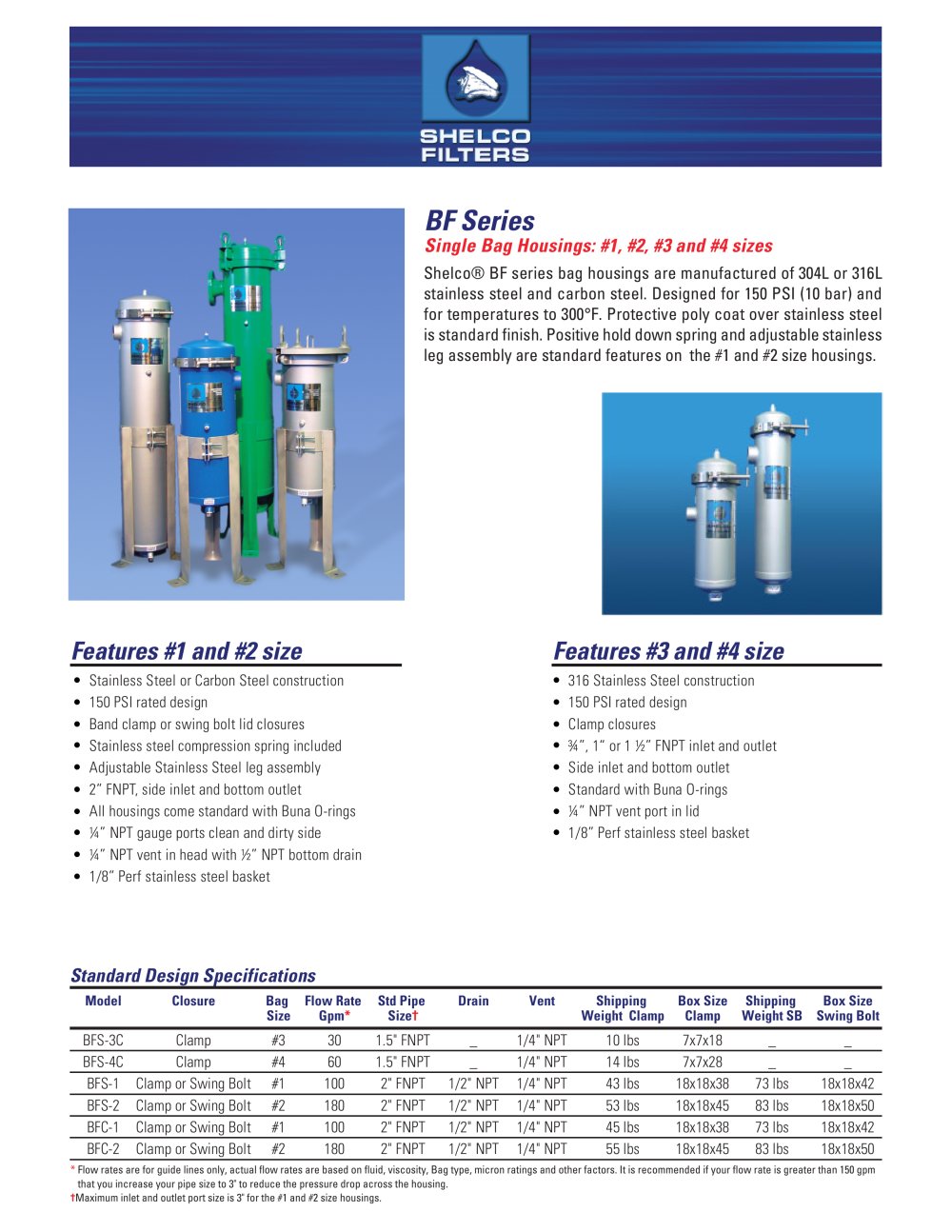

• • • • • • • • • • • • • • • • • • Features #1 and #2 size Features #3 and #4 size BF Series Single Bag Housings: #1, #2, #3 and #4 sizes Stainless Steel or Carbon Steel construction 150 PSI rated design Band clamp or swing bolt lid closures Stainless steel compression spring included Adjustable Stainless Steel leg assembly 2” FNPT, side inlet and bottom outlet All housings come standard with Buna O-rings ¼” NPT gauge ports clean and dirty side ¼” NPT vent in head with ½” NPT bottom drain 1/8” Perf stainless steel basket 316 Stainless Steel construction 150 PSI rated design Clamp closures ¾”, 1“ or 1 ½” FNPT inlet and outlet Side inlet and bottom outlet Standard with Buna O-rings ¼” NPT vent port in lid 1/8” Perf stainless steel basket Shelco® BF series bag housings are manufactured of 304L or 316L stainless steel and carbon steel. Designed for 150 PSI (10 bar) and for temperatures to 300°F. Protective poly coat over stainless steel is standard finish. Positive hold down spring and adjustable stainless leg assembly are standard features on the #1 and #2 size housings. Model Closure Bag Flow Rate Std Pipe Drain Vent Shipping Box Size Shipping Box Size Size Gpm* Size† Weight Clamp Clamp Weight SB Swing Bolt BFS-3C Clamp #3 30 1.5" FNPT _ 1/4" NPT 10 lbs 7x7x18 _ _ BFS-4C Clamp #4 60 1.5" FNPT _ 1/4" NPT 14 lbs 7x7x28 _ _ BFS-1 Clamp or Swing Bolt #1 100 2" FNPT 1/2" NPT 1/4" NPT 43 lbs 18x18x38 73 lbs 18x18x42 BFS-2 Clamp or Swing Bolt #2 180 2" FNPT 1/2" NPT 1/4" NPT 53 lbs 18x18x45 83 lbs 18x18x50 BFC-1 Clamp or Swing Bolt #1 100 2" FNPT 1/2" NPT 1/4" NPT 45 lbs 18x18x38 73 lbs 18x18x42 BFC-2 Clamp or Swing Bolt #2 180 2" FNPT 1/2" NPT 1/4" NPT 55 lbs 18x18x45 83 lbs 18x18x50 Standard Design Specifications * Flow rates are for guide lines only, actual flow rates are based on fluid, viscosity, Bag type, micron ratings and other factors. It is recommended if your flow rate is greater than 150 gpm that you increase your pipe size to 3" to reduce the pressure drop across the housing. †Maximum inlet and outlet port size is 3" for the #1 and #2 size housings.

Open the catalog to page 1

SHELCO FILTERS tel: 860.854.6121 800.543.5843 fax: 860.854.6120 e-mail: info@shelco.com www.shelco.com 100 Bradley Street . Middletown, CT 06457 . USA Dimensions ORDERING GUIDE #1 and #2 Sizes *Note:134 coating must have swing bolt closure and flanged connections. BFS - 2 C - 2 - 316 Product Code Size Closure Connection Material Options BFS = Stainless Steel BFC = Carbon Steel 1 = 7x18 2 = 7x32 2 = 2” FNPT 2F = 2” RFF 3 = 3” FNPT 3F = 3” RFF 2TC = 2” TC C = Clamp SB = Swing Bolt Blank = 304 316 = 316 SS 134 = *3M 134 Coating over 304 SS Blank = 316 SS ORDERING GUIDE #3 and #4 Sizes BFS - 4...

Open the catalog to page 2
