7FOS Universal Multi-Cartridge Housings

7FOS Universal Multi-Cartridge Housings
2Pages

Catalog excerpts

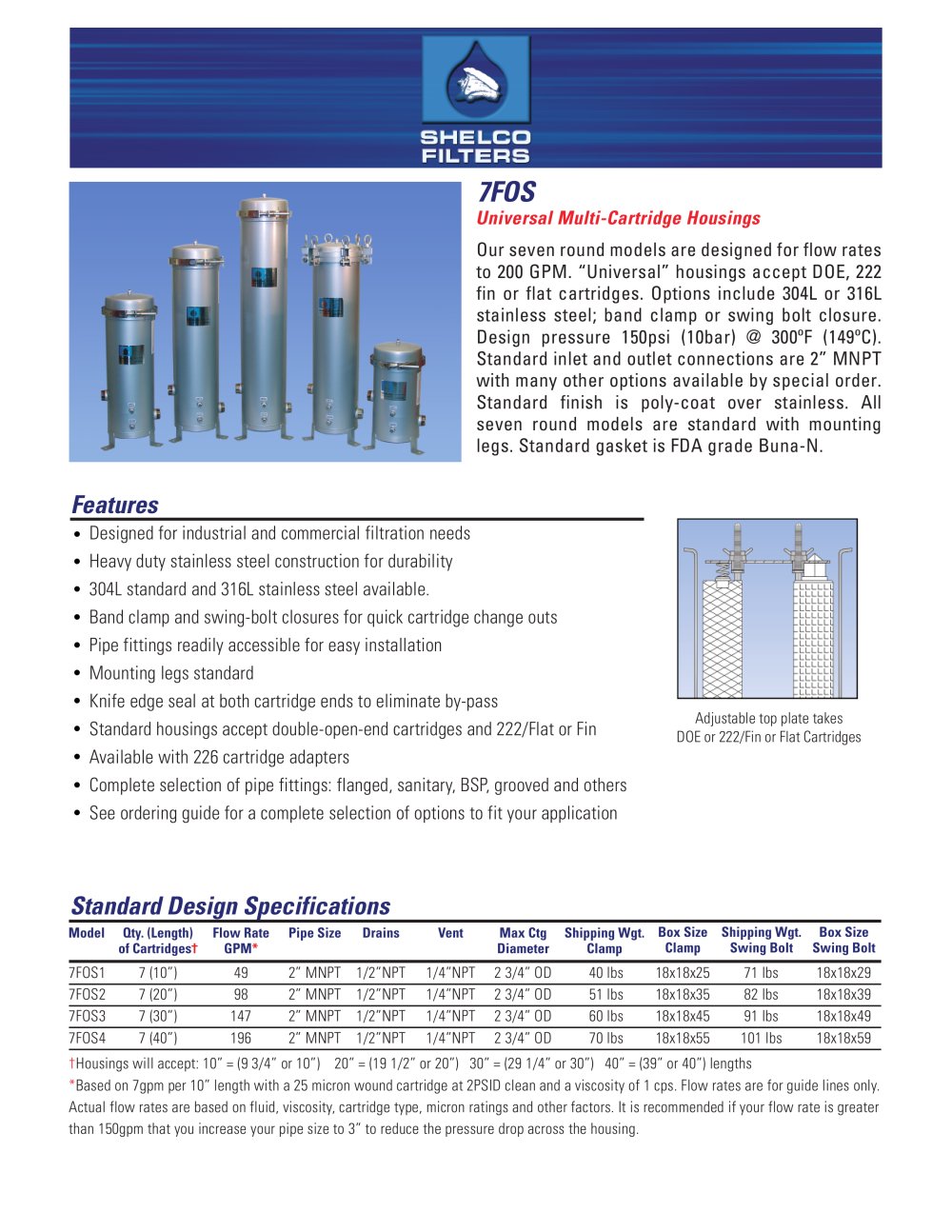

7FOS Universal Multi-Cartridge Housings - 1

• • • • • • • • • • • Our seven round models are designed for flow rates to 200 GPM. “Universal” housings accept DOE, 222 fin or flat cartridges. Options include 304L or 316L stainless steel; band clamp or swing bolt closure. Design pressure 150psi (10bar) @ 300ºF (149ºC). Standard inlet and outlet connections are 2” MNPT with many other options available by special order. Standard finish is poly-coat over stainless. All seven round models are standard with mounting legs. Standard gasket is FDA grade Buna-N. Features 7FOS Universal Multi-Cartridge Housings Designed for industrial and commercial filtration needs Heavy duty stainless steel construction for durability 304L standard and 316L stainless steel available. Band clamp and swing-bolt closures for quick cartridge change outs Pipe fittings readily accessible for easy installation Mounting legs standard Knife edge seal at both cartridge ends to eliminate by-pass Standard housings accept double-open-end cartridges and 222/Flat or Fin Available with 226 cartridge adapters Complete selection of pipe fittings: flanged, sanitary, BSP, grooved and others See ordering guide for a complete selection of options to fit your application Standard Design Specifications 7FOS1 7FOS2 7FOS3 7FOS4 Model 7 (10”) 7 (20”) 7 (30”) 7 (40”) Qty. (Length) of Cartridges† 2” MNPT 2” MNPT 2” MNPT 2” MNPT Pipe Size 1/2”NPT 1/2”NPT 1/2”NPT 1/2”NPT Drains 1/4”NPT 1/4”NPT 1/4”NPT 1/4”NPT Vent 40 lbs 51 lbs 60 lbs 70 lbs Shipping Wgt. Clamp 18x18x25 18x18x35 18x18x45 18x18x55 Box Size Clamp 71 lbs 82 lbs 91 lbs 101 lbs Shipping Wgt. Swing Bolt 18x18x29 18x18x39 18x18x49 18x18x59 Box Size Swing Bolt 2 3/4” OD 2 3/4” OD 2 3/4” OD 2 3/4” OD Max Ctg Diameter 49 98 147 196 Flow Rate GPM* †Housings will accept: 10” = (9 3/4” or 10”) 20” = (19 1/2” or 20”) 30” = (29 1/4” or 30”) 40” = (39” or 40”) lengths *Based on 7gpm per 10” length with a 25 micron wound cartridge at 2PSID clean and a viscosity of 1 cps. Flow rates are for guide lines only. Actual flow rates are based on fluid, viscosity, cartridge type, micron ratings and other factors. It is recommended if your flow rate is greater than 150gpm that you increase your pipe size to 3” to reduce the pressure drop across the housing. Adjustable top plate takes DOE or 222/Fin or Flat Cartridges

Open the catalog to page 1

7FOS Universal Multi-Cartridge Housings - 2

SHELCO FILTERS tel: 860.854.6121 800.543.5843 fax: 860.854.6120 e-mail: info@shelco.com www.shelco.com 100 Bradley Street . Middletown, CT 06457 . USA MODEL CLAMP STYLE SWING BOLT STYLE DIM A DIM A 7FOS1 20 1/2” 21” 7FOS2 30 1/2” 31” 7FOS3 40 1/2” 41” 7FOS4 50 1/2” 51” Dimensions ORDERING GUIDE 7 FOS 3 - SB - 316 - 226 - 2F - EP - OL - E Product Code FOS No. of Columns 7 Material Blank = 304L 316 = 316L Bulletin: 7FOS-500.1 © 2005 Shelco Filters MicroVantage™, MicroSentry™, ShelcoFilters®, and the Shelco Filters logo are registered trademarks of the Tinny Corporation Shelco Filters is a...

Open the catalog to page 2
