Three-Axis Turntable

Product catalog summary

Application

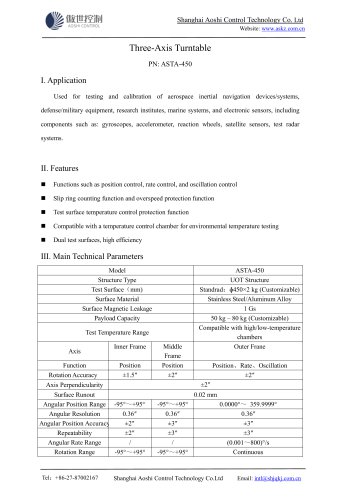

The Three-Axis Turntable, model ASTA-450, is designed for testing and calibration of aerospace inertial navigation devices/systems, defense/military equipment, research institutes, marine systems, and electronic sensors. It is suitable for components such as gyroscopes, accelerometers, reaction wheels, satellite sensors, and test radar systems.

Features

Position, rate, and oscillation control functions.
Slip ring counting and overspeed protection functions.
Test surface temperature control protection.
Compatibility with temperature control chambers for environmental testing.
Dual test surfaces for high efficiency.

Main Technical Parameters

Model: ASTA-450
Structure Type: UOT Structure
Test Surface: Standard ɸ450×2 kg, customizable.
Surface Material: Stainless Steel/Aluminum Alloy
Surface Magnetic Leakage: 1 Gs
Payload Capacity: 50 kg – 80 kg, customizable.
Test Temperature Range: Compatible with high/low-temperature chambers.
Axis Functions: Inner Frame - Position; Middle Frame - Position; Outer Frame - Position, Rate, Oscillation.
Rotation Accuracy: Inner Frame ±1.5″, Middle Frame ±2″, Outer Frame ±2″
Axis Perpendicularity: ±2″
Surface Runout: 0.02 mm
Angular Position Range: Inner and Middle Frames -95°～+95°, Outer Frame 0.0000°～ 359.9999°
Angular Resolution: 0.36″
Angular Position Accuracy: Inner Frame ±2″, Middle Frame ±3″, Outer Frame ±3″
Repeatability: Inner Frame ±2″, Middle Frame ±3″, Outer Frame ±3″
Angular Rate Range: Outer Frame (0.001～800)°/s
Rotation Range: Inner and Middle Frames -95°～+95°, Outer Frame Continuous
Angular Acceleration: Inner Frame (0～200)º/s², Middle and Outer Frames (0～100)º/s²
Rate Resolution: Inner Frame 0.0001°/s, Middle and Outer Frames 0.001°/s
Angular Rate Accuracy and Stability: Varies with rate, with high precision at lower rates.
Conductive Slip Rings: Standard 60 rings, customizable.
User Channel Interface: JY27467T23B32PN/ JY27467T23B32SN each set.
Surface/Fixture: Customizable.
