800-257-3872 Applications œ Hospital Patient Isolation Wards œ Pharmaceutical Manufacturing œ Semiconductor Fabs œ Cleanrooms œ Research Laboratories œ Animal Resource Facilities Features ¡ Touch Screen Display ¡ BACnet® Option ¡ Password Enabled ¡ Local Audible Alarm ¡ Visual Red and Green Room Status Displays ¡ SPST Alarm Relay ¡ Door Status Monitor ¡ Variable Alarm Delay ¡ Positive and Negative Pressure Monitoring ¡ Bar Graph Display ¡ CE and RoHS Compliant Benefi ts Ÿ Easy to Install, Set-up, and Calibrate Ÿ Fingertip Operation Ÿ Password Security Ÿ Local Display of Room Visit Setra Online: http://www.setra.com When it comes to a product to rely on - choose the Model SRPM. When it comes to a company to trust - choose Setra. NEW ISO-9001 Certifi ed ®

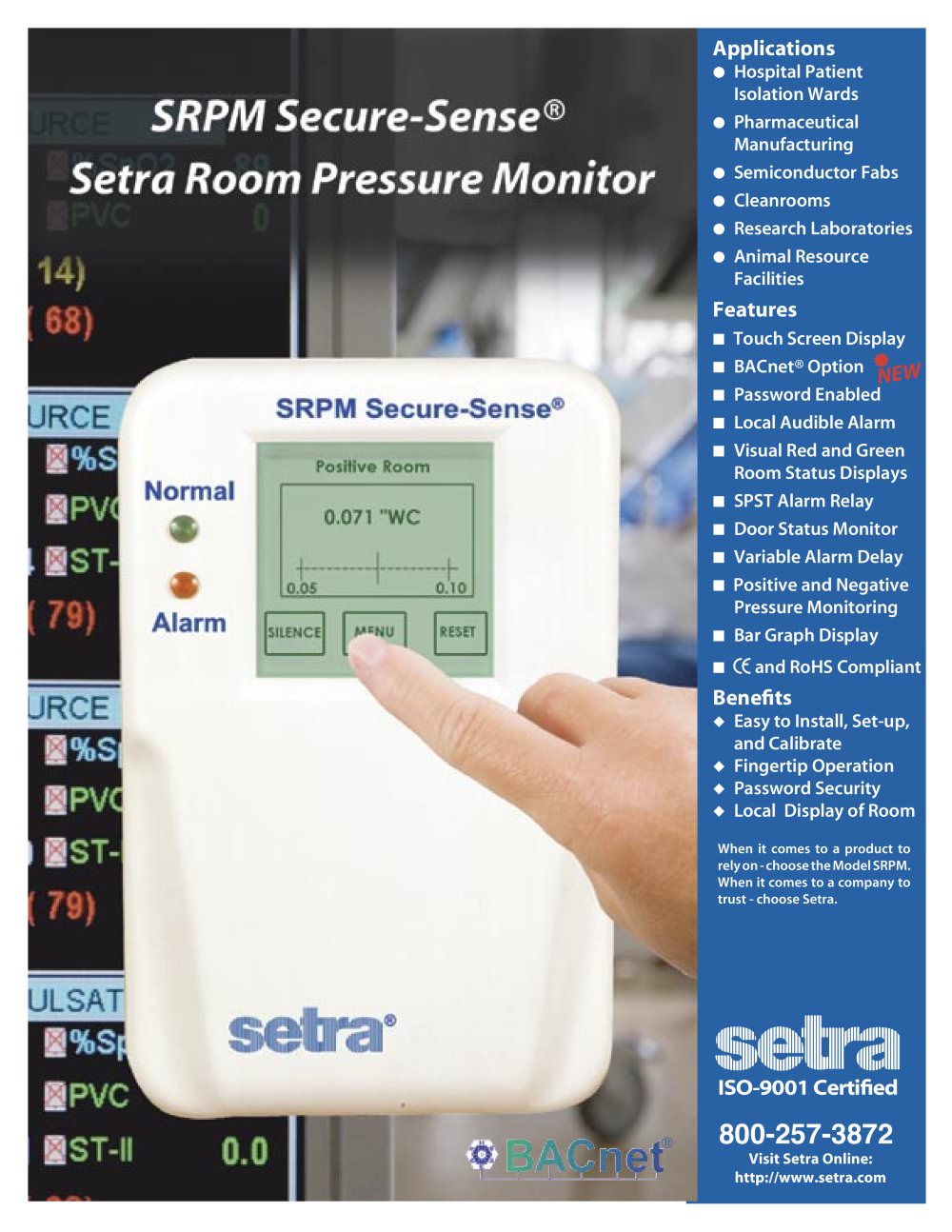

Setra's Model SRPM Room Pressure Monitor, available with optional BACnet® network capability for integration in building automation control systems, is designed for critical low differential pressure applications that require stringent pressure monitoring and alarming. The SRPM can be configured to monitor the positive or negative airflow in protected environments and hospital isolation rooms per CDC guidelines. The SRPM is a complete system that includes a convenient backlit RGB LCD display with an intuitive graphic user interface for pressure, security, calibration, and alarm setup. The convenient...

800-257-3872 Applications œ Hospital Patient Isolation Wards œ Pharmaceutical Manufacturing œ Semiconductor Fabs œ Cleanrooms œ Research Laboratories œ Animal Resource Facilities Features ¡ Touch Screen Display ¡ BACnet® Option ¡ Password Enabled ¡ Local Audible Alarm ¡ Visual Red and Green Room Status Displays ¡ SPST Alarm Relay ¡ Door Status Monitor ¡ Variable Alarm Delay ¡ Positive and Negative Pressure Monitoring ¡ Bar Graph Display ¡ CE and RoHS Compliant Benefits Ÿ Easy to Install, Set-up, and Calibrate Ÿ Fingertip Operation Ÿ Password Security Ÿ Local Display of Room Performance Data Code...

159 Swanson Road, Boxborough, Massachusetts 01719/Tel: 800-257-3872; Fax: 978-264-0292; Email: [email protected]; Web: www.setra.com While we provide application assistance on all Setra products, both personally and through our literature, it is up to the customer to determine the suitability of the product in the application. Model SRPM = SRPM Code all blocks in table. Example: Part No.SRPM005WBA1E for a SRPM , ±5 in. W.C. Range, 24VAC Exc. with 4 to 20 mA output, and ±0.5% FS Accuracy. ORDERING INFORMATION Please contact factory for versions not shown. 005WB = ±5 in.W.C. 2R5WB = ±2.5 in.W.C....
