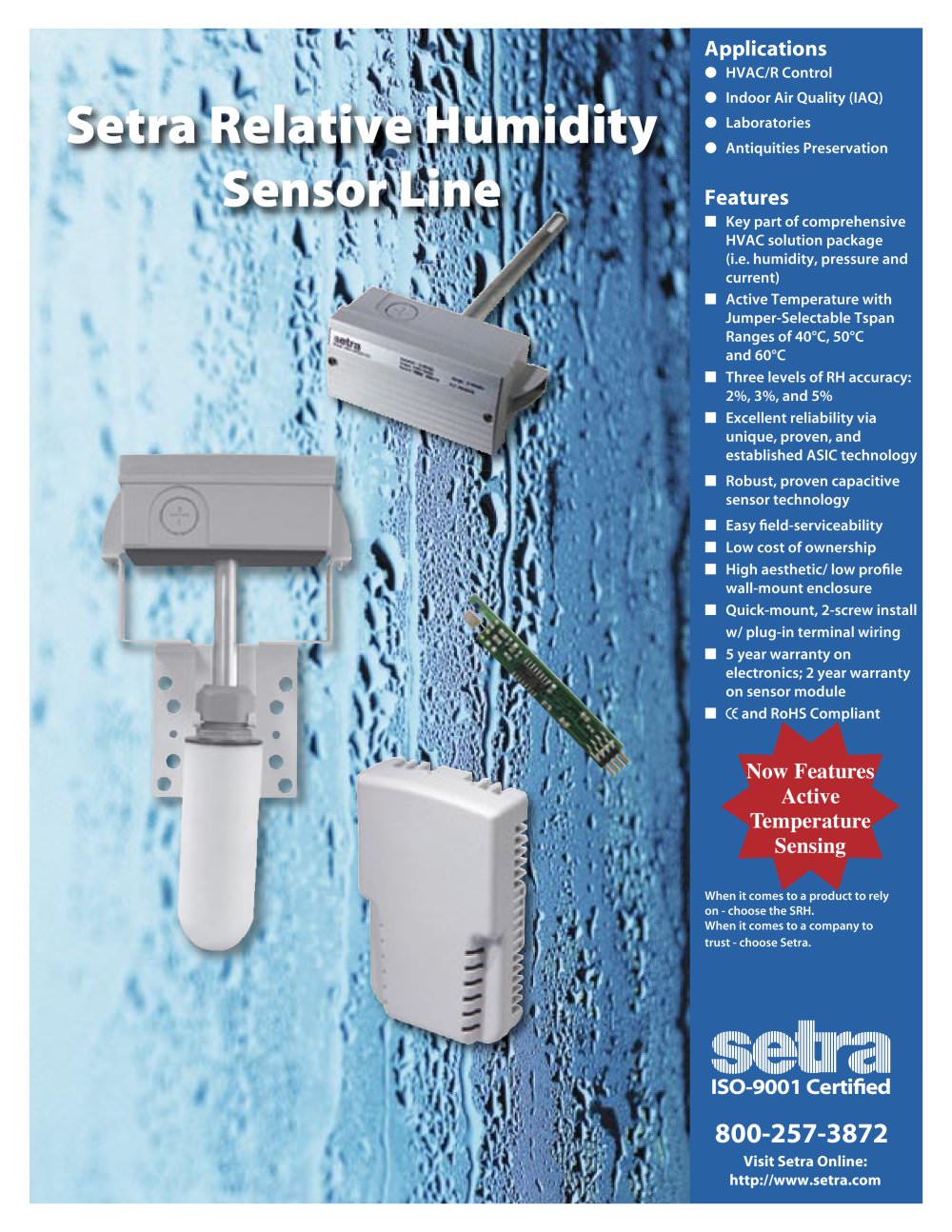

800-257-3872 Applications œ HVAC/R Control œ Indoor Air Quality (IAQ) œ Laboratories œ Antiquities Preservation Features ¡ Key part of comprehensive HVAC solution package (i.e. humidity, pressure and current) ¡ Active Temperature with Jumper-Selectable Tspan Ranges of 40°C, 50°C and 60°C ¡ Three levels of RH accuracy: 2%, 3%, and 5% ¡ Excellent reliability via unique, proven, and established ASIC technology ¡ Robust, proven capacitive sensor technology ¡ Easy fi eld-serviceability ¡ Low cost of ownership ¡ High aesthetic/ low profi le wall-mount enclosure ¡ Quick-mount, 2-screw install w/ plug-in terminal wiring ¡ 5 year warranty on electronics; 2 year warranty on sensor module ¡ CE and RoHS Compliant Visit Setra Online: http://www.setra.com When it comes to a product to rely on - choose the SRH. When it comes to a company to trust - choose Setra. Now Features Active Temperature Sensing ISO-9001 Certifi ed Setra Relative Humidity Sensor Line

Setra’s Humidity Sensor (SRH) family consists of a wall mount, duct mount, and outside air unit. This product line is designed to complement Setra’s pressure and current products while expanding the solution opportunities for the HVAC/building automation market and other relative humidity monitoring applications. All models feature removable sensor tips, NIST traceability, and a durable capacitive sensor capable of full-scale 0 to 100% RH measurement. The SRH product line offers accurate humidity with active or passive temperature sensing available in ±2%, ±3%, or ±5% RH accuracy. Humidity transmitters...

Simple Installation 800-257-3872 Applications œ HVAC/R Control œ Indoor Air Quality (IAQ) œ Laboratories œ Antiquities Preservation Features ¡ Key part of comprehensive HVAC solution package (i.e. humidity, pressure and current) ¡ Active Temperature with Jumper-Selectable Tspan Ranges of 40°C, 50°C and 60°C ¡ Three levels of RH accuracy: 2%, 3%, and 5% ¡ Excellent reliability via unique, proven, and established ASIC technology ¡ Robust, proven capacitive sensor technology ¡ Easy field-serviceability ¡ Low cost of ownership ¡ High aesthetic/ low profile wall-mount enclosure ¡ Quick-mount, 2-screw...

While we provide application assistance on all Setra products, both personally and through our literature, it is the customer's responsibility to determine the suitability of the product in the application. Example: Part No. SRH1-2P-W-11-T0-N-C = Wall-mount, 2% RH accuracy, 4-20 mA output, RH only, NIST Calibration Certificate 159 Swanson Road, Boxborough, MA 01719/Tel: 978-263-1400; Toll Free: 800-257-3872; Fax: 978-264-0292; email: [email protected] Ordering Information (Code all blocks in table) SSP-SRH Rev. C 10/19/10 Accuracy 2P = 2% 3P = 3% 5P = 5%6 Dimension Drawings Display4 N = None Model...
