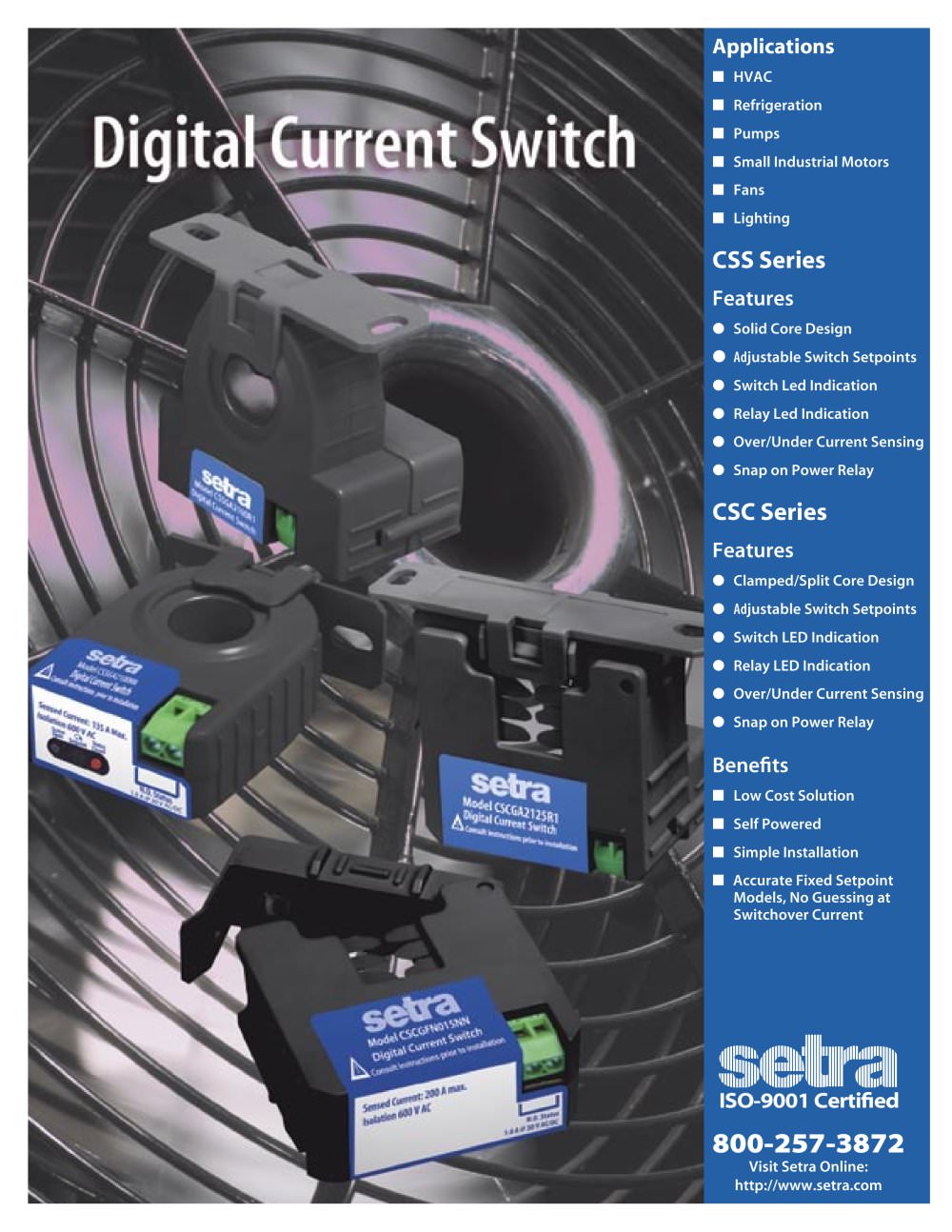

Applications ¡ HVAC ¡ Refrigeration ¡ Pumps ¡ Small Industrial Motors ¡ Fans ¡ Lighting CSS Series Features œ Solid Core Design œ Adjustable Switch Setpoints œ Switch Led Indication œ Relay Led Indication œ Over/Under Current Sensing œ Snap on Power Relay CSC Series Features œ Clamped/Split Core Design œ Adjustable Switch Setpoints œ Switch LED Indication œ Relay LED Indication œ Over/Under Current Sensing œ Snap on Power Relay Benefits ¡ Low Cost Solution ¡ Self Powered ¡ Simple Installation ¡ Accurate Fixed Setpoint Models, No Guessing at Switchover Current 800-257-3872 Visit Setra Online: http://www.setra.com ISO-9001 Certified

MODEL CSSGFN025NN CSSGA2100NN CSSGA2100R1 w/snap-on relay Amperage Range 0.25 to 200 A 1.00 to 135 A 1.00 to 135 A Continuous Operating Current 200 A, 600 V AC 125 A, 600 V AC 135 A, 600 V AC Switch Setpoint Fixed Adjustable Adjustable Output Relay No No SPST,NO. 10 A @ 260 V AC, 5 A @ 30 V DC Actuation Coil No No 24 V AC/DC Switch LED Indication No Yes Yes Relay LED Indication No No Yes Trip Setpoint Value 0.25 A 1.00 to 135 A 1.00 to 135 A Current Switching Mode Under Current Sensing Over/Under Current Sensing Over/Under current Sensing Dimensions 2.54 x 1.85 x 0.98 in. (65 x 47 x 25 mm) 2.54...

MODEL CSCGFN015NN CSCGFN150NN CSCGA2125NN CSCGFN150R1 w/snap-on relay CSCGA2125R1 w/snap-on relay Amperage Range 0.15 to 200 A/ 1.5 to 200 A 1.25 to 135 A 1.5 to 200 A 1.25 to 135 A Continuous Operating Current 200 A, 600 V AC/ 200 A, 600 V AC 135 A, 600 V AC 200 A, 600 V AC 135 A, 600 V AC Switch Setpoint Fixed Adjustable Fixed Adjustable Output Relay No No SPST.NO 10 A @ 260 V AC, 5 A @ 30 VDC SPST. NO 10 A @ 260 V AC, 5 A @ 30 V DC Actuation Coil No No 24 V AC/DC 24 V AC/DC Switch LED Indication No Yes No Yes Relay LED Indication No No Yes Yes Trip Setpoint Value 0.15 A/1.5 A 1.25 to 135 A...

Outline Drawings 159 Swanson Road, Boxborough, Massachusetts 01719/Tel: 800-257-3872; Fax: 978-264-0292; Email: [email protected]; Web: www.setra.com While we provide application assistance on all Setra products, both personally and through our literature, it is up to the customer to determine the suitability of the product in the application. ORDERING INFORMATION SSP-CSS-CSC Rev B 03/02/2010 Models CSSGFN025NN CSSGA2100NN Models CSSGA2100R1 Models CSCGFN015NN CSCGFN150NN CSCGA2125NN Models CSCGFN150R1 CSCGA2125R1 CAUTION, RISK of ELECTRIC SHOCK Disconnect power supply before making electrical...
