Product catalog summary

Overview
The Setra Systems Industrial Checkweigher is designed for inventory control, packaging, and material handling applications. It is based on award-winning variable capacitance technology, ensuring high accuracy and resolution.

Features

High accuracy and resolution
Prompting macros for user guidance
Internal database for storing up to 1800 part numbers
Plug and play functionality
Multiple base connectivity
Three RS232 communication ports
Rugged design

Options

Light tree for low, target, and high indication
Adjustable controller column
Optically isolated relay box
Remote scale option
Rechargeable battery
Cold cathode fluorescent backlighting
DYMO Labelwriter Setra 300 Printer
Linear imager scanner gun

Specifications

Displayed resolution: Selectable, default from 50,000 to 100,000 divisions
Internal resolution: Selectable to 1 part in 1,000,000
Units of measure: Pounds, kilograms, grams, ounces, pennyweights, troy ounces, carats, grains
Display update rate: Selectable, five settings
Response time: Two seconds (typical)
Counting capacity: 10,000,000 pieces
Memory: 2100 records including part number, description, lot number, count, average piece weight, tare, set points
Data communications: Bi-directional RS232 port for PC, OUT port for printer, IN port for scanner
Operating temperatures: 40 °F to 110 °F (5 °C to 43 °C)
Power adapter: 16VDC @ 1000 mA USA for 120 VAC, 60 Hz; Optional 12 VDC @ 500mA EC for 230 VAC, 50 Hz
Dimensions vary based on capacity (2-50 Kg)
Shipping weights vary based on capacity (16-35.5 lb)
Certifications: UL, CSA, CE, ISO 9001
Limited warranty: Two years

Performance

Capacity ranges from 2 Kg to 50 Kg with varying readability and error margins
Standard and maximum readability are specified for each capacity range

Conclusion
The Setra Checkweigher is an ideal solution for applications requiring precise weight measurement and control, offering a range of features and options to suit various industrial needs.

Catalog excerpts

Visit Setra Online:http://www.setra.com > The Setra Checkweigher provides accuracy and stability for your quality, packaging, and material handling applications. 159 Swanson Rd., Boxborough, MA 01719 > . Telephone: 978-263-1400 Fax: 978-264-0292 >

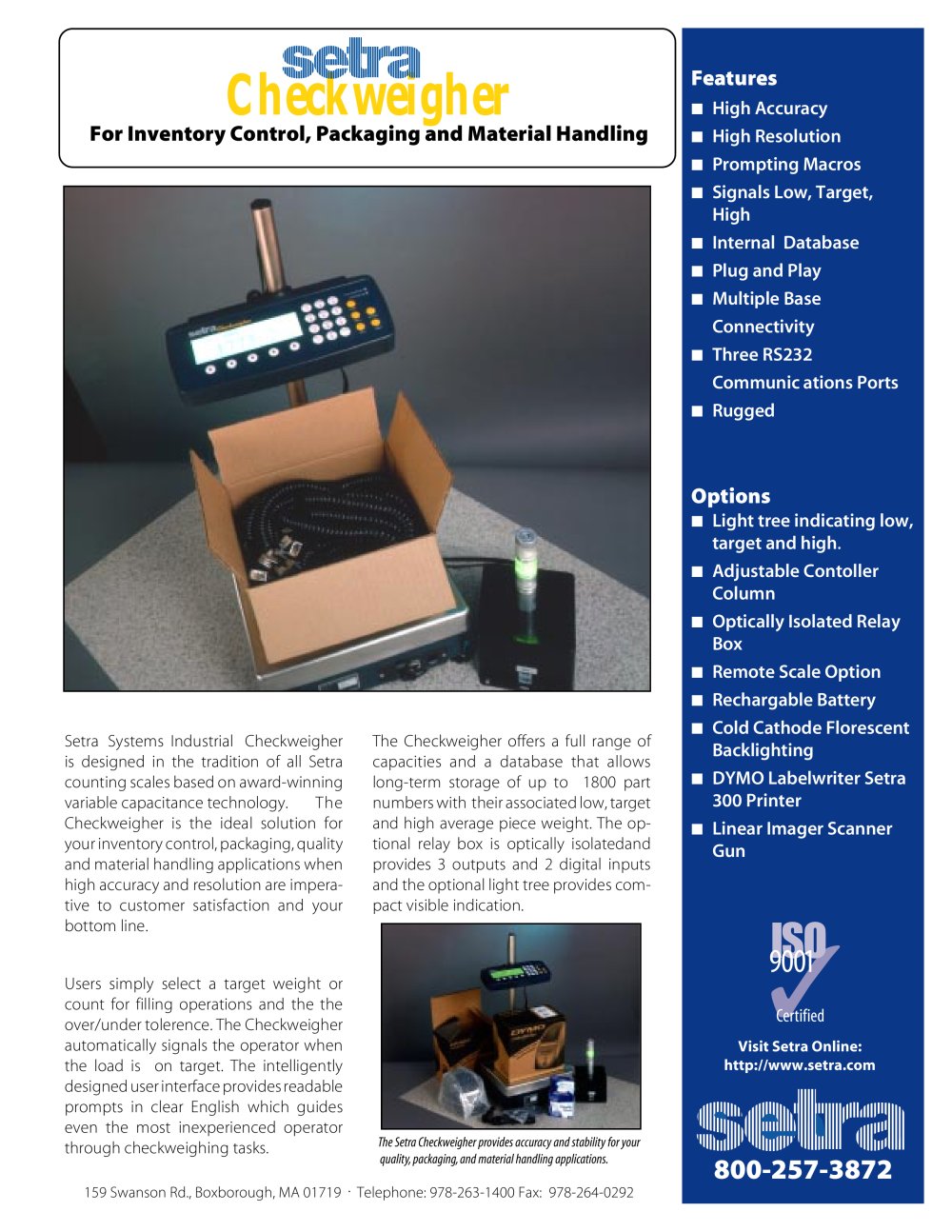

Open the catalog to page 1

POWER ADAPTER 16VDC @ 1000 mA USAfor 120 VAC, 60 Hz Optional 12 VDC @ 500mA EC for 230 VAC, 50 Hz DIMENSIONS (25- 50 Kg) Platform13 W x 15Ӕ D(33 x 38 cm)Controller10.75 W x 4.38Ԕ D x 2.5 H(27 x 11 x 6 cm)Overall13Ԕ W x 19.38 D x 4.5Ԕ H(33 x 48 x 11.5 cm) DIMENSIONS (12 - 16 Kg) Platform11.5 W x 9.5Ӕ D(29 x 24 cm)Controller10.75 W x 4.38Ԕ D x 2.5 H(27 x 11 x 6 cm)Overall11.5Ԕ W x 14 D x 4.75Ԕ H(29 x 35 x 12 cm) > DIMENSIONS (2 - 5 Kg) Platform6.2 DiameterController10.75Ӕ W x 4.38 D x 2.5Ԕ H(27 x 11 x 6 cm)Overall11.5 W x 14Ԕ D x 4.75 H(29 x 35 x 12 cm) DISPLAYED RESOLUTION Selectable; default...

Open the catalog to page 2
