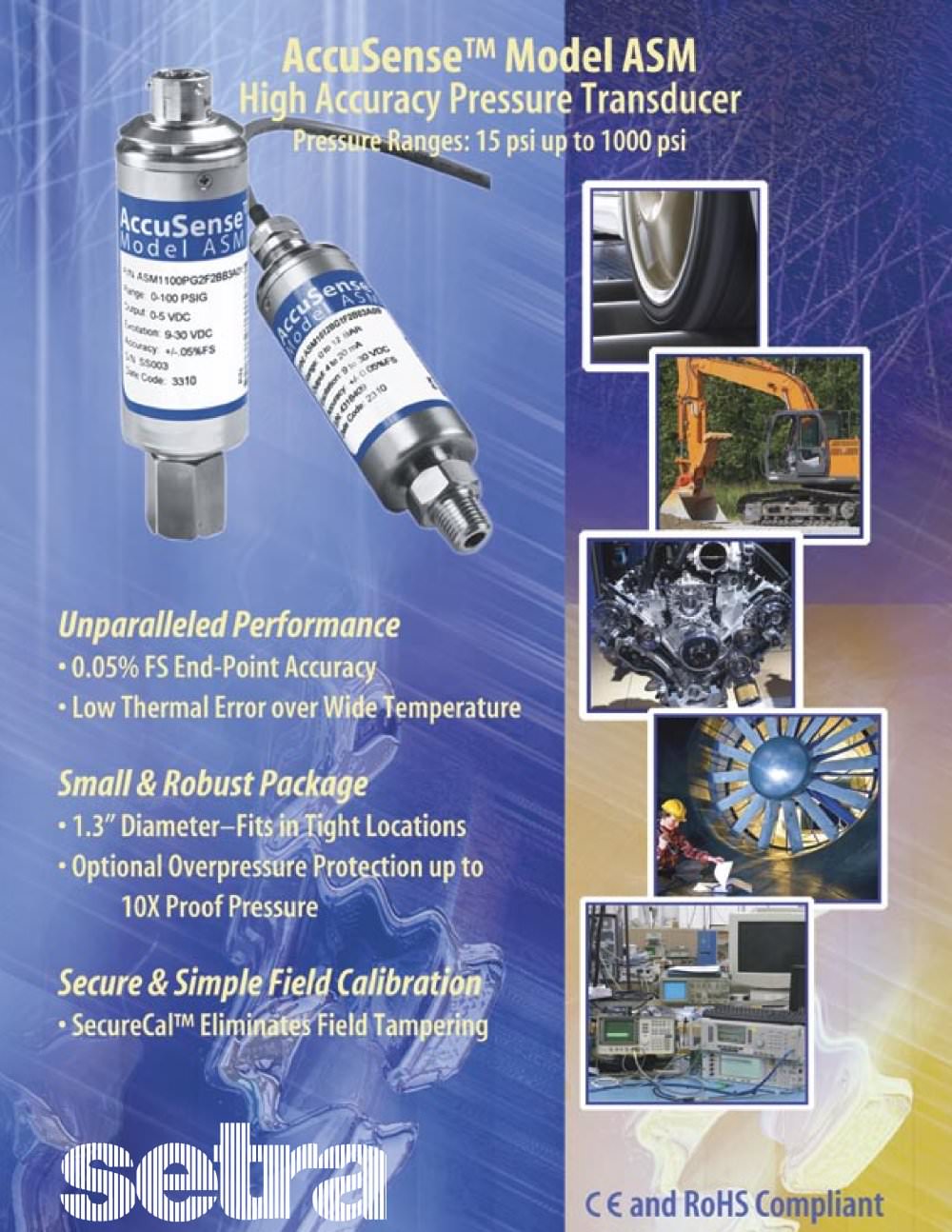

odel ASM igh Accuracy Pressure Transducer Pressure Ranges: 15 psi up to 1000 psi Unparalleled Performance 0.05% FS End-Point Accuracy Օ Low Thermal Error over WideTemperature Small & Robust Package 1.3" Diameter-Fits in Tight Locations Օ Optional OverpreSBre Protection up to 10X Proof Pressure^\^ Secure & Simple FiejjJ Calibration SecureCalՙ Elim and RoHS Compilant

Performance You Can Count On AccuSense™ Model ASM 2 Line Alpha Display LED Feedback Single Button for Snap Span Analog Correction Reset (Power) Switch Rotary Encoder to fi ne adjust Zero/Span Applications ¡ Engine Test Stands ¡ Dynamometers ¡ Particle Test and Analysis ¡ Research & Development ¡ Industrial (High Accuracy) ¡ Refrigeration Testing SecureCalTM Calibration Accessory œ Eliminates trim pots on transducer, ensuring tamper-proof calibration œ Simple push-button enables zero- tare and snap-span adjustment œ Foolproof factory calibration restore function œ Visual feedback thru LCD & LEDs...

Code B3 (Standard) Code B4 Option Code B5 Option Code B6 Option Electrical Connection Wire Color Bayonet Connector Pinout Bayonet Connector Pinout Bayonet Connector Pinout Bayonet Connector Pinout + EXC Red A A A C - EXC Black D B B D + Sig Out Green B C D A - Sig Out White C D C B Reserved for communication with SecureCalTM calibration module SecureCal Blue E E E E SecureCal Brown F F F F Outline Drawing Performance Data Specifications Standard Code “00” High Over Pressure Option Code “01” Full Scale Range (PSI) Burst Pressure* (PSI) Proof Pressure** (PSI) High Proof Pressure (PSI) 15 25 50...

AccuSenseTM Model ASM ORDERING INFORMATION Code all blocks in table. A S M 1 Example: Part No. ASM1050PG2M1103A00 for an ASM Transducer 0 to 50 PSI, Gauge, 1/4" NPT Male Pressure Fitting, 4 to 20 mA Output, 3 Feet of Cable, <±0.05% FS RSS <0.25% TEB, None, Standard SecureCalTM Calibration Key 6-Pin Bayonet Connector Assembly w/Strain Relief 159 Swanson Road, Boxborough, MA 01719/Tel: 978-263-1400; Toll Free: 800-257-3872; Fax: 978-264-0292; email: [email protected] SSP-ASM-Rev A 10/13/10 ORDERING INFORMATION Code all blocks in table. Example: Part No: SSC1VB3B03R00 for SecureCal Accessory, Voltage...
