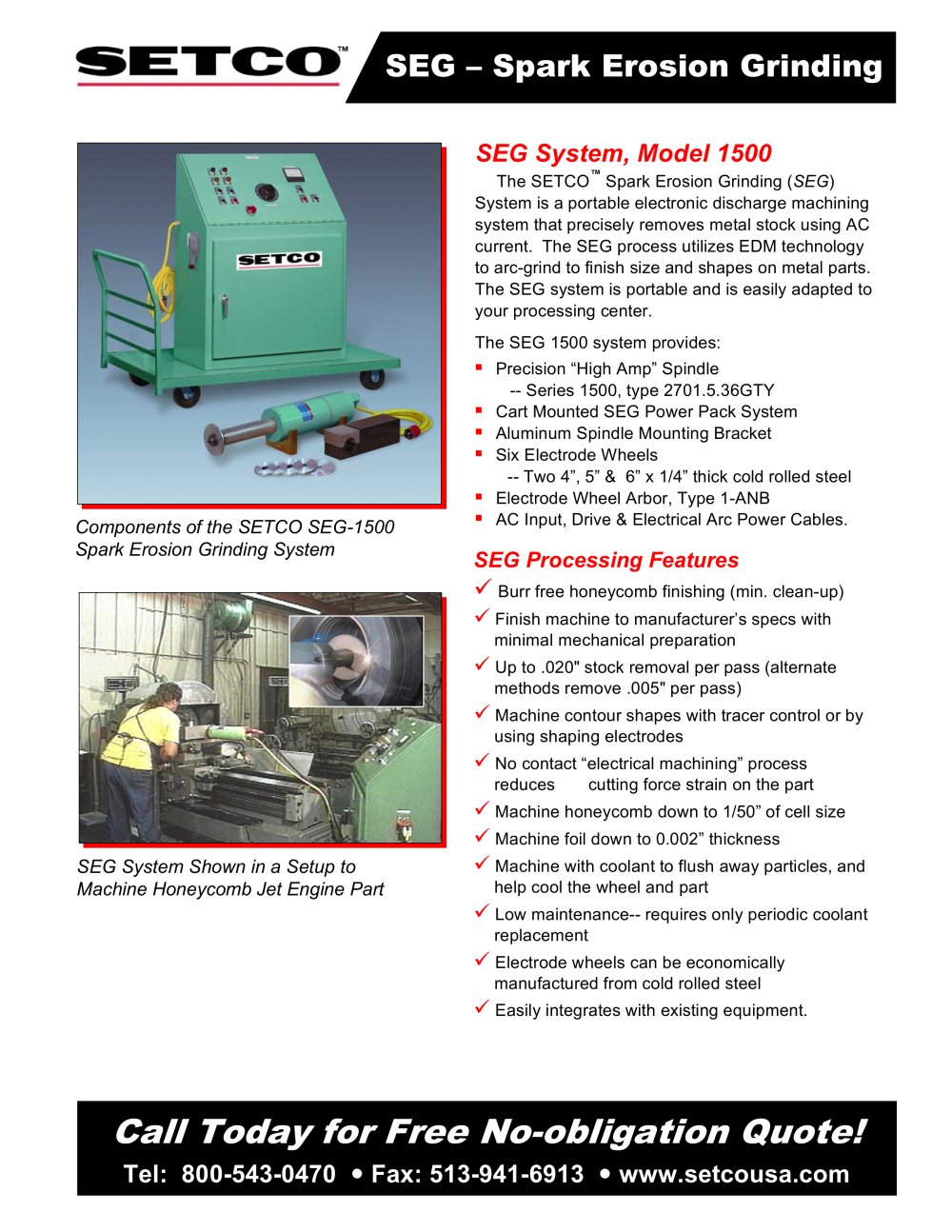

The SETCO > ֙ Spark Erosion Grinding ( SEG )System is a portable electronic discharge machining system that precisely removes metal stock using AC current. The SEG process utilizes EDM technology to arc-grind to finish size and shapes on metal parts. The SEG system is portable and is easily adapted to your processing center. The SEG 1500 system provides: Precision High AmpӔSpindle--Series 1500, type 2701.5.36GTY Cart Mounted SEG Power Pack System Aluminum Spindle Mounting Bracket Six Electrode Wheels--Two 4, 5Ԕ& 6x 1/4Ԕthick cold rolled steel Electrode Wheel Arbor, Type 1-ANB > AC Input, Drive & Electrical Arc Power Cables. > Burr free honeycomb finishing (min. clean-up) Finish machine to manufacturers specs with minimal mechanical preparation Up to .020" stock removal per pass (alternate methods remove .005" per pass) Machine contour shapes with tracer control or by using shaping electrodes No contact ғelectrical machiningprocess reduces cutting force strain on the part Machine honeycomb down to 1/50Ԕof cell size Machine foil down to 0.002thickness Machine with coolant to flush away particles, and help cool the wheel and part Low maintenance--requires only periodic coolant replacement Electrode wheels can be economically manufactured from cold rolled steel Easily integrates with existing equipment. >

3 ph, 60hz, 230V or 460 single voltage.Specify connection voltage on order.Special voltages available upon request. Input Power SEG AC Output Power 0 to 24 VACUp to 125 amps, Continuous170-200 amps, peak (3 sec max.) SETCO Model 2701.5-36GTYMotorized Gringing Spindle1-1/2 hp, 3600 rpm 12.1" Nose Barrel LengthTapered Arbor. Style 1 ANB Wheel Holder. SEG 1500 includes standardaluminum spindle mouting bracket. Spindle Honeycomb Metal StructureMachines foil down to .002"Machines down to 1/50" cell size Metal removal: .020" / pass approx. General Application Limits Cold Rolled Steel - 6...
