Setco - Sentry Spindles

Product catalog summary

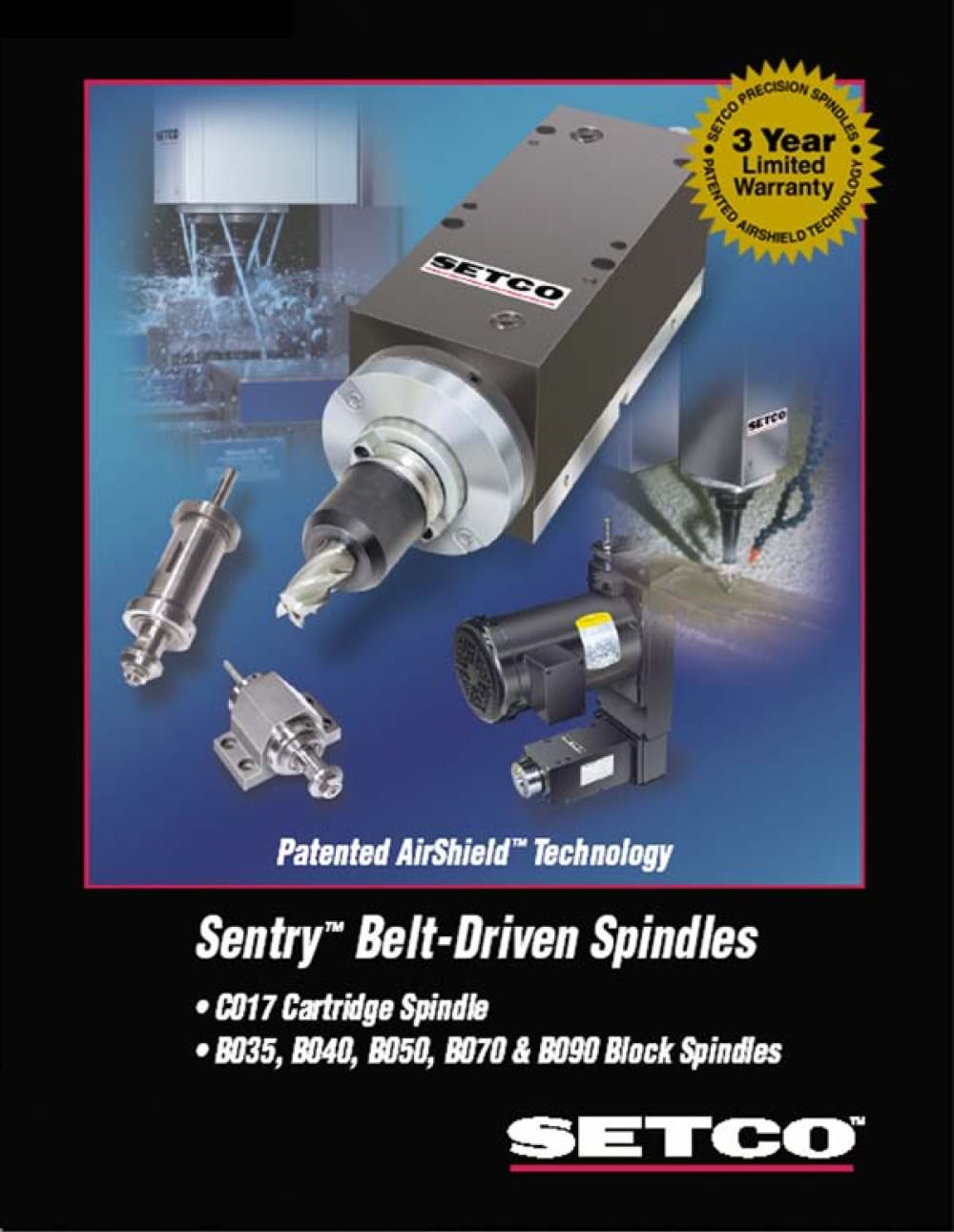

Overview: The document details SETCO's Sentry line of precision belt-driven spindles, designed for high performance and precision in various applications. These spindles are robust, featuring permanent grease lubrication and class 7 precision steel ball bearings for long-term, trouble-free performance.

Spindle Models: The Sentry line includes six models: one cartridge (C017) and five block configurations (B035, B040, B050, B070, B090). The C017 and B035 are the smallest, serving as replacements for specific Gilman models. Larger models feature the patented SETCO AirShield™ for enhanced protection.

Specifications: Each spindle model offers specific features and options, such as different motor drive packages, spindle nose types, and bearing arrangements. Technical data includes torque ratings, power per revolution, maximum RPM, and static stiffness values.

Ordering Information: A matrix helps specify the desired spindle and option package, including housing type, front bearing size, spindle nose type, and motor specifications.

AirShield Technology: AirShield-equipped spindles provide increased reliability, reduced maintenance, and protection from coolant ingress, with a standard 2-year warranty.

Spindle Sizing and Thrust Loads: Guidelines for selecting the appropriate spindle size based on power, speed, and tool overhang requirements are provided, along with thrust load charts and formulas for different bearing configurations.

Drive Packages: Two belt drive packages are described: Type 'A' for motors of 15, 20, and 25 hp, and Type 'B' with an integral belt guard and mounting bracket for 'C' face mounted motors.

Accessories: Accessories include rotating coolant unions and manual drawbars, allowing coolant flow through the spindle and manual retention of milling taper adapters.

Performance Metrics: Detailed performance metrics for each spindle model are provided, including static axial and radial stiffness, preload, and bearing configurations.

Additional Information: Contact information for SETCO Sales Company is included, along with notes on the availability of custom drive packages and the importance of specifying motor mounting positions when ordering.

Catalog excerpts

Note: Due to continual improvements, specifications are subject to change withoutnotice. For current specifications, request a certified print when placing your order. > թ2001 SETCO Sales Company.SETCO > , Sentry > TM , and AirShield > TM are trademarks of SETCO Sales Company. >

Open the catalog to page 2

N/AN/AXN/AN/A N/AXN/A Spindle Nose > Arbor (AR)Collet (CT)Straight Bore (ST) Boring (B) #30 NMTB Milling (M)#40 NMTB Milling (M)#50 NMTB Milling (M) > 1.5 hp = 01510 hp = 100(Block only) B = BlockC = Cartridge 1800 = 183600 = 36 (Block only) 035B 040B 050B > N/AN/AX N/AN/AXN/AN/A N/AXN/AX N/AN/AXN/AN/A N/AXN/AX C > 017 N/AXN/A BHousing Style/Seal Type XN/A N/A Cartridge with Labyrinth SealBlock with Labyrinth SealBlock with AirShield Front Bearing Arrangement Duplex (2)Triplex (3) Quad (4) X X XN/A N/A N/A N/AN/A N/AN/A XXN/A N/A XXN/A N/A N/AN/A N/AX N/AN/A N/A N/A N/AN/A N/A N/AN/A XN/A N/A...

Open the catalog to page 3

7.884.88SET SCREW FLAT2.622.12REF..12 SQ. KEY1.25.47.88.50.751.51.34.81 FLATSERICKSON COLLET NUT ASSEMBLY1" HEX. FOR 200DA SERIES COLLET COLLET RANGE 1/16 TO 3/8 DIA (COLLET NOT INCLUDED) 8.904.881.38 3/32 x 3/64KEYWAY.25 WIDE x .06DP. KEYWAY.50 x 20 RH.FLANGEDHEX NUT11/16 HEX. 1.751.10.82 .19MAX .50 TYP 3.38 > MIN 3.88 > MAX .37 2.44 TYP 踸1.50 1.25.12 SQ. KEY.47 > .5000 .4995 1.8745 1.8740 .88FLATS 踸.5000 .4995

Open the catalog to page 7

Dovetail SlidesLinear RecirculatingBearing Slides Spindle/SlideCombinations Hardened Steel Way Slides Sentry Belt-DrivenSpindlesProMetrix Belt-Driven Spindles Grinding Spindlesand AccessoriesBoring and MillingSpindles 3-Axis MachiningModules Smart Closed-LoopMotorized Spindles > Total Solution TeamEngineeringField Service andVibration AnalysisState-of-the-ArtSlide Repair Leading Edge Spindle Repair Complete In-HouseManufacturing, AssemblyHands-On Spindle andSlide Repair Training >

Open the catalog to page 16

Spindle Speeds to 34,000 RPM Drop-in Replacement for Gilman 1875 Precision 17mm Duplex Bearings For Single and Multiple Spindle Applications Permanent Grease Pack Lubrication Optional Spindle Mounting Brackets One Standard Design, Offered in Two Cartridge Configurations: Clamp-Style Positioning Nut Three Spindle Nose Options Plain Spindle Cartridge Arbor (.50Ԕdia) Positioning Nut Cartridge Straight Bore Use for Finishing Operations: Collet Nose Boring, Milling, Grinding, Sawing, Drilling, and Honing Delivery: 1-2 Weeks. Consult factory for Off-the-shelfӔshipment. Labyrinth Seal System 1 Year...

Open the catalog to page 17

Shown with ColletNose Shown with .500 Arbor Nose Straight Bore Nose > Collets Capacity: 1/8 to 3/8Ԕ Diameter. Arbor Mounting: .500 diameter. Note: For dimensions not shown, refer to the Plain Cartridge configuration. SENTRY C017 Specifications > Speed34,000 RPM MaximumTorque35 in-lbsPower/Revolution1/1800 HP/RevSpindle Nose OptionsArbor, Straight Bore, and Collet (1/8 to 3/8")Front Bearing ConfigurationDuplex Class 7, "DB" 17 x 35mm BallRear Bearing ConfigurationSingle Class 7, 17 x 35mm BallPreloadMediumStatic Axial Stiffness140,000 lbs/inStatic Radial Stiffness40,600 lbs/in Seal TypeLabyrinth...

Open the catalog to page 18
