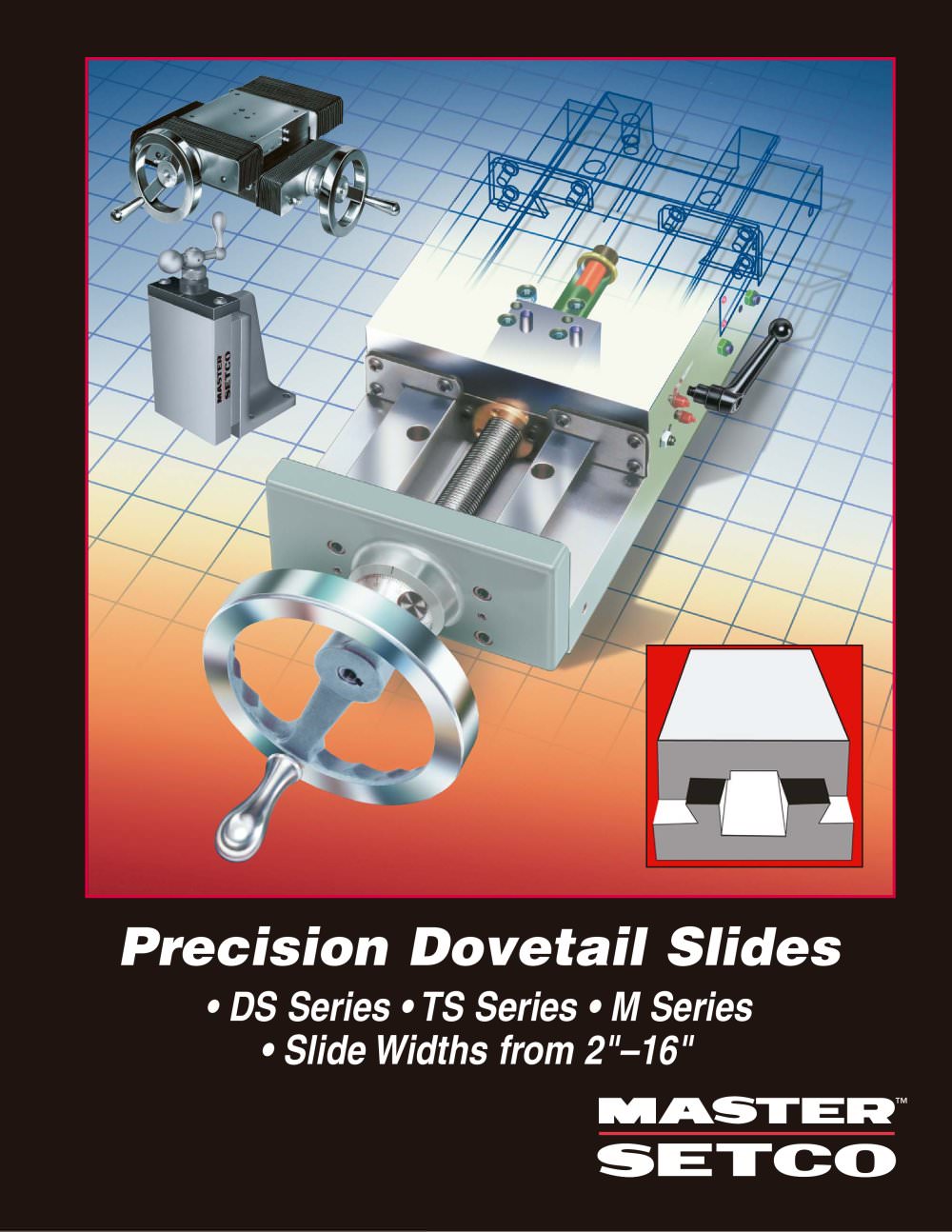

DS Series Օ TS Series M SeriesՕ Slide Widths from 2"16" >

One week shipment! The Express DS Slide Series is for applications wherecompact design and immediate delivery are essential. Available in the most popular sizes of 4", 6", 8", 10" or 12" base widths, they are factory assembled from off-the-shelf components and shipped to you ready to install. Shipment is within one week after order placement. For multiple quantities of slides, consult factory for delivery. > Express DS Basic Model Select DS Hand Feed Model With Feedscrew Direct Drive Gear Motor and Disengaging Handwheel mounted on opposite end for manual positioning Օ Wide range of sizes...

Standard Deep ֓ZOil Grooves in Underneath Side of Saddle is Ideal for Power Feed Standard Ԗ 10 Pitch Acme Feedscrew Standard Saddle Lock Standard ֖ BacklashAdjustment Nut Standard Way Wipers Express DS Hand Feed(Single Axis) Express DS Basic (No Hand Feed) >

HOW TO ORDER SLIDE SLIDE SERIESWIDTHBASE LENGTHSADDLE LENGTHTRAVELDRIVEACCESSORIES Accordion Way Covers (BE)Lubrication Force Feed (FFL) WSTB Acme Rolled Thread Feedscrew with Handwheel (FSI)Precision Ground Ballscrew (FGM)Air Cylinder Package (ASR)Hydraulic Cylinder Package (HSR) 1. Choose slide width (inches). 2. Choose saddle length (inches). > 3. Choose slide travel (inches). 4. Choose Basic or Hand Feed. > 1. Choose slide width (inches). 2. Choose saddle length (inches). 3. Choose slide travel (inches). 4. Choose Drive and Accessories. > Base Length equals the sum of steps 2 and 3 plus...

MODELDIMENSIONS IN INCHESWEIGHT (Lb.) BasicHand Feed B-BaseS-Saddle T-Travel C L N BasicFSI DS10-15-10-4-BDS10-15-10-4-FSI 15.0010.004.001.500 6.00 6 137.5160.0DS10-20-10-9-BDS10-20-10-9-FSI 20.0010.009.001.000 6.00 8 165.7189.0 >

MODELDIMENSIONS IN INCHESWEIGHT (Lb.) BasicHand Feed B-BaseS-Saddle T-Travel C L N BasicFSI DS12-24-12-11-BDS12-24-12-11-FSI 24.0012.0011.003.000 6.00 8 171300 >

Select DS Hand Feed Model With Acme Feedscrew Օ Three Week Shipment 100% Computer Designed Using 3D Modeling Օ Six Pre-engineered Base Widths: 4", 6", 8", 10", 12" or 16" Base Lengths in 1" Increments Up to 64" Maximum Օ Saddle Lengths in 1" Increments Up to 64" Maximum Precision Ground Top, Bottom and Way Bearing SurfacesՕ Cast Iron Base and Saddle Way Wipers Օ Deep ZӔ Oil Grooves Manual Lube Ports Օ Full-Length Steel Adjustment Gib Saddle Lock Օ Gib Adjustment Screws Base Mounting Holes Օ Drive Mounting Holes Product Lifting Holes Օ Product Service and Parts Manual > Handwheel and...

Semi-finished dimension weight.

(Model Code:FFL) The One Shot Force Feed Lubrication System is recommended when closely controlled, but infrequent, oil feed is required. This simple, economical system can be mounted to the slide assembly and includes a one pint reservoir, junction header, metering units, plus all piping and connections. > Slide SeriesW = Slide WidthS = Saddle LengthB = Base LengthT= TravelForced FeedLubrication DS Series and M Series slides (page 30) are standard with porting and oil grooving for acceptance of an automatic or manual lubrication system. Drawing ՑAshows MasterҒs Standard Z Oil Grooves...

Six Base Widths:4",6",8",10",12" or 16" Օ Base Lengths Available Up to 96" Saddle Lengths Available Up to 96" > Super Select DS Hand Feed Model with Customer Required T-Slots At-A-Glance,Super Select DS > Օ 100% Computer Designed Using 3D Modeling Slides Engineered Around Standard Baseline Product Օ Slides Easily Modified to Meet Your Application Requirements Custom Slide Solutions Reduce Leadtimes and Cost Premiums Օ One-Source Technical Slide Help from SETCO Solution Engineers Full Line of Commercial Slide Accessories Available Օ Six Base Widths: 4", 6", 8", 10", 12" or 16" Base Lengths...

SLIDE SERIESWIDTHBASE LENGTHSADDLE LENGTHTRAVELDRIVEACCESSORIES No Drive (B)Acme Rolled Thread Feedscrew with Handwheel (FSI) Right Angle Hand Feed (RAF) Ratchet Handle Hand Feed (RH) Precision Ground Ballscrew (FGM) Belt Drive Package (U) Direct Coupled Drive Package (M) Air Cylinder Packages (ASR) Hydraulic Cylinder Packages (HSR) Accordion Way Covers (BE) Metal Clad Protectors (H) Low-Friction Material (T) Force Feed Lubrication (FFL) Automatic Lubrication (A) Positive Stop (Q) Limit Switches (2) End Travel (E) > Servo Cylinder Drive (3) Travel < Saddle Length (F) > Air/Oil Tandem Feed...

The 2:1 belt drive package is available to adapt C-faceђmounted motors. This package allows the use of smaller, less torque, and more economical motors. The package consists of a 2:1 timing belt drive, combination motor mounting bracket/belt guard, and motor mounting plate for belt tensioning.Submit complete specifications on the motor application to assure proper selection and sizing of the motor drive package.Also available with other special timing belt ratios consult factory. Notes: 1.Requires ֓optional feedscrew or ballscrew design. 2.Since motor drives will vary per application,...

Single Speed Motor Drives are the most economical motor drives offered and can be used in positioning applications where accuracy is not critical. Drives are available in AC or DC, from fractional hp to 3 hp, and are typically direct coupled to the ballscrew or feedscrew. The drive can befurnished with a torque limiting coupling to preventoverload damage to the motor. Traverse rates from 0.005 to 600 ipm can be provided, with proper selection of a gear box and various gear ratios (for extremely low feed rates). > Variable Speed Motor Drives use the same motoras a Single Speed AC/DC Motor...

TӔ slotted worktable mountedto DS8 Compound Slide Assembly with Accordion Way Covers and Saddle Locks on both axes.DS8 Slide with groundthread ballscrew, accordion way covers, limit switches, proximity switch, and motor mounting bracket andstepping motor mounts toan angle plate. Entireassembly is mounted to a DS16 Slidewith accordioncovers, two saddle locks, and right angleattachment.Belt Driven Grinding Spindle with 3 HP֓C flange mounted motor. Mounted horizontal side wall to a DS10 Slide with Accordion Way Covers, Saddle Locks and Angle Plate mounted to a DS10 Slide with AccordionWay...
